Auto Meter 2242 Oil Pressure Sending Unit

SAME DAY SHIPPING! Order within the next 2 hours 41 minutes and receive same day shipping

Specs
Material Type:
Steel
Sold in Quantity:
Each
Finish:
Zinc
Thread Pitch:
1/8" NPT and 1/4" NPT adapter.
MFG. Part #:
2242
Garage Sale:
No
Gauge Range:
100 PSI
Notes
Sensor, Oil Pressure, 0-100psi, 1/8" NPT Male, for Short Sweep Elec.

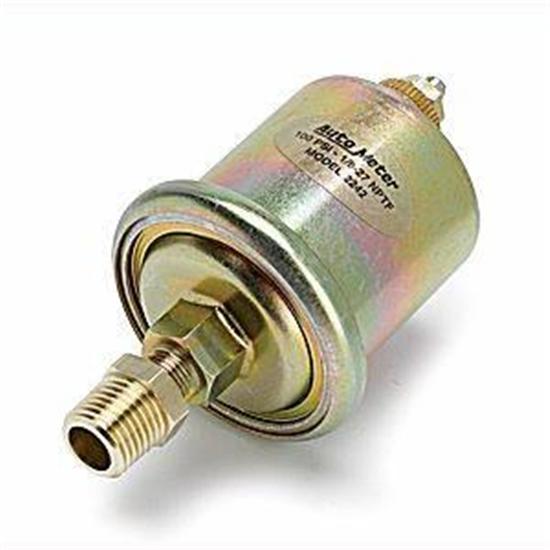

Auto Meter 2242 Oil Pressure Sending Unit

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Auto Meter sending unit for 100 psi oil pressure gauge.  For use with Short Sweep Electric Oil Pressure Gauges. 1/8" NPT Male Thread. Includes 1/4" NPT Adapter fitting.

Customer Reviews

Rated 4.5 out of 5 by 2 reviewers.
RATING BREAKDOWN
2 reviews
5 Stars
1
4 Stars
1
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

ernie5
Verified Purchaser
Bakersfield, CA, USA
Product Rating

easy to install

March 23, 2015
Instructions were right on and easy to follow. Use a small pan to catch the dripping oil.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

8315allen
Verified Purchaser
Scottsville NY
Product Rating

works well

February 05, 2012
did just what was expected.
Pros:
  • Easy To Use
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1
1822242

Product Q&A

2 questions : 2 answers

1 answers

Gauge Pegging Out I finally got around to installing my oil pressure sending unit and hooking up the oil pressure gauge (designer black) all new and the gauge went straight to pegging out at max. Im using the same ground and ignition as my other gauges which are working. Would this be a gauge or sending unit problem?

Jesse2135
San Antonio, Texas
July 23, 2014

Gauge Pegging Out I finally got around to installing my oil pressure sending unit and hooking up the oil pressure gauge (designer black) all new and the gauge went straight to pegging out at max. Im using the same ground and ignition as my other gauges which are working. Would this be a gauge or sending unit problem?

Answers

July 23, 2014
EricM
If the gauge and sender are wired up correctly then there may be an issue with the sender or the gauge. Verify that you have it wired correctly. Here is a copy of the instructions: http://static.speedwaymotors.com/pdf/182-1427.pdf
1 answers

I just ordered a electric oil pressure gauge to replace my mechanical one. There is not space to install the sending unit into the block. Can it be mounted remotely and use the tubing that is currently in the block that went to the mechanical gauge and ho

October 20, 2011

I just ordered a electric oil pressure gauge to replace my mechanical one. There is not space to install the sending unit into the block. Can it be mounted remotely and use the tubing that is currently in the block that went to the mechanical gauge and ho

Answers

October 21, 2011
John
Part # 1822242 In limited space applications it may be possible to plumb a line from the port to the electric sender. Size drop to the line and then to the sender will not net an accurate pressure reading at the gauge but you will be able to verify oil pressure. This is a grounding type sender so if you run plastic line it will NOT function. On some engines there is more than one place to pick up an oil pressure reading. By the distributor or on the oil filter housing are a couple of options.
Page 1 of 1
