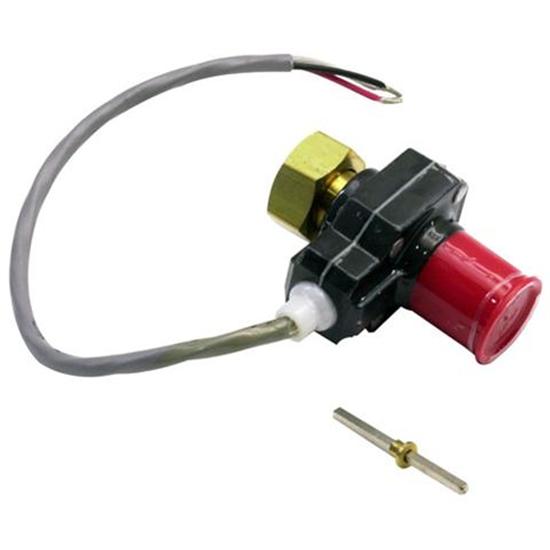

Auto Meter 5291 Hall Effect Speedometer Sender for GM/Chrysler Trans

Specs
Sold in Quantity:
Each
MFG. Part #:
5291
Garage Sale:
No
Notes
Mechanical to electric speed sensor.
Auto Meter 5291 Hall Effect Speedometer Sender for GM/Chrysler Trans
Auto Meter 5291 Hall Effect Speedometer Sender for GM/Chrysler Trans
Auto Meter 5291 Hall Effect Speedometer Sender for GM/Chrysler Trans

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Mechanical to electric speed sensor for use with all Auto Meter electronic speedometers.

7/8" - 18THD, Hall Effect sender, 16 pulse per rev. Includes pass-thru drive for cruise control. Adapts most GM and Chrysler transmissions with speedometer cable output to work with Auto Meter Electric Speedometers.

Electric Speedometer Sending Unit Installation Instructions (PDF)

Customer Reviews

Rated 5 out of 5 by 2 reviewers.
RATING BREAKDOWN
2 reviews
5 Stars
2
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

R8fink

Easy as 123

September 20, 2013
Super easy install and works as it is supposed to what more could you ask for.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Abaachii
Verified Purchaser
Lynnwood, WA

Works as described

December 14, 2010
I ordered this product to go with an AutoMeter electric speedometer.The directions with this unit dovetailed with the directions that came with the speedometer which made installation a snap.
Pros:
  • Directions easy to follow
  • A snap to install
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

8 questions : 8 answers

1 answers

willt this unit work with a vdo elec. spedometer 700r4 trans.

VNVED
Louisiana, USA
November 22, 2013

willt this unit work with a vdo elec. spedometer 700r4 trans.

Answers

November 25, 2013
EricM
This sender puts out 16 pulses per revolution and is a square wave signal. You will need to make sure that your VDO speedometer is compatible with this type of signal.
1 answers

will this work with a stock GM speedometer??

lisa8803
March 09, 2013

will this work with a stock GM speedometer??

Answers

March 12, 2013
Jason
This pulse sender for the aftermarket Auto Meter speedometers number and sends out 16 pulse per revolution. You would need to verify your speedometer requires 16 pulse per revolution and is electronic to confirm that it will work. This is referred to as a Hall Effect sender for match up to your speedo needs.
1 answers

will this fit with a 1980 buick 350 trans, if not what part # do I need?

stevescearce
winston salem nc
January 17, 2013

will this fit with a 1980 buick 350 trans, if not what part # do I need?

Answers

January 17, 2013
Jason
This sender will fit the GM transmissions that had the standard speedometer cable drive. This has 7/8 x 18 thread and the square tip drive matching up to the stock speedo cable drive and should work on your Buick 350 transmission. It will mate up to the Auto Meter gauges and other aftermarket gauges with the same PPM rating.
1 answers

Does this pulse Generator have the provisions for a manual cable on the side with the red cap?

Will
Hillsboro,Oregon
September 21, 2012

Does this pulse Generator have the provisions for a manual cable on the side with the red cap?

Answers

September 21, 2012
Zach
Yes, the red cap can be removed and a cruise control cable can be driven by the sensor.
1 answers

will this work with 700r4 trans

August 15, 2011

will this work with 700r4 trans

Answers

August 16, 2011
John
This sender for the electronic speedometers works on GM transmissions originally utilizing a mechanical cable drive speedometer or sender. It attaches in place of the mechanical cable to supply the pulse necessary for the electronic speedometers. If you do not have a transmission equipped with a cable drive male threaded boss and instead have wires coming out of the transmission they may be all that is necessary to supply the necessary signal. For hook up to an existing pulse sender you may want to visit the gauge manufacturers website or call direct for assistance.
1 answers

Does it fit with a TH400 and a Cable-X box?

Europe
May 25, 2011

Does it fit with a TH400 and a Cable-X box?

Answers

June 02, 2011
John
This is the Auto Meter pulse sender drive for their electronic speedometers. It does have the pass through for hookup to the cruise control if so equipped. Some of the applications had the speedometer cable and the cruise cable go into a junction box before the transmission hook up and in this case the cables would both screw onto the pulse sender. Threads for the transmission hook up is 7/8 x 18. If there are other applications in question you may want to contact Auto Meter direct.
1 answers

will this fit the GM LH-400 transmission in a 1982 Jag xjs?

roger
old town, fl
March 31, 2011

will this fit the GM LH-400 transmission in a 1982 Jag xjs?

Answers

April 04, 2011
Clark
If the transmission has a spot to attach a speedometer cable (that is the same as a Chevy) this sender should work just fine.
1 answers

Will this adaptor fit a late S-10 Chevy T-5 trans with electric speedo and will it work with the Auto Meter electric speedo? Which speedo? Thanks

Oregon City, OR
January 05, 2012

Will this adaptor fit a late S-10 Chevy T-5 trans with electric speedo and will it work with the Auto Meter electric speedo? Which speedo? Thanks

Answers

January 10, 2012
John
Part number 1825291 This sender is for transmissions that have the cable drive outlet for the mechanical speedometer. If you already have an electronic sender or pulse generator in your transmission those leads should work for hook up to an Auto Meter electronic speedometer and be programmed to read correctly. If your trans does have the cable drive boss that accepts the 7/8” female portion of this sender then it should directly hook up and function properly with any electronic Auto Meter Speedo.
Page 1 of 1
