Auto Meter 1403 Gauge Kit, Designer Black Quad

SAME DAY SHIPPING! Order within the next 11 hours 46 minutes and receive same day shipping

Specs
Color:
Black
Sold in Quantity:
Set
Overall Diameter:
4.90
Gauge Type:
Electric
Lighted:
Yes
Depth:
3.68
Bezel Finish:
Chrome
Liquid Filled:
No
Gauge Face:
Black
Body Diameter:
4.58
MFG. Part #:
1403
Lettering Color:
White
Needle Color:
Orange
Auxiliary Gauge Diameter:
5.00
Garage Sale:
No
Notes
Includes all sending units as well as red and green light bulb covers.

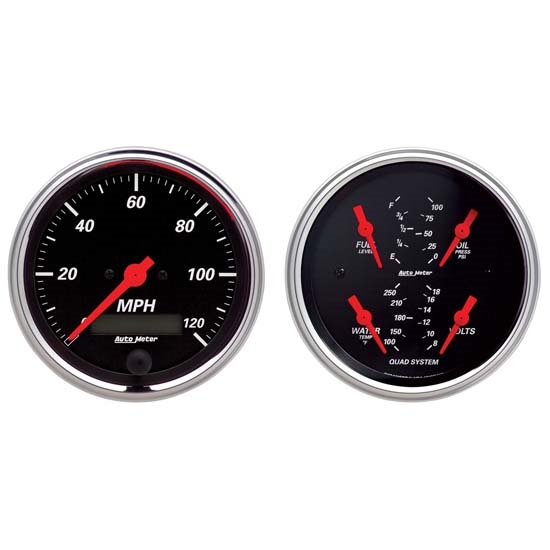

Auto Meter 1403 Gauge Kit, Designer Black Quad
Auto Meter 1403 Gauge Kit, Designer Black Quad

Click image to enlarge

Watch the video below for instructions on how to properly calibrate your Auto Meter Electric Speedometer.

Speeday Motors Logo
X
Auto Meter 1403 Gauge Kit, Designer Black Quad

Please NOTE the following about this product:

  • This item is sold as a set.

Details

Reviews

Q & A

What's in the Box

When you’re ready to install instrumentation in your high-performance vehicle, don’t settle for slow and inaccurate factory equipment. Auto Meter's Designer Black Series Gauge Kit features their famous high performance movements and is designed for a seamless dashboard mount for the ultimate driver information center. These 5" Designer Black Series Quad Gauges feature chrome bezels and the programmable speedometer allows you to compensate for tire size and gear ratio with a push of a button.

  • Advanced 90 degree air core movements
  • Programmable speedometer can compensate for tire size and gear ratio at the push of a button
  • Electric sending units keep hazardous fluids in the engine compartment
  • Sends collected data via an electrical signal to quick reacting, precise air core movements
  • Gives you all the information that you need and nothing that you don’t
  • Gauges fit in a 4-5/8" hole
  • Trim ring O.D. is 4-15/16"
  • Range: 100 PSI / 100-250 deg. F / 8-18 Volts / 240ΩE/33ΩF
Includes:
  • 1/8" NPT Sender
  • 1/4" NPT adapter/fitting
  • 3/8" NPT adapter/fitting
  • 1/2" NPT adapter/fitting

Gauge set includes all senders (see Notes tab).

5" Electric Quad Gauge Installation Instructions (PDF)

Notes

  1. Includes a speedo sender for GM transmissions (7/8"x18 THD) as well as senders for water temp, oil pressure, and fuel level (LH swing).
  2. Gauges illuminate via incandescent bulbs and around-the-dial lighting.
  3. Red and green bulb covers are included for a custom look.
  4. All Designer Black series gauges come with a domed lens.

Features


Specs


You may also be interested in:

Auto Meter 1303 Arctic White Quad Gauges


When you’re ready to install instrumentation in your high-performance vehicle, don’t settle for slow and inaccurate factory equipment. Auto Meter's Arctic White Series features their famous high performance movements and is designed for a seamless dashboard mount for the ultimate driver information center. These 5" Quad Gauges feature chrome bezels with domed lenses, and the programmable speedometer allows you to compensate for tire size and gear ratio with a push of a button.

  • Advanced 90 degree air core movements
  • Programmable speedometer can compensate for tire size and gear ratio at the push of a button
  • Electric sending units keep hazardous fluids in the engine compartment
  • Sends collected data via an electrical signal to quick reacting, precise air core movements
  • Gives you all the information that you need and nothing that you don’t
  • Range: 100 PSI / 100-250 deg. F / 8-18 Volts / 240ΩE/33ΩF
  • Gauges fit in a 4-5/8" hole
Gauge Set Includes
  • Includes 1/8" NPT Sender
  • Includes 1/4" NPT adapter/fitting
  • Includes 3/8" NPT adapter/fitting
  • Includes 1/2" NPT adapter/fitting

Gauge set includes all senders (see Notes tab).

Electric Quad Gauges Installation Instructions (PDF)

Auto Meter 1103 MCX 5 Inch Gauges


Auto Meter's MCX gauges have a bold, unique look that is perfect for cars wanting to flaunt their muscle. One 5" gauge houses the speedometer and tach, while the other has the oil pressure, water temperature, fuel level and volt meter. These are LED-lit electric gauges that include senders.



  • Range: 8kRPM/120 MPH/100 PSI/100-250 deg. F/8-18 Volts/240ΩE-33ΩF



GPS Speedometer Sending Unit

  • The latest in electronic speedometer senders
  • Simple 4-wire hookup
  • Completely sealed
  • GPS triangulation gives true ground speed
  • No calibration necessary
  • For 8 or 16 pulse
  • Must be mounted face up
  • Clear view of sky is best unit can be mounted under dash/hood
  • Must have minimum of 3" clearance between top of unit and steel

Instructions (PDF)

Auto Meter 5289 GPS Sending Module-Universal for Electric Speedometers


This unit allows nearly any electric speedometer to use free GPS signals to drive the speedometer. No more cables, no more calibration drives. If you've got an Auto Meter electronic speedometer, it's a plug and play solution. Calibration on non-Auto Meter speedometers takes about 10 seconds and doesn't require driving. The Module uses the fastest possible GPS technology for truly seamless functionality.

  • Lightning fast 10Hz Signal
  • Separate paintable 1" square antenna with optional magnetic attachment capability
  • Waterproof antenna and module assembly (IP67 sealed)
  • Factory calibrated for 16,000 pulses per mile
  • One touch calibration
  • Compatible with Electronic Speedometers Only
Classic Instruments SN81 Sky Drive GPS Speedometer Sensors w/Cruise
                        With the push of a button, these Classic  Instruments Sky Drive GPS speedometer sensors can program your vehicle's  speedometer from the convenience of your garage to read in miles per  hour, kilometers per hour, or knots. They feature an omnidirectional  antenna that gives you added mounting choices! They are designed to work  with any Classic Instruments or other manufacturer's speedometer. The  Classic Instruments Sky Drive GPS speedometer sensors include two  additional wires, giving you additional features and benefits. One wire  gives you an extra speed signal for cruise control, and another wire can  activate a relay or light which does a variety of things, such as  locking your doors or turning on a warning light at a predetermined  speed.
  • Uses GPS triangulation to calculate speed
  • Works with all electronic speedometers
  • Cruise control capability built in
  • Relay trigger wire built-in for additional features such as speed timed door locks or speed indicator lights

Learn more about SkyDrive GPS by reading Rod & Custom Magazine's tech article; Classic Instruments SkyDrive Speedometer.
Classic Instruments SN74 Electric Speedometer Calibration Module


With only two touches you can quickly and accurately program your speedometer.   Classic Instruments SN74 installs in-line between the transmission pulse signal or ECM speed output and your electronic speedometer.  The SN74 converts all known pulse signals, including pulse sendors that replace mechanical speedo cables on early transmissions, factory VSS (vehicle speed sensor), and the computer (ECM) output signals to 16,000 ppm or 8,000 ppm signals.  It also includes an additional 8,000 ppm output signal for your cruise control.  Real-time calibration feature allows total fine tuning.  The filtered power source eliminates interference.  This compact module works with most all aftermarket electronic speedometers and the module can be mounted anywhere inside your vehicle.

Instructions (PDF)

Fuel Gauge Interface Module
                        Fuel level gauges are designed to work with  specific sending units that vary from one automobile or gauge  manufacturer to another. Some increase resistance from Empty to Full,  while others decrease as the level goes up. For a builder updating their  vehicle with new gauges, this presents a problem in that the  aftermarket gauges must match the sending unit located in the tank. This  module will allow you to use your stock sender with any fuel gauge. You  no longer have to remove the tank to add a separate sending unit or  modify the sending unit that comes with a aftermarket gauge set.
  • Simply wires in-line between your gauge and existing sender
  • Allows you to use your stock sender with any fuel gauge
  • No need to remove the tank to add a separate sending unit

Learn more about selecting the proper fuel sending unit by reading our tech article, Fuel Sending Units
Auto Meter 5292 Ford Electronic Speedometer Sending Unit


Auto Meter Ford Electronic Speedometer Sending Unit

Electric Speedometer 3-Wire Sender Installation Instructions (PDF)



Auto Meter 5291 GM Electric Speedometer Sending Unit


Mechanical to electric speed sensor for use with all Auto Meter electronic speedometers.

7/8" - 18THD, Hall Effect sender, 16 pulse per rev. Includes pass-thru drive for cruise control. Adapts most GM and Chrysler transmissions with speedometer cable output to work with Auto Meter Electric Speedometers.

Electric Speedometer Sending Unit Installation Instructions (PDF)
