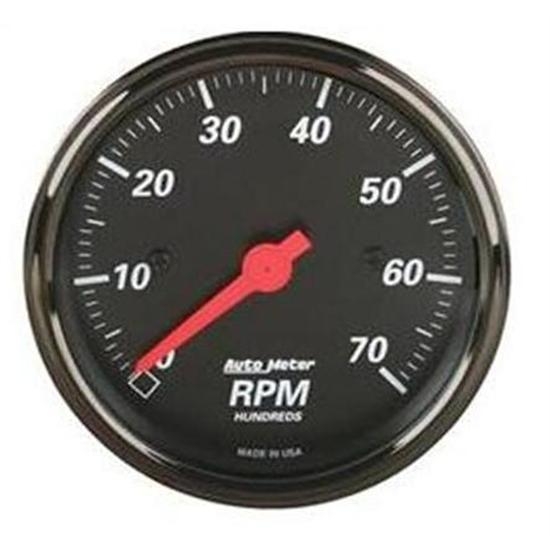

Auto Meter 1498 Designer Black Air-Core In-Dash Tachometer Gauge

Specs
Sold in Quantity:
Each
Overall Diameter:
3.30
Gauge Type:
Electric
Stud Length:
1.00
Stud Diameter:
.16
Lighted:
Yes
Depth:
2.68
Bezel Finish:
Nickel
Liquid Filled:
No
Gauge Face:
Black
Body Length:
1.66
Body Diameter:
3.13
MFG. Part #:
1498
RPM Range:
0-7000 RPM gauge range.
Lettering Color:
White
Needle Color:
Fluorescent Red
Garage Sale:
No
Light Color:
White Incandescent
Lighting Type:
Incandescent
Includes Mounting Bracket(s):
Yes
Includes Bulb and Socket:
Yes
Includes Light Covers :
Yes
Bezel Style:
Street Rod
Notes
Includes red and green light bulb covers.
Auto Meter 1498 Designer Black Air-Core In-Dash Tachometer Gauge
Auto Meter 1498 Designer Black Air-Core In-Dash Tachometer Gauge
Auto Meter 1498 Designer Black Air-Core In-Dash Tachometer Gauge
Auto Meter 1498 Designer Black Air-Core In-Dash Tachometer Gauge

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

When you’re ready to put the best instrumentation available in your vehicle, don’t settle for slow and inaccurate factory equipment. These Designer Black Series in-dash tachs feature their famous high performance movements and are designed with seamless dashboard mount in mind for the ultimate driver information center.

Operates on 4, 6, or 8 cylinder engines with points, electronic, and most 12V high performance racing ignitions. Features a vintage-style domed lens and a black bezel.

3-1/8" Electric Tachometer Installation Instructions (PDF)

Notes

  1. Gauge illuminates via an incandescent bulb and "around the dial" lighting. Red and green bulb covers are included for a custom look.
  2. Auto Meter Tach Wiring Guide (GIF)

Item Details

3-1/8" diameter
