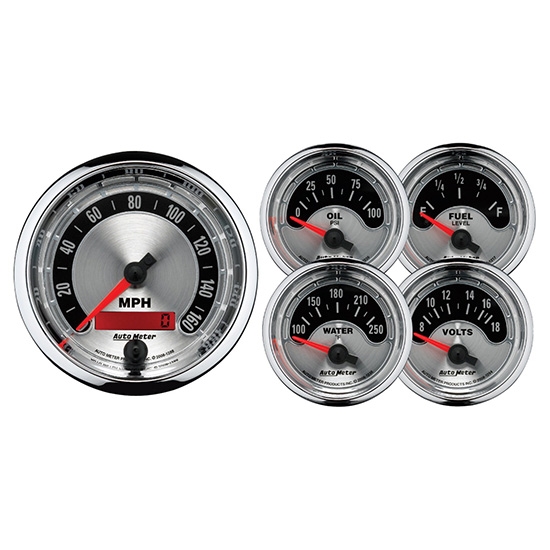

Auto Meter 1202 American Muscle 5 Piece Gauge Kit

Free Shipping Free Shipping
Specs
Sold in Quantity:
Kit
Gauge Type:
Electric
Lighted:
Yes
Depth:
2.88
Bezel Finish:
Chrome
Liquid Filled:
No
Gauge Face:
Silver
MFG. Part #:
1202
Lettering Color:
White
Needle Color:
Fluorescent Red
Speedometer Diameter:
3.38
Auxiliary Gauge Diameter:
2.00
Garage Sale:
No
Gauge Range:
120 MPH/100 PSI/100-250 °F/8-18V/240OE-33OF
Light Color:
White
Sending Unit:
Y
Lighting Type:
LED
Includes Mounting Bracket(s):
Yes
Bezel Style:
Super Bezel
Included Adapter/Fitting:
3/8" NPT and 1/2" NPT adapter fittings
Notes
Includes all sending units. Oil pressure, Water temperature, Fuel level, Voltmeter, and Speedometer.
Auto Meter 1202 American Muscle 5 Piece Gauge Kit
Product Video
Auto Meter 1202 American Muscle 5 Piece Gauge Kit

Click image to enlarge

Watch the video below for instructions on how to properly calibrate your Auto Meter Electric Speedometer.

Please NOTE the following about this product:

  • This item is sold as a set.

Details

Reviews

Q & A

What's in the Box

Auto Meter has hit a home run with their new American Muscle gauge kit. The distinctive look features LED illumination, glowing red pointers, chrome bezel and spun aluminum dials. The five gauge set includes a 3-3/8" electric speedometer and 2-1/16" water, oil, volt and fuel gauges.

  • Gauge Ranges: 160 MPH / 100 PSI / 100-250 deg. F / 8-18 Volts / 240ΩE-33ΩF
  • Tach (sold separately) operates on 4, 6, or 8 cylinder engines with points, electronic, and most 12V high performance racing ignitions

Includes all sending units.

In-Dash Gauge Installation Instructions (PDF)

Specs


Customer Reviews

Rated 5 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Chevelle69
Hayward, CA, USA

Look great in any muscle car

September 19, 2013
I bought a set of these for my Chevelle. Good instructions, all hardware included and these look fantastic. Nice and heavy, not some cheap plastic junk and they work really well. They are very easy to read at night. The red indicator arm lights up and the LED backlighting makes reading at a glance very easy on the eyes.
Pros:
  • easy to install-- good instructions
  • Accurate
  • Excellent quality
  • great lighting
Cons:
  • price a bit higher
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

0 questions : 0 answers

No questions have been asked.
