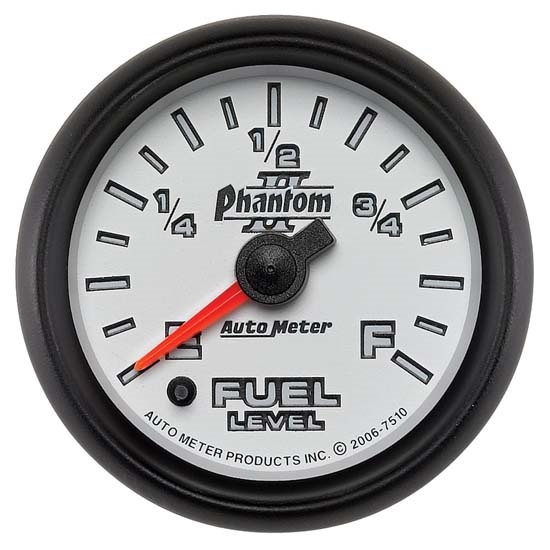

Auto Meter 7510 Phantom II Digital Stepper Motor Fuel Level Gauge

Free Shipping Free Shipping
Specs
Sold in Quantity:
Each
Gauge Type:
Electric
Gauge Face:
White
Bezel Finish:
Black
Lighting Type:
LED
Needle Color:
Fluorescent Red
MFG. Part #:
7510
Gauge Range:
Empty/Full
Light Color:
White
Bezel Style:
Super Bezel
Includes Wire Harness:
Yes
Includes Mounting Bracket(s):
Yes
Overall Diameter:
2-1/16"
GTIN Code:
046074075100
Notes
Gauge, Fuel Level, 2 1/16", 0OE to 90OF, Elec, Phantom II
Auto Meter 7510 Phantom II Digital Stepper Motor Fuel Level Gauge

Click image to enlarge

Please note the following about this product:

  • Ground Shipping Only - Can't Ship Air.

Details

Reviews (0)

Q & A (0)

What's in the Box

Rebate

Auto Meter's Hot Rod Holiday promotion is here! For a limited time, receive up to $250 back on your Auto Meter purchase. For more information click here

From Oct 15, 2016 to Dec 31, 2016

Info

Traditionally, paring the proper fuel level level gauge to the application could be a more difficult task than it needed to be. The Auto Meter Digital Stepper Motor Fuel Level Gauge drastically simplifies the process with it's easily configurable resistance range. With 7 common configurations stored in memory from the factory, the vast majority of all applications are covered. In the instance your fuel level sender is not included in these preconfigured ranges, an innovative custom calibration mode allows any sending unit that operates between 0 and 280 ohms, empty or full, to be easily paired. Our "snapshot" programming method will allow you to capture the empty and full readings and the gauge does the rest. No matter your application, there simply isn't an easier solution for fuel level monitoring available on the market. A direct plug in wiring harness is included for ease of installation.
  • Features Hi-Def through-the-dial white LED lighting
  • Includes 20ft. Wiring Harness.
  • Adjustable Scale w/ 7 preset ranges for common vehicle types
  • Programmable anywhere between 0-280 ohms
  • Includes gauge mounting hardware and installation instructions
  • Full sweep precision digital stepper motor meter movement

Installation Instructions (PDF)
