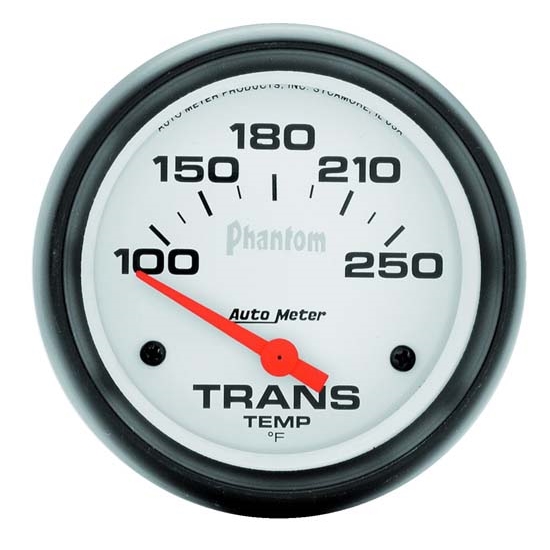

Auto Meter 5857 Phantom Air-Core Transmission Temp Gauge, 2-5/8 Inch

Specs
Sold in Quantity:
Each
Gauge Face:
White
Bezel Finish:
Black
Lighting Type:
Incandescent
Needle Color:
Fluorescent Red
MFG. Part #:
5857
Gauge Range:
100-250° F
Sending Unit Included:
Yes
Includes Mounting Bracket(s):
Yes
Overall Diameter:
2-5/8
GTIN Code:
046074058578
Auto Meter 5857 Phantom Air-Core Transmission Temp Gauge, 2-5/8 Inch

Click image to enlarge

Please note the following about this product:

  • Ground Shipping Only - Can't Ship Air.

Details

Reviews (0)

Q & A (0)

What's in the Box

Rebate

For a limited time, get up to $250 on select on AutoMeter products. For more information click here.

From May 1, 2017 to Jul 31, 2017

Info

Transmission fluid temperature is the single biggest contributing factor to the lifespan of your automatic transmission. Having an accurate, realtime measurement allows you to know when to downshift or when to take your foot out of it. Whether you're towing or simply trying to harness the power of a built or boosted motor, Auto Meter's Trans Temp Gauge will give you the most accurate possible measurement for the exact temp of your trans fluid. A single wire 1/8" NPT temperature sender included to be installed in your transmission, transmission pan or with an optional transmission cooler line manifold is available for easy installation into a transmission cooler hard line.
  • Includes bulb and socket assembly with red and green bulb covers
  • Includes 1/8" NPT Sender and 3/8" NPT and 1/2" NPT adapter/fittings
  • Features Air-Core meter movement
  • Includes gauge mounting hardware and installation instructions

Installation Instructions (PDF)
