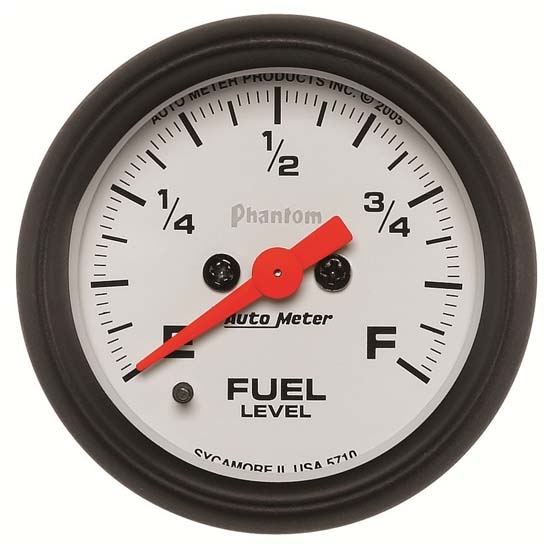

Auto Meter 5710 Phantom Digital Stepper Motor Fuel Level Gauge
Click image to enlarge
Please note the following about this product:
- Ground Shipping Only - Can't Ship Air.
Q & A (0)
What's in the Box
InfoTraditionally, paring the proper fuel level level gauge to the application could be a more difficult task than it needed to be. The Auto Meter Digital Stepper Motor Fuel Level Gauge drastically simplifies the process with it's easily configurable resistance range. With 7 common configurations stored in memory from the factory, the vast majority of all applications are covered. In the instance your fuel level sender is not included in these preconfigured ranges, an innovative custom calibration mode allows any sending unit that operates between 0 and 280 ohms, empty or full, to be easily paired. Our "snapshot" programming method will allow you to capture the empty and full readings and the gauge does the rest. No matter your application, there simply isn't an easier solution for fuel level monitoring available on the market. A direct plug in wiring harness is included for ease of installation.
- Includes bulb and socket assembly with red and green bulb covers
- Includes 20ft. Wiring Harness.
- Adjustable Scale w/ 7 preset ranges for common vehicle types
- Programmable anywhere between 0-280 ohms
- Includes gauge mounting hardware and installation instructions
- Full sweep precision digital stepper motor meter movement
