Auto Meter 4315 Ultra-Lite Air-Core Fuel Level Gauge, 2-1/16 Inch

Specs
Sold in Quantity:
Each
Lettering Color:
Black
Gauge Face:
Silver
Gauge Sweep:
Short Sweep
Lighting Type:
Incandescent
Bezel Finish:
Brushed Aluminum
Needle Color:
Fluorescent Red
Ohm Range:
73 Ohms empty, 8-12 Ohms full.
MFG. Part #:
4315
Gauge Range:
E - F
Light Color:
White Incandescent
Bezel Style:
Super Bezel
Lighted:
Yes
Includes Mounting Bracket(s):
Yes
Includes Bulb and Socket:
Yes
Includes Light Covers :
Yes
Overall Diameter:
2.06
GTIN Code:
046074043154
Notes
Gauge, Fuel Level, 2 1/16", 73OE to 10OF, Elec, Ultra-Lite

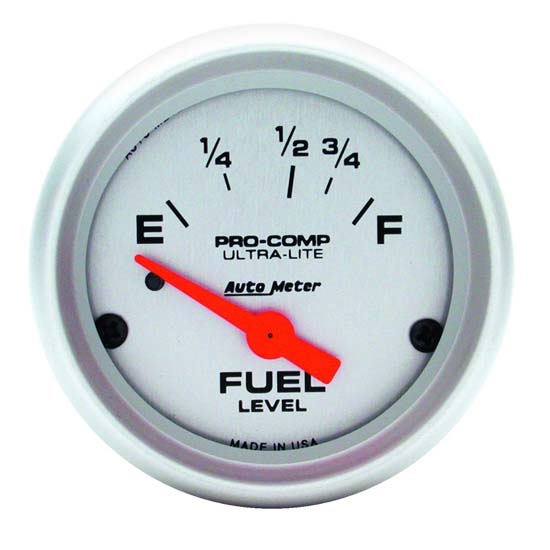

Auto Meter 4315 Ultra-Lite Air-Core Fuel Level Gauge, 2-1/16 Inch

Click image to enlarge

Details

Reviews (0)

Q & A (0)

What's in the Box

Rebate

For a limited time, get up to $250 on select on AutoMeter products. For more information click here.

From May 1, 2017 to Jul 31, 2017

Info

One of the most necessary gauges in a dashboard, Auto Meter makes it easy by offering 5 different resistance range configuration to match your existing fuel sending unit. Available in 0-90 ohm (GM mid 60's to mid 90's), 0-30 ohm (early GM), 73-10 ohm (pre 90's Ford and Chrysler), 16-158 ohm (later model Fords) and 240-33 ohm (aftermarket senders such as the Auto Meter 3262). Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks.
  • Includes bulb and socket assembly with red and green bulb covers
  • Works with most Pre-1989 (Pre-1987 Mustang) Ford and most Chrysler
  • Features Air-Core meter movement
  • Includes gauge mounting hardware and installation instructions

Installation Instructions (PDF)
