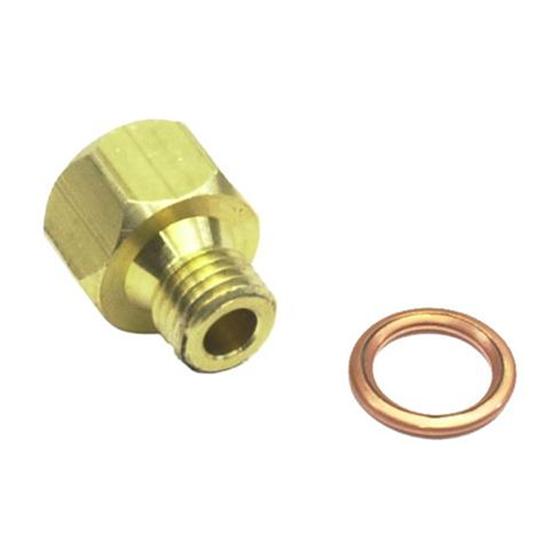

Auto Meter 2277 Temperature Sender Adapter Fitting, 1/8 NPT-M12x1.5

Material Type:
Overall Length:
Sold in Quantity:
Thread Pitch:
MM12-1.5 male
MFG. Part #:
Thread Pitch (2):
1/8" NPT
Includes copper crush washer.
Auto Meter 2277 Temperature Sender Adapter Fitting, 1/8 NPT-M12x1.5
Auto Meter 2277 Temperature Sender Adapter Fitting, 1/8 NPT-M12x1.5
Auto Meter 2277 Temperature Sender Adapter Fitting, 1/8 NPT-M12x1.5
Auto Meter 2277 Temperature Sender Adapter Fitting, 1/8 NPT-M12x1.5

Click image to enlarge



Q & A

What's in the Box

This LS Series water temperature sender fitting allows your aftermarket 1/8" NPT water temperature sending unit to be installed in your passenger side cylinder head.

Note: I.D. of this adapter where the sender probe will go through is .309 and would require drilling to approximately 5/16" or .312 for a Stewart Warner sender to pass through.


This adapter works with all LS Series motors:

  • LS1
  • LS2
  • LS3
  • LS6
  • LS7

Item Details

12mm-1.5 Male to 1/8" Female
