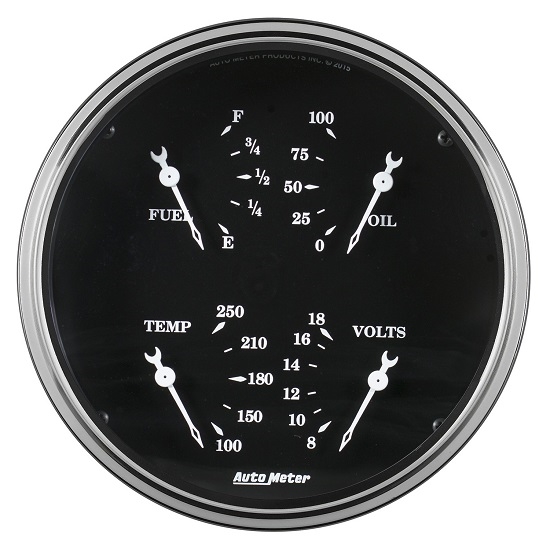

Auto Meter 1719 Old Tyme Black, 5" Quad Gauge
- This item ships directly from the manufacturer. It may take an additional 5 business days for Auto Meter to ship this item.
- This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Sometimes space is limited. The Auto Meter Quad Gauge provides a solution to limited dashboard space while providing a clean look. Individual Auto Meter air core meter movements for each function provide the accuracy and durability required by even the most demanding applications. Includes a single wire 1/8” NPT temperature sender and a 1/8” NPT oil pressure sender. The voltmeter reads from 8-18v on negative ground electrical systems and fuel level resistance range is 0 ohms empty to 90 ohms full (compatible with Amid 60’s through mid 90’s GM fuel level senders).
- Includes bulb and socket assembly with red and green bulb covers
- Traditional incandescent lighting illuminates around the perimeter of the dial
- 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
- Auto Meter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
Gauge kit includes 1/8” NPT pressure sender, 1/4” NPT adapter, 1/8” NPT temperature sender, 3/8” and 1/2-1/16" NPT adapters, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
