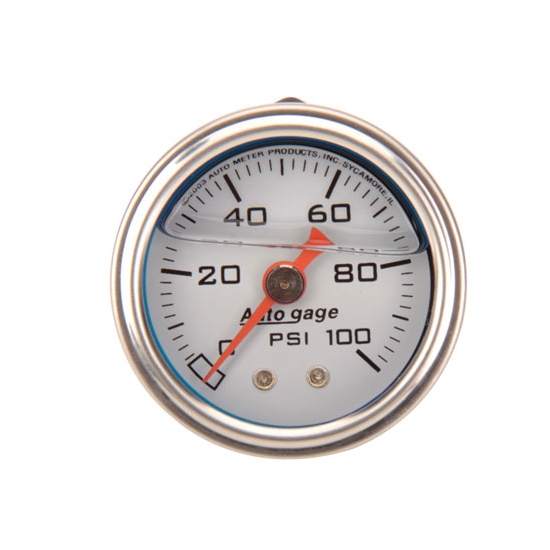

Auto Meter 2177 Auto Gage Mechanical Pressure Gauge, 1-1/2 Inch, 0-100

SAME DAY SHIPPING! Most orders ship within 24 hours.

Specs
Sold in Quantity:
Each
Gauge Type:
Mechanical
Bezel Finish:
Stainless
Gauge Face:
White
Lettering Color:
Black
Needle Color:
Orange
Thread Pitch:
1/8" NPT
MFG. Part #:
2177
Gauge Range:
0-100 PSI gauge range.
Lighted:
No
Garage Sale:
No
Overall Diameter:
1.80
Body Length:
.92
Body Diameter:
1.60
Notes
Gauge, Pressure, 1.5" direct mnt, 100psi, Liquid Filled Mech, Wht, 1/8" NPTF Male
Auto Meter 2177 Auto Gage Mechanical Pressure Gauge, 1-1/2 Inch, 0-100
Auto Meter 2177 Auto Gage Mechanical Pressure Gauge, 1-1/2 Inch, 0-100
Auto Meter 2177 Auto Gage Mechanical Pressure Gauge, 1-1/2 Inch, 0-100
Auto Meter 2177 Auto Gage Mechanical Pressure Gauge, 1-1/2 Inch, 0-100

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

These 1-1/2" rugged hi-vibration pressure gauges are made to mount directly on the engine to read fuel or oil pressure. Built tough to take it. 1/8" NPT male thread.

1-1/2" Pressure Gauge Installation Instructions (PDF)

Customer Reviews

Rated 4.5 out of 5 by 2 reviewers.
RATING BREAKDOWN
2 reviews
5 Stars
1
4 Stars
1
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Turbo Rob
Verified Purchaser
Bellevue NE

So far so good!

September 24, 2015
The first fuel pressure guage I purchased was from a different parts distributor. And to be honest I have no clue as to who actually manufactured it? Needless to say it failed within a few months. The plug on the side of the guage where the special oil goes In during manufacturing simply came out. The oil drained out into a puddle on my intake manifold. But what's evendors worse is it started leaking fuel right through the guage and out that same hole! Not good with a super hot Turbo just on other side of valve cover. I was lucky to not have an engine fire!? My tuner and engine builder guy suggested the "Auto Meter" brand and said he had used them for many years and on many engine builds with no issues. I have now had the guage on the car for approximately one month now with no problems. One thing I would like to point out on this new meter is that they put a strong black rubber band or sleeve around the guage which goes right over the plug that seals the hole where the oil goes into the guage. Obviously it's extra insurance by the manufacturer to ensure the plug does not come out. I already have more confidence in this guage based on that alone. Seems to be of much higher quality than the off brand one that failed on me. Like I said so far so good.
Pros:
  • Easy To Install And Easy
Cons:
  • None so far
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

ed
Verified Purchaser
Denver, Co

nice product

May 21, 2011
well made, accurate and a good value
Pros:
  • Easy To Install
  • Provides Accurate Readings
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

0 questions : 0 answers

No questions have been asked.
