Assembly Stand for 9 Inch Ford Differential

SAME DAY SHIPPING! Order within the next 3 hours 42 minutes and receive same day shipping

Specs
Material Type:
Steel
Sold in Quantity:
Each
Finish:
Zinc
Tube O.D.:
1.00
Material Thickness:
.09
Upper Mount O.D.:
2.00
Notes
Bolt hole dimension measured across the front is 10-5/16". From extended centerline from top bolt holes down to the single bolt hole is 6-5/8".

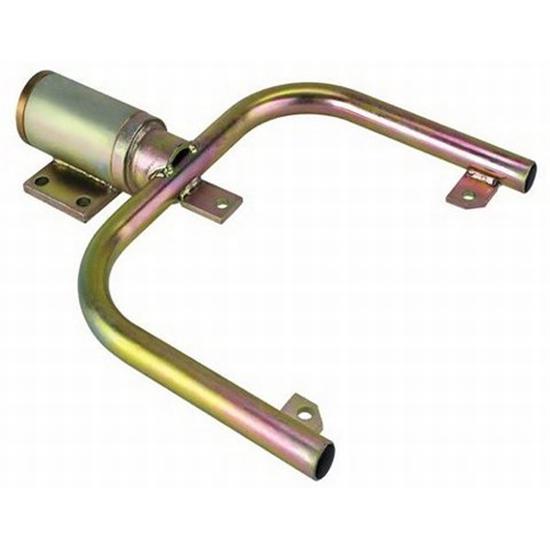

Assembly Stand for 9 Inch Ford Differential
Assembly Stand for 9 Inch Ford Differential
Assembly Stand for 9 Inch Ford Differential

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Mount this assembly stand to your work bench (or engine stand) and stop wrestling with the third member every time you need to replace a gear set or spool. Saves you time and energy!  Rotates 360° for total access to your assembly.

Customer Reviews

Rated 4.4 out of 5 by 15 reviewers.
RATING BREAKDOWN
15 reviews
5 Stars
9
4 Stars
4
3 Stars
1
2 Stars
1
1 Star
0
RECOMMEND THIS PRODUCT:

KowboyKustoms13
Verified Purchaser
Minnesota, USA

Did not fit correctly

April 04, 2015
The arms are very strong and fit the third member nearly perfectly, the down side is that it did not fit correctly into either of the engine stands I have as advertised. I had to cut and modify one of my engine stands to make it work correctly. On a positive note this does provide the perfect holder and extra set of hands when working on this heavy and akward part.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

racerguy99
Illinois

Works fine, minor details only

February 22, 2014
If you mount the third member from the "outside", you'll need to grind the corner of the center tab. The side tabs were notched already. If you mount it from the "inside" I just had to grind a small corner of the side tab. I mounted mine to my bench. If you plan on using your engine stand, be aware that there are no holes in the thing, to pin it in position... Real nice though, for the price! Don't know where it's made...
Pros:
  • Value
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Jeeper
Verified Purchaser
Colorado

Ford 9 in assembly stand

November 23, 2013
Well built sturdy frame and the bolt holes lined up perfectly. This makes working on a 9 inch so much easier.
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

Arty
Verified Purchaser
Maine, USA

Good solid fixture

February 10, 2013
The tabs did not line up perfectly but some short work with a slightly larger bit fixed it up quickly. With out a doubt, it makes the job easier.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Petew
Verified Purchaser
Mebane, NC, USA

Very well made for the price

February 10, 2013
Better than I expected for what I paid. Also adapted it to hold other rear ends. Highly recommended.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

wdsracer
spencerport,ny

Great product

July 17, 2012
The fixture makes working on Ford 9" 3rd members easy. The holes line up fine, just turn the 3rd member 180 if they don't line up.
Pros:
  • Easy To Use
  • Durable
  • Versatile
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Chip O
Verified Purchaser
Harrisburg, N.C.

Great Tool & Value

April 10, 2012
This a great tool at a great price. Its made for Ford carriers but can be easily adapted to others. It saves time and helps to achieve perfection in setup!
Pros:
  • Durable
  • Versatile
  • Time Saving
  • Easy To Use
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

julian c.
Verified Purchaser
hollister,ca

makes gear swaps a lot better

March 27, 2012
perfect fit,no modification need.
Pros:
  • Durable
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

KB in LV
Verified Purchaser
Kansas

Exactly what I needed

February 03, 2012
It's a huge benefit to work on both sids of the unit with a simple spin.
Pros:
  • Easy To Use
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

cw
Verified Purchaser
stearns ky

works perfect !

October 17, 2011
works well on a 9in ford
Pros:
  • Easy To Use
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 2

Product Q&A

2 questions : 2 answers

1 answers

On Item #: 91081005 ASSEMBLY STAND FOR 9" FORD DIFFERENTIAL how do you keep it from rotating? Are there holes and you insert a pin just as on an engine stad? What keeps the tool in the bench mount and not pulling out? I cannot figure this out by the pictu

Fairlaniac
Denver, PA
June 27, 2011

On Item #: 91081005 ASSEMBLY STAND FOR 9" FORD DIFFERENTIAL how do you keep it from rotating? Are there holes and you insert a pin just as on an engine stad? What keeps the tool in the bench mount and not pulling out? I cannot figure this out by the pictu

Answers

June 28, 2011
Jason
There is a bolt that you tighten down once in desired position that holds in place. Tool has a bracket so you can bolt to bench or you can mount in a vise.
1 answers

Will this tool also work for an 8 inch ford dropout?

claybob
seattle
July 12, 2015

Will this tool also work for an 8 inch ford dropout?

Answers

July 13, 2015
Zach
Expert
The bolt pattern is smaller, so I do not believe it will work.
