American Autowire 510002 70 Amp Relay Kit

American Autowire 510002 70 Amp Relay Kit

Click image to enlarge

Details

Reviews (7)

Q & A (3)

What's in the Box

Info

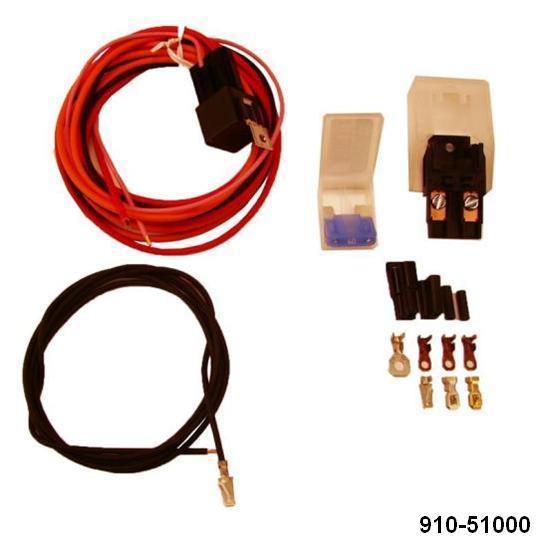

This relay kit includes everything you need to power that big electric fan the right way. Includes a 96” 10-gauge load wire, 72” signal and feed wires, 60 amp MAXI fuse, holder, terminals and detailed instruction sheet.

70 AMP Relay Kit Wiring Instructions (PDF)

Customer Reviews

Rated 5 out of 5 by 7 reviewers.
RATING BREAKDOWN
7 reviews
5 Stars
7
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Fuelly Cat
Verified Purchaser
olympia wa

ThrRight relay for the 2500cfm electric fan.

June 04, 2016
The parts are here earlier than expected.
Full Size Image

Was this review helpful? 0 0

diggie J
Verified Purchaser
Amarillo, Texas

wireing instructions where enclosed. No problems at all..

March 01, 2016
Service help on ordering is a major plus
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Mike
Verified Purchaser
Verified Reviewer
Creedmoor, NC

Complete kit

October 19, 2015
This fan relay is nicely designed with in-line fusing and connectorized cabling. It installed easily and is working fine.
Pros:
  • High Current Capacity
  • all parts included
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

cvb65
Verified Purchaser
California, USA, USA

Very useful kit

March 03, 2015
The wiring kit was excellent. Great instructions, and plenty of wire to put the components where you want them
Pros:
  • Plenty of wire
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

DaveB
Verified Purchaser
Indianapolis, IN, USA

Good Wiring Harness

September 29, 2014
The wiring harness came with high quality components and made hooking up the fan a breeze.
Pros:
  • Quality Components
  • Good instructions
Cons:
  • did not come with a temperature sensor
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Billc
Verified Purchaser
Salt Lake City, Utah

Great products.

September 07, 2014
I have used American products on the my last three builds and have never been disappointed with quality of design of connectors or ease of use. Instructions and online help when you need it.
Pros:
  • help with my probelms have been spot on each time.
Cons:
  • none.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Ron
Verified Purchaser
Bartlett (Memphis), TN

Highly recommend

August 15, 2011
Installed on 1939 pro street chevy cooling fan works excellent. Running cool in the summer heat...
Pros:
  • Easy To Install
  • Improves Performance
  • Connection is a breeze
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

3 questions : 3 answers

1 answers

So it's 70amps? but it comes with a 60amp fuse? I'm looking to use this for a Aeromotive Pro Pump. We need something that's rated at 70 amps as continuous duty. We improvised with a starter relay but it has been a little temperamental with continuous duty.

ILMike
IL
March 18, 2013

So it's 70amps? but it comes with a 60amp fuse? I'm looking to use this for a Aeromotive Pro Pump. We need something that's rated at 70 amps as continuous duty. We improvised with a starter relay but it has been a little temperamental with continuous duty.

Answers

March 19, 2013
Jason
A relay rated at 70 amps takes a 70 amp load on initial start up to protect a lighter capacity fuse. The fuse is generally rated at the just over running capacity of a motor, solenoid, or any current drawing device. If you have a continuous draw motor at 70 amps the start up will be higher than the 70 amp and probably limiting and over loading a 70 amp relay. You will need to size the relay over the running draw by at least 10 amps and then the fuse would be at just over the continuous duty. With this high of current draw the wire size will also be important. You may want to contact Aeromotive for the suggested relay and fuse rating and a Maxi fues or circuit breaker with auto reset would be recommended
1 answers

You say that it comes with .... but you do not mention that it comes with a 70 amp relay switch, does it or do I have to buy this in addition to the kit?

DOC
Mobile AL
September 17, 2012

You say that it comes with .... but you do not mention that it comes with a 70 amp relay switch, does it or do I have to buy this in addition to the kit?

Answers

September 17, 2012
Eric
This kit includes a 70 amp relay. It does not include a switch. Your switch can be a low load switch such as a toggle switch or standard key ignition switch. This relay will take all the load from the fan.
1 answers

Can an adjustable thermostatic switch be installed and if so, what part number is compatible? Without a thermostatic switch, at what temperature does this relay turn the fan on?

Joe
Bluffton/Hilton Head, SC
June 28, 2016

Can an adjustable thermostatic switch be installed and if so, what part number is compatible? Without a thermostatic switch, at what temperature does this relay turn the fan on?

Answers

June 28, 2016
Eric
Expert
Yes, this relay is commonly used with a thermostatic switch such as 910-64026. If you do not use a thermostatic switch then the relay can be operated by a toggle switch or by the ignition switch if you want the electric fan to run constantly.
