Canadian Leaf

Aluminum Torsion Bar Bushing, .120 x 1-1/8 Inch

SAME DAY SHIPPING! Most orders ship within 24 hours.

Specs
Material Type:
Aluminum
Overall Length:
1.50
Sold in Quantity:
Each
Inside Diameter:
1.13
Outside Diameter:
1.265
Flange Diameter:
1.50
Flange Thickness:
.135
Garage Sale:
No
Notes
Fits 1-1/8" torsion bars with .120" wall.

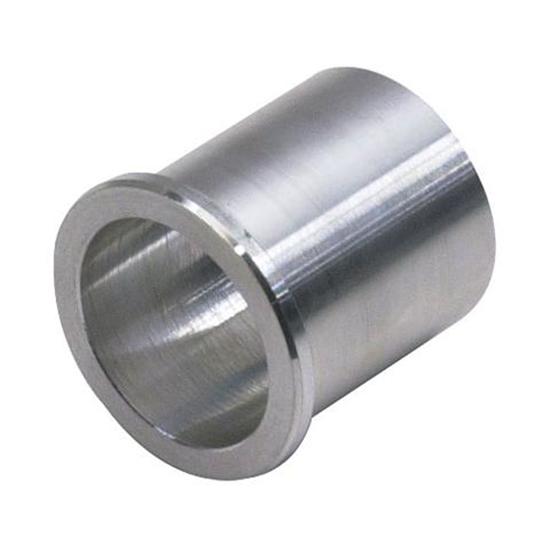

Aluminum Torsion Bar Bushing, .120 x 1-1/8 Inch
Aluminum Torsion Bar Bushing, .120 x 1-1/8 Inch

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

These bushings are .120" aluminum constructed. They are designed to keep the lube in and dirt out.

  • Aluminum bushing for 1-1/8" x .120 wall torsion tube
  • Overall Length: 1.50"
  • Inside Diameter: 1.13"
  • Outside Diameter: 1.265"
  • Flange Diameter: 1.50"
  • Flange Thickness: .135"
  • Sold Individually
