Aluminum Small Body Coilover Shocks, 5 Inch Plain, Spring Rate 115 lbs

Free Shipping Free Shipping
Specs
Material Type:
Steel
Sold in Quantity:
Kit
Finish:
Chrome
Shock Body Material:
Aluminum
Coil-Over Compatible:
Yes
Shaft Diameter:
.50
Inside Diameter:
2.625
Extended Length:
15.50
Compressed Length:
10.50
Bushing Length:
1.48
Body Diameter:
1.63
Spring Rate:
115

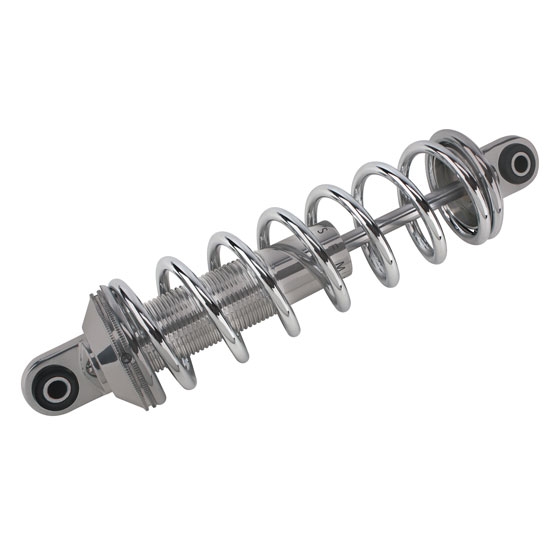

Aluminum Small Body Coilover Shocks, 5 Inch Plain, Spring Rate 115 lbs

Click image to enlarge

Please note the following about this product:

  • This item is sold as a kit.

Details

Reviews (1)

Q & A (4)

What's in the Box

Info

Pro shocks new aluminum small body coilover shocks are 3-way adjustable. They are fitted a with 2-5/8" chrome spring and aluminum coilover kit and make one of the cleanest coil overs on the market for your street rod. Each shock features urethane mounting bushings with both 1/2" and 5/8" mounting coilover sleeves.

Suggested Installed Height:  13-1/4” to 13-1/2”

Adjustment Instructions (GIF)

Item Details

Comp. Length - 10.5", Ext. Length - 15.5"
Spring Rate 10"-115 lbs, 1/2 Car Weight - 950 lbs

Customer Reviews

Rated 5 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

numbnuts
Verified Purchaser
Verified Reviewer
New Zealand

Coilovers

May 05, 2016
Excellent quality, installed on a 23 T-bucket, I found the 115lb spring rate to be a bit soft but that was my fault for not researching better what I needed.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

4 questions : 5 answers

1 answers

Does the adjustment feature adjust the compression or the rebound or both?

Sean
Houston, TX
September 27, 2011

Does the adjustment feature adjust the compression or the rebound or both?

Answers

September 29, 2011
Jason
Yes, this adjust both compression and rebound
2 answers

IS 2 1/2" THE ID OR OD OF THE SPRING.

January 09, 2011

IS 2 1/2" THE ID OR OD OF THE SPRING.

Answers

April 11, 2011
T-RODD
The 2 1/2 indicates the ID (inside diameter) of the spring.
January 12, 2011
Jeremy O
Hello, The 2-1/2" is the inside diameter of the spring.
1 answers

my question is can a pro 5" small body coil over kit item no.582500a spring rate 115lbs 1/2 car weight 950lbs be used on a t-buckett, also can a qa1 thrust bearing kit be used on this spring set up.

May 25, 2011

my question is can a pro 5" small body coil over kit item no.582500a spring rate 115lbs 1/2 car weight 950lbs be used on a t-buckett, also can a qa1 thrust bearing kit be used on this spring set up.

Answers

June 02, 2011
John
These Pro coil over shocks have a desired mount length of 13.1” and when all mounted and the weight on the shock ready to drive the adjuster rings should be about 1/4 to 1/3 up the threads to maintain the desired mount length. Spring rate of 115-140 is generally the range for the T-buckets as you need to allow for weight transfer during acceleration.
1 answers

I purchased these coilovers and they appeared to be too soft, but then I noticed the spring might not be the right length for this shock. In the picture it is the full length of the shock but the one I purchased has a 10" spring which is 2" short and has to be adjusted up a long way to start compressing the spring. What is the uncompressed length of the spring supposed to be?

Jeff
New Zealand
June 12, 2016

I purchased these coilovers and they appeared to be too soft, but then I noticed the spring might not be the right length for this shock. In the picture it is the full length of the shock but the one I purchased has a 10" spring which is 2" short and has to be adjusted up a long way to start compressing the spring. What is the uncompressed length of the spring supposed to be?

Answers

June 13, 2016
Zach
Expert
The free length of the spring is supposed to be 10". The photo is most likely a different length assembley used as a file photo from Pro Shocks. If you do have to light of spring weight the car, measure the angle of the assembly when installed, and the installed length and we can help pick the correct spring rate for your application.
