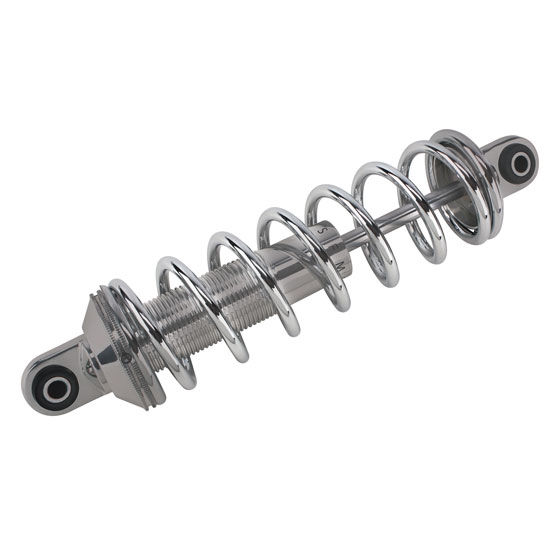

Aluminum Small Body Coilover Shocks - 5 Inch Plain, Spring Rate 140 lbs

SAME DAY SHIPPING! Most orders ship within 24 hours.

Specs
Material Type:
Steel
Sold in Quantity:
Kit
Finish:
Chrome
Shaft Diameter:
.50
Inside Diameter:
2.625
Extended Length:
15.50
Compressed Length:
10.50
Spring Rate:
140
Body Diameter:
1.63
Shock Body Material:
Aluminum
Coil-Over Compatible:
Yes
Garage Sale:
No
Aluminum Small Body Coilover Shocks - 5 Inch Plain, Spring Rate 140 lbs
Aluminum Small Body Coilover Shocks - 5 Inch Plain, Spring Rate 140 lbs

Click image to enlarge

Speeday Motors Logo
X
Aluminum Small Body Coilover Shocks - 5 Inch Plain, Spring Rate 140 lbs

Please NOTE the following about this product:

  • This item is sold as a kit.

Details

Reviews

Q & A

What's in the Box

Pro shocks new aluminum small body coil over shocks are 3-way adjustable. They are fitted a with 2-5/8" chrome spring and aluminum coil over kit and make one of the cleanest coil overs on the market for your street rod. Each shock features urethane mounting bushings with both 1/2" and 5/8" mounting sleeves.

Suggested Installed Height:  13-1/4” to 13-1/2”

Adjustment Instructions (GIF)

Item Details

Comp. Length - 10.5", Ext. Length - 15.5"
Spring Rate 10"-140 lbs, 1/2 Car Weight - 1000 lbs
