Aluminum RH Male Heim Joint Rod Ends, 1/4 Inch

Specs
Material Type:
Aluminum
Finish:
Anodized
Threads:
RH Male
Color:
Clear
Thread Pitch:
1/4"-28
Hole Diameter:
1.0000

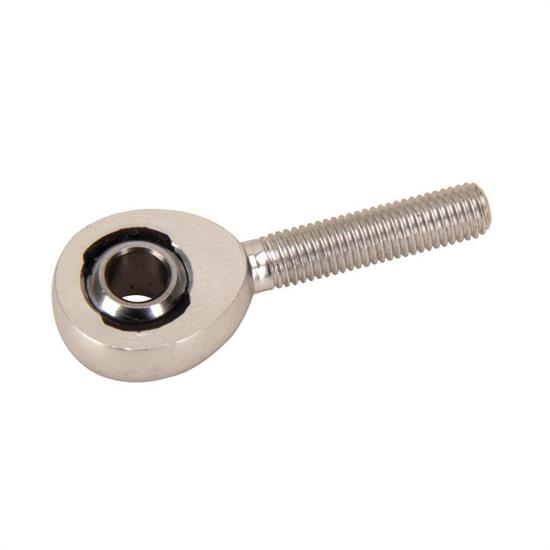

Aluminum RH Male Heim Joint Rod Ends, 1/4 Inch

Click image to enlarge

Details

Reviews (0)

Q & A (2)

What's in the Box

Info

Aluminum rod ends have close tolerance, 3 piece, medium duty rod end.  Hard anodized 7075-T6 aerospace quality aluminum body.  Heat treated, 5210 precision ground ball, Kevlar race.  Self lubricating Teflon liner to seal out dirt an debrisRH threads.

Applications: Designed for motorsports application where weight is critical.  All of the strength & features of the precision rod ends at half of the weight.

ASSEMBLY TIP:
  To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.

Customer Reviews

This product has no reviews.

Product Q&A

2 questions : 2 answers

1 answers

Exact Specifications I need to know what the thread is on these rods. Are they 1/4-28 or 1/4-20. Also, I need to know dimensions. How long is the threaded portion and what is the distance from the center of the ball to the end of the threaded portion as well as the start.

Nathan
September 10, 2013

Exact Specifications I need to know what the thread is on these rods. Are they 1/4-28 or 1/4-20. Also, I need to know dimensions. How long is the threaded portion and what is the distance from the center of the ball to the end of the threaded portion as well as the start.

Answers

September 10, 2013
Jason
This right hand aluminum heim has 1/4-28 thread pitch. The shank length is 1.00" and from center of ball to end is 1.562". The overall width is .75" and overall thickness is .375".
1 answers

Does this come as a pair?

MidwestJP
Midwest
November 19, 2015

Does this come as a pair?

Answers

November 20, 2015
Zach
Expert
These heims are sold individually
