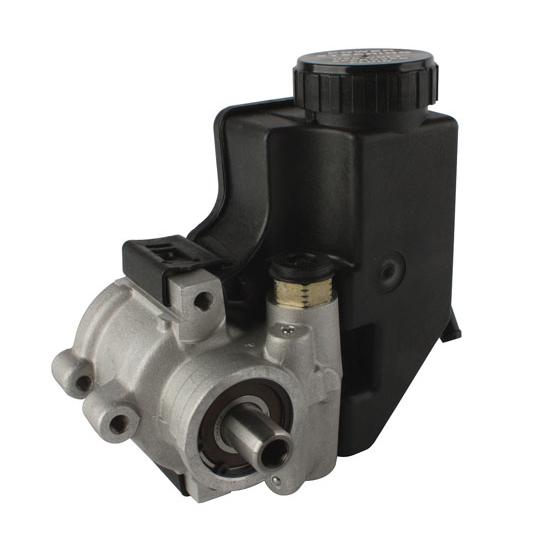

Aluminum Power Steering Pumps w/ Reservoir

Free Shipping Free Shipping
Specs
Material Type:
Aluminum
Sold in Quantity:
Each
Finish:
Natural
Outlet Fitting:
-
MFG. Part #:
-
Aluminum Power Steering Pumps w/ Reservoir
Aluminum Power Steering Pumps w/ Reservoir
Aluminum Power Steering Pumps w/ Reservoir

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

We offer these brand new lightweight aluminum power steering pumps with a reservoir. Available in either Ford (low flow) or GM (high flow) settings.

  • Ford - low flow for Mustang II power rack & pinion and Ford power steering
  • GM - high flow for T-Bird power rack & pinion and GM power steering
GM:
    * AN 6 pressure outlet
    * AN 6 return inlet
Ford:
    * 16mm 1.5 pressure outlet
    * Hose barb return inlet

Use this Polished V-Belt Pulley sold separately.

Item Details

GM - High Flow
FORD - Low Flow
1150psi

Customer Reviews

Rated 5 out of 5 by 2 reviewers.
RATING BREAKDOWN
2 reviews
5 Stars
2
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Hendo67
Verified Purchaser
Minnesota, USA

Great quality pump.

January 30, 2015
The pump and reservoir are quality components and work really well. My only complaint is the lack of pulley options from Speedway, but no fault on the pump.
Pros:
  • fairly common .664 inch shaft.
  • tank flush with pump body on back.
  • an fittings on the high flow model.
Cons:
  • return fitting epoxied in place.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Rick
Verified Purchaser
Taylorsville, N.C.

This product was exactly what I needed.

May 15, 2012
I am using it on a small block Chevy engine. It is easily mounted, and looks great!
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

8 questions : 9 answers

1 answers

what brackets will work with this pump? GM crate engine ZZ5 with a short water pump?

Gasoline48
September 12, 2014

what brackets will work with this pump? GM crate engine ZZ5 with a short water pump?

Answers

September 15, 2014
EricM
Here is a list of brackets for this pump. The block mount brackets will mount the pump low on the drivers side and the head mount brackets will mount it on the drivers side cylinder head. I have listed pulleys that work with this pump as well. Block mount: 91032905, 91032944, 46630012 Head mount: 91032904, 91032942, 46630000 Pulley: 91032909, 91032928
1 answers

Would this work with a hydro-boost unit? I was told my pump needs 1400 psi relief pressure and put out 2.2 to 3.5 gallons per minute in full flow to w

mitchl
March 16, 2014

Would this work with a hydro-boost unit? I was told my pump needs 1400 psi relief pressure and put out 2.2 to 3.5 gallons per minute in full flow to w

Answers

March 17, 2014
EricM
These pumps are 1150 psi. The GM version will be a higher flow rate but the exact gallon per minute is not specified. These pumps are not really designed to operate a hydro booster. They are made for operating power steering only.
1 answers

Does this unit require a short or long water pump?

mitchl
March 03, 2014

Does this unit require a short or long water pump?

Answers

March 03, 2014
EricM
All of the mounting brackets that I offer for this pump are for short water pump applications. Some customers will make spacers to use with a long water pump but I do not have setup that is directly intended for a long water pump.
1 answers

Is this a GM type 3 or 2?

NJRich
July 21, 2013

Is this a GM type 3 or 2?

Answers

July 23, 2013
Jason
Power steering pump number 91032922 is comparable to the GM type 2 pumps in aftermarket configuration and with 2 GPM for the Mustang II racks or 3 GPM for GM or the Thunderbird type racks used by Speedway on the IFS kits.
1 answers

what is the weight

paul
October 22, 2012

what is the weight

Answers

October 22, 2012
Jason
The weight of the Ford pump is approximately 1 pound. The GM pump is 1.4 pounds
1 answers

What is the fluid capacity for this pump? Also what is the fluid capacity for the 910-34340-POW 82-88 T-bird power rack? I have both of these items installed, now I want to purchase LE power steering fluid 910-44010. How much do I need to purchase?

Shopman
Seal Rock, OR
July 28, 2011

What is the fluid capacity for this pump? Also what is the fluid capacity for the 910-34340-POW 82-88 T-bird power rack? I have both of these items installed, now I want to purchase LE power steering fluid 910-44010. How much do I need to purchase?

Answers

July 29, 2011
John
Exact fluid capacities of the rack and pump reservoir have not been found. From past experience the size of the reservoir and fluid requirement of the rack should be satisfied by a quart of fluid and depending on the length of the lines for fluid consumption 2 quarts should satisfy the entire systems needs. If wanting an exact capacity for pump, rack, and per inch of line you may want to contact Maval direct to see if they have the available information.
2 answers

What is the shaft diameter? Is it .664" press-fit?

February 24, 2011

What is the shaft diameter? Is it .664" press-fit?

Answers

January 31, 2015
Hendo67
This is a .664" press fit shaft. The pulleys for it should have a .662" inside diameter.
March 09, 2011
Waymon
Thank you for your interest in our, Aluminum Power Steering Pump Item #: 91032922. The center hole I.D. is .659 or 11/16 inches. This is a press fit application.
1 answers

Is this a variable speed unit and would it work with the Flaming River must. II power rack and pinion.

essex jct. vt
January 08, 2011

Is this a variable speed unit and would it work with the Flaming River must. II power rack and pinion.

Answers

January 11, 2011
Ken
I am not quite sure what you mean by “variable speed unit”. The pump can be operated at various engine speeds (from idle through WOT-wide open throttle). This pump works well with T-Bird or Cougar style power racks used on most Mustang II front suspension conversions. That is the type of rack that Flaming River uses.
Page 1 of 1

You may also be interested in:

Gotta Show 131101 Mustang/T-Bird Rack & Pinion Power Steering Hose Kit
(Part #6174835)


These stainless steel braided power steering hose kits will connect 1984-88 T-Bird and 1979-93 Mustang racks to most Ford or GM style internal reservoir power steering pumps. The hoses provide a custom look without the need to buy any additional parts. This kit is designed for drivers side pumps and may require hoses to be trimmed to length.

The kit includes:

  • (2) 24" stainless steel braided hoses with 90° ends installed (rack end)
  • (1) Banjo bolt assembly for the pressure connection to the pump with 5/8" or 16mm threads
  • (1) Custom clamp cover for the return hose which connects to a hose nipple on the pump
  • Rack fittings in this kit are one each, 16mm or 5/8"-18, and one each, 14mm or 9/16"-18

617-4835 Instructions (PDF)

Low Flow Power Steering Pump for Mustang II & Ford
(Part #91032924)


These brand new aluminum remote reservoir power steering pumps are available in low flow for Mustang II power rack & pinion or Ford power steering. Same as GM Type II TC pumps.

The flow of this pump is two gallons per minute and is rated at 1,500 PSI.

Use pulley part #910-32928 sold separately.



High Flow Aluminum Power Steerng Pump for T-Bird & GM
(Part #91032927)


These brand new aluminum remote reservoir power steering pumps are a high flow type for use with 1982-88 T-Bird power rack & pinions or GM power steering. Same as GM Type II TC pumps.

  • The fitting at the inlet (suction) end of this pump is AN10 male
  • The fitting at the outlet (pressure) end is AN6 male
  • A 5/8"-18 banjo fitting can be used on this pump by removing the AN6 male fitting. The internal threads are 5/8"-18.
Use this Polished V-Belt Pulley sold separately.





Unisteer 8020630 Polished V-Belt Pulley for Aluminum Pumps
(Part #91032928)


Polished aluminum V-belt pulley for use with Low Flow & High Flow GM Type II TC steering pumps:

Lubrication Engineers 7500 LE Power Steering Fluid, 1 Qt.
(Part #91044010)


This power steering fluid is compatible with all racing power steering systems. Non-foaming, even at high temperatures. The best we have found. 1 quart.

  • Lowers operating temperatures
  • Controls rust and corrosion
  • Foam prevention
  • Seal compatibility
  • Reduces pump & gear wear
  • Resists oxidation
  • Contains MONOLEC, LE's exclusive wear-reducing additive
5/8 Inch or 16mm to AN6 Banjo Fitting for Power Steering Pump
(Part #6174830)


Zinc-plated steel banjo bolt assembly for the pressure connection (outlet) to the pump.

Fitting 617-4830 fits our:

  • P/S pump # 91032922-GM
  • P/S pump # 91032908-BLK
  • P/S pump # 91032908-CHR

WARNING:  Fitting is designed to accept an AN-6 stainless steel braided wire high-pressure hose.
