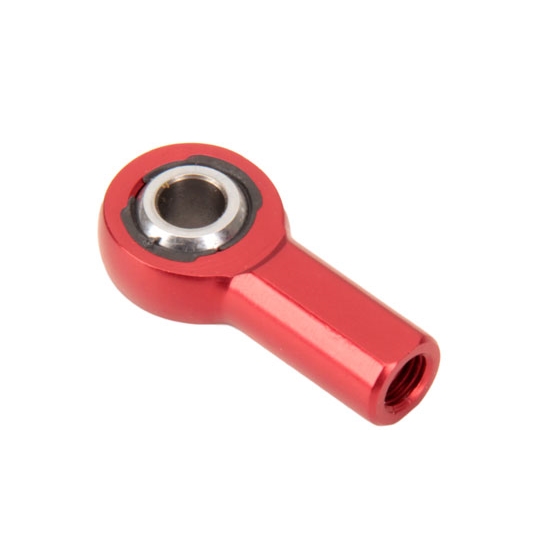

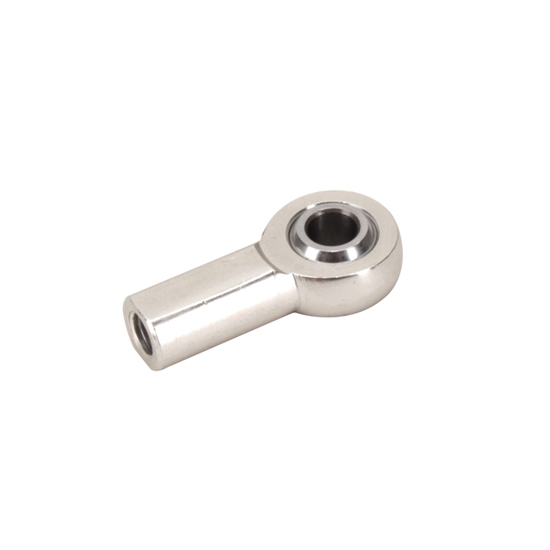

Aluminum RH Female Master Cylinder Heim Joint Rod Ends, 5/16 Inch

SAME DAY SHIPPING! Most orders ship within 24 hours.

Specs
Material Type:
Aluminum
Overall Length:
1.75
Color:
Red
Finish:
Anodized
Hole Diameter:
0.3125
Thread Pitch:
5/16"-24
Threads:
RH Female
Garage Sale:
No
Aluminum RH Female Master Cylinder Heim Joint Rod Ends, 5/16 Inch
Aluminum RH Female Master Cylinder Heim Joint Rod Ends, 5/16 Inch

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Aluminum female 5/16"-24 heim for completeing your Mini Sprint or other small vehicle brake system.

You may also be interested in:

Wilwood 290-0632 570 Brake Fluid, 12 oz Bottle
SKU-8352900632


Wilwood's specially formulated Hi-Temp 570° Racing Brake Fluid has a minimum 570 degree dry boiling point to withstand the severe heat requirements of automotive racing. Hi-Temp 570's low viscosity allows easy bleeding of your brake system, eliminating aeration of the brake fluid caused by foaming due to excessive pumping of the pedal.

This high temp brake fluid comes in a convenient 12 ounce container hermetically sealed to guarantee against unwanted absorption of moisture which can drastically lower the fluids boiling point (fluid from larger containers tends to become contaminated with moisture, lowering its boiling point and making it unsuitable for racing applications).

  • Dry Boiling Point:  573° F
  • Wet Boiling Point:  313° F

8352900632 Instructions (PDF)

Wilwood Combination Remote Fill Master Cylinder Kit
SKU-70174


Six different bore sizes and four different installation configurations are available in this master cylinder kit. Precision machined from high strength aluminum, this kit includes both small and large size reservoirs which can be mounted for more convenient service access. Standard mounting bolt hole configurations provide easy applications for racing and off road vehicles, specialty cars, recreation and industrial vehicles.

Bore sizes available include: 5/8", 3/4", 7/8", 13/16", 1", 1-1/8".

  • Includes small and large reservoirs which can be direct or remote mounted
  • Aluminum cylinder with plastic reservoir tank
  • Mounting flange is a vertical pattern on a 2-1/4" on center
  • Master cylinder has a single 3/8-24 brake line outlet
  • The two side mount holes are 3" from center to center

70174 Instructions (PDF)

Learn more about selecting the proper master cylinder for your vehicle by reading our tech article. Brake System Selection.

Aluminum RH Female Heim Joint Rod Ends, 3/16 Inch
SKU-1170700


Aluminum rod ends have close tolerance, 3 piece, medium duty rod end.  Hard anodized 7075-T6 aerospace quality aluminum body.  Heat treated, 5210 precision ground ball, Kevlar race.  Self lubricating Teflon liner to seal out dirt an debris.

Applications: Designed for motorsports application where weight is critical.  All of the strength & features of the precision rod ends at half of the weight.

ASSEMBLY TIP:
  To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.

Aluminum RH Female Heim Joint Rod Ends, 1/4 Inch
SKU-1170710


Aluminum rod ends have close tolerance, 3 piece, medium duty rod end.  Hard anodized 7075-T6 aerospace quality aluminum body.  Heat treated, 5210 precision ground ball, Kevlar race.  Self lubricating Teflon liner to seal out dirt an debris.

Applications: Designed for motorsports application where weight is critical.  All of the strength & features of the precision rod ends at half of the weight.

ASSEMBLY TIP:
  To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.

Aluminum RH Female Heim Joint Rod Ends, 3/8 Inch
SKU-1170730


Aluminum rod ends have close tolerance, 3 piece, medium duty rod end.  Hard anodized 7075-T6 aerospace quality aluminum body.  Heat treated, 5210 precision ground ball, Kevlar race.  Self lubricating Teflon liner to seal out dirt an debris.

Applications: Designed for motorsports application where weight is critical.  All of the strength & features of the precision rod ends at half of the weight.

ASSEMBLY TIP:
  To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.

Wilwood 260-5520 Kart Master Cylinder Assembly w/ Bracket, 1/2 In Bore
SKU-8352605520


This super lightweight aluminum master cylinder is designed specifically for kart, mini sprint and junior dragster racing applications. It incorporates an adjustable lever ratio with a remote mount clear fluid reservoir for easy monitoring. The assembly comes ready to install and includes billet bracket, lokwired drilled hardware and fluid line fitting.

  • 1.32" mounting centers

Wilwood Master Cylinder Dimensions (PDF)

Master Cylinder Specs Diagram

Learn more about selecting the proper master cylinder for your vehicle by reading our tech article. Brake System Selection

Wilwood Compact Master Cylinder
SKU-835260103


Wilwood’s Compact Combination Master Cylinders have been designed for limited space applications requiring the output capacity of a full size master cylinder. The ultra short 3.37”compact body provides 2.16” of additional clearance between the mounting flange and the fluid outlet. A full 1.12” of piston stroke meets or exceeds the stroke capacity of most full size cylinders. With 1/8” NPT fluid outlet port located at the top radius of the cylinder bore, reduces the chances for trapped air. The black E-Coated aluminum body resists corrosion and maintains a durable long lasting finish.

Includes a large and small reservoir, hose and hardware for remote mounting if required. Features a heavy internal return spring.

835-260103 Instructions (PDF)

Learn more about selecting the proper master cylinder for your vehicle by reading our tech article. Brake System Selection

Aluminum Jam Nuts, 5/16-24 RH, Pack/6
SKU-3159596


These jam nuts are made of 7075 aluminum alloy and are clear anodized for corrosion resistance. Fine thread for use with rod ends, heim joints, and clevis.

Sold in package of six.

Seals-It WS3125 Heim Joint Rod End Seals, 5/16 Inch Hole, Set/6
SKU-91001500


These rod end seals are a neoprene rubber seal bonded to an aircraft quality washer. Extends the life of your rod ends by keeping the dirt, debris and moisture out of the spherical ball. They fit on both sides of the ball end of the heim joint and are sized to match the hole in the spherical ball.

For use with standard and Pro 1 Series rod end only. Sold in sets of six, which will cover both sides of three rod ends.
