Aluminum LH Female Heim Joint Rod Ends, 3/8 Inch

Specs
Material Type:
Aluminum
Finish:
Anodized
Threads:
LH Female
Color:
Clear
Thread Pitch:
3/8"-24
Hole Diameter:
0.3750

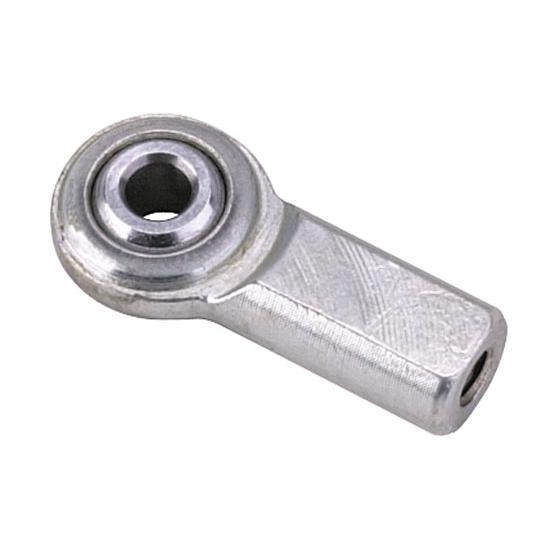

Aluminum LH Female Heim Joint Rod Ends, 3/8 Inch

Click image to enlarge

Details

Reviews (0)

Q & A (1)

What's in the Box

Info

Aluminum rod ends have close tolerance, 3 piece, medium duty rod end.  Hard anodized 7075-T6 aerospace quality aluminum body.  Heat treated, 5210 precision ground ball, Kevlar race.  Self lubricating Teflon liner to seal out dirt an debris.

Applications: Designed for motorsports application where weight is critical.  All of the strength & features of the precision rod ends at half of the weight.

ASSEMBLY TIP:
  To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.

Customer Reviews

This product has no reviews.

Product Q&A

1 questions : 1 answers

1 answers

Can you tell me the width of the ball for this? I am trying to match a clevis that would accept a rod-end. The widest I can find so far for the clevis is .438 but it seems all rod-ends are .500. Is this the same for this part?

TerriS
Columbus, OH, USA
March 18, 2015

Can you tell me the width of the ball for this? I am trying to match a clevis that would accept a rod-end. The widest I can find so far for the clevis is .438 but it seems all rod-ends are .500. Is this the same for this part?

Answers

March 19, 2015
EricM
Yes the width of the ball is .500" which is a standard of the industry width for a 3/8" rod end. You will be best off modifying the clevis to fit a standard width rod end.
