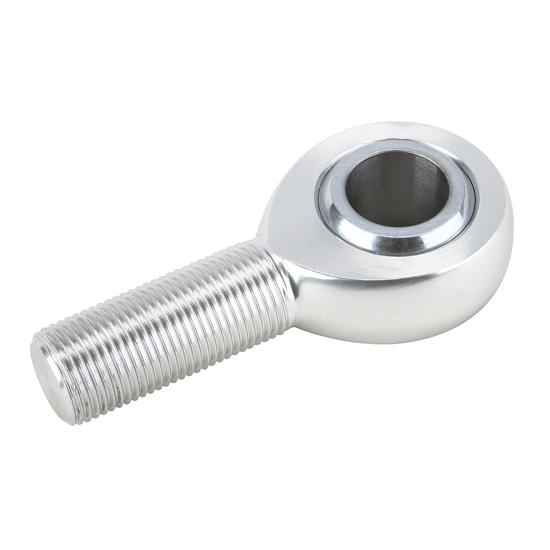

Steering Shaft Aluminum Heim Joint Rod Ends, 3/4-16 RH Male, .757 Hole

SAME DAY SHIPPING! Order within the next 5 hours 5 minutes and receive same day shipping

Specs
Material Type:
Aluminum
Color:
Clear
Finish:
Anodized
Hole Diameter:
0.7570
Thread Pitch:
3/4"-16
Threads:
RH Male
Steering Shaft Aluminum Heim Joint Rod Ends, 3/4-16 RH Male, .757 Hole
Steering Shaft Aluminum Heim Joint Rod Ends, 3/4-16 RH Male, .757 Hole

Click image to enlarge

Speeday Motors Logo
X
Steering Shaft Aluminum Heim Joint Rod Ends, 3/4-16 RH Male, .757 Hole

Details

Reviews

Q & A

What's in the Box

3/4" heim for steering shaft.  Has .757 ball hole. Slides right over standard 3/4" steering shaft. 3/4" NF right hand threads. Jam nut sold separately.

Item Details

.757
