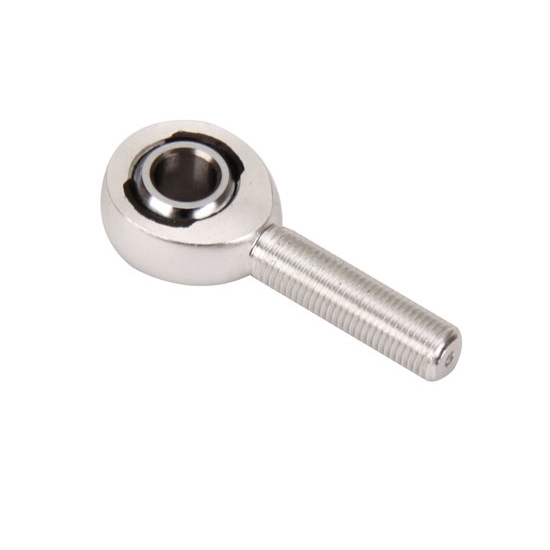

Aluminum Heim Joint Rod Ends, 3/8-24 LH Male

Specs
Material Type:
Aluminum
Finish:
Anodized
Threads:
LH Male
Color:
Clear
Thread Pitch:
3/8"-24
Hole Diameter:
0.3750
Aluminum Heim Joint Rod Ends, 3/8-24 LH Male

Click image to enlarge

Details

Reviews (1)

Q & A (0)

What's in the Box

Info

Aluminum rod ends are a close tolerance, 3-piece, medium duty design. Hard anodized 7075-T6 aerospace quality aluminum body. Heat treated, 5210 precision ground ball, Kevlar race. Self lubricating Teflon liner seals out dirt and debris.

Applications: Designed for motorsports application where weight is critical. All of the strength & features of the Precision rod ends at half of the weight.

Assembly Tip:
To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.

Aluminum Rod Ends Chart (GIF)
