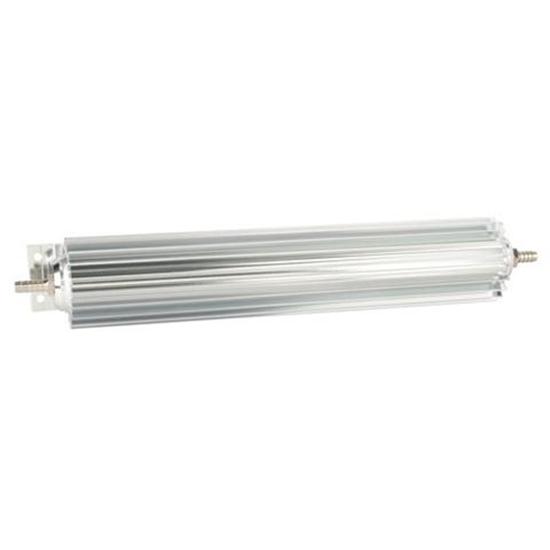

Aluminum Heatsink Transmission Cooler, 18 Inch

SAME DAY SHIPPING! Order within the next 11 hours 6 minutes and receive same day shipping

Specs
Material Type:
Aluminum
Overall Height:
3.13
Overall Width:
3.00
Overall Length:
20.31
Sold in Quantity:
Each
Finish:
Polished
Tube Length:
18.88
Outlet Fitting:
3/8" NPT
Bolt Hole Pattern:
19.63" x 1.40"
Notes
Includes two 3/8" NPT hose nipples to fit 3/8" hose. Mounting bracket surface is 1.125" x 2.188".
Aluminum Heatsink Transmission Cooler, 18 Inch
Aluminum Heatsink Transmission Cooler, 18 Inch
Aluminum Heatsink Transmission Cooler, 18 Inch
Aluminum Heatsink Transmission Cooler, 18 Inch

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

The conductivity of aluminum and added fins make these the best choice for performance and price. Includes hose barb fittings.

  • Compact & efficient size
  • All-aluminum design for maximum heat transfer
  • Easily mounts to most frame rails
  • Includes two hose nipples to fit 3/8" hose

Customer Reviews

Rated 4.8 out of 5 by 4 reviewers.
RATING BREAKDOWN
4 reviews
5 Stars
3
4 Stars
1
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Pontiac36
Verified Purchaser
Jonesboro, AR, USA
Product Rating

Great

February 16, 2015
Great heat reduction design. Easy mounting design.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Custom Chris
Verified Purchaser
Portland, OR
Product Rating

Inside Fins

December 15, 2011
The cooler is constructed much better than I was expecting. Very sturdy, nice welds, and the fins are on the inside also!
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Coeman
Verified Purchaser
Product Rating

nice quality

October 08, 2014
nice looking high quality ,don't know how it works my truck is not done
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Haferkdw
Verified Purchaser
Sussex
Product Rating

Very well built tranny cooler

April 11, 2015
Nice and compact fits well along the frame rail. There is also cooling fins inside.
Cons:
  • my mounting feet were not even on my unit
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1
91023118

Product Q&A

1 questions : 1 answers

1 answers

what is the BTU rating on it

Delbert
La Quinta, CA, USA
August 26, 2014

what is the BTU rating on it

Answers

August 27, 2014
EricM
Sorry I do not have a BTU rating on this cooler.
Page 1 of 1
