Aluminum Headlight Mounting Brackets, Polished

SAME DAY SHIPPING! Order within the next 11 hours 8 minutes and receive same day shipping

Specs
Material Type:
Aluminum
Overall Height:
9.50
Sold in Quantity:
Pair
Finish:
Polished
Inside Diameter:
.29
Mounted Height:
8.00
Base Length:
2.75
Base Width:
2.62
Notes
Hole ID = .29", not big enough if customer is running turn signal wires with headlight wires. Also, light mount cavity will not clear any hex nut larger than 7/8". Light mount hole ID = .50"

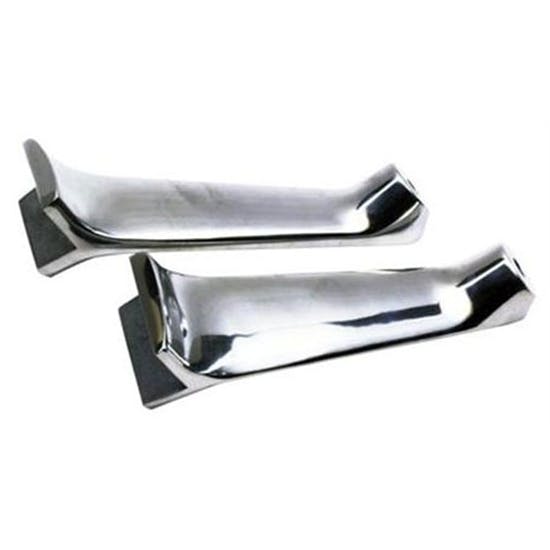

Aluminum Headlight Mounting Brackets, Polished
Aluminum Headlight Mounting Brackets, Polished
Aluminum Headlight Mounting Brackets, Polished
Aluminum Headlight Mounting Brackets, Polished
Aluminum Headlight Mounting Brackets, Polished
Aluminum Headlight Mounting Brackets, Polished

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a pair.

Details

Reviews

Q & A

What's in the Box

Headlight mounting bracket features a tapered aerodynamic design. Has an internal hole for hidden wire. Measures 8" tall. Fully polished finish.

Customer Reviews

Rated 4 out of 5 by 4 reviewers.
RATING BREAKDOWN
4 reviews
5 Stars
2
4 Stars
0
3 Stars
2
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

kc
Verified Purchaser
Tampa fl.
Product Rating

Polished worth the price

August 16, 2010

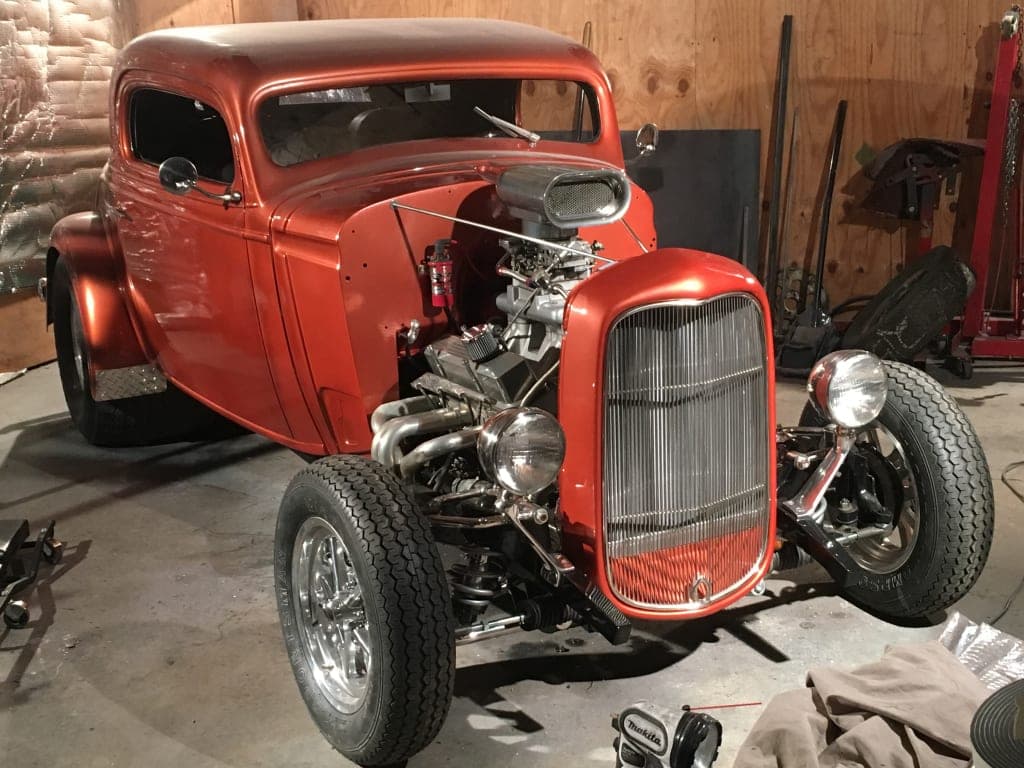

I had ordered the unfinished thinking I could polish them up, but they were pretty rough. So I ordered the polish ones, they are worth the money so it doesn't always pay to save a buck.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

dirty old man
Verified Purchaser
Griffin, GA
Product Rating

OK, but could be better

August 07, 2011
Easier than starting from scratch, but needs some changes. The hole thru length is too small for wires to pass and unusable. Mounting holes are difficult to jig up and drill. With volume manufacturing production, it would cost very little to to jig up and drill when manufacturing, and it would great to have as an extra cost option. Polish job is fair at best.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

buckethead23
Product Rating

great product

March 18, 2015
wish mounting holes were predrilled,but no biggie will look good with headlamps to match
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

roma
Verified Purchaser
Product Rating

Not to my use as is

March 29, 2014
These would be a great item if they where trimmed to much bulk I ground a lot of the aluminum off to make them more like the vintage item
Pros:
  • need a lot of work to get the look
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1
91061001

Product Q&A

1 questions : 1 answers

1 answers

How are they mounted to the frame? Do you have to modify the bracket?

nick
florida
March 14, 2012

How are they mounted to the frame? Do you have to modify the bracket?

Answers

March 14, 2012
Eric
To mount these to your frame you will need to drill holes in these brackets and in your frame and bolt them together.
Page 1 of 1
