Aluminum Fan Shroud Kit for 28 Inch Radiator, Engine Driven Fan

Specs
Material Type:
Aluminum
Sold in Quantity:
Each
Finish:
Natural
Cooling Fan:
Single
Hardware Included:
Yes
Overall Height:
19.50
Overall Width:
22.00
Depth:
3.00
Material Thickness:
.06
Notes
Inner band for the fan is 3.00" deep.
Aluminum Fan Shroud Kit for 28 Inch Radiator, Engine Driven Fan

Click image to enlarge

Details

Reviews (15)

Q & A (2)

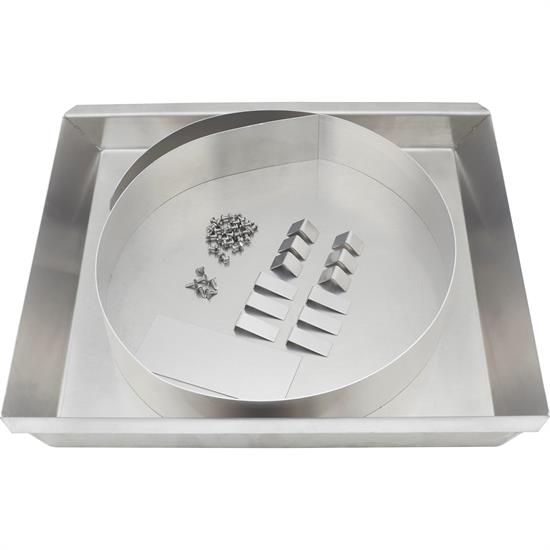

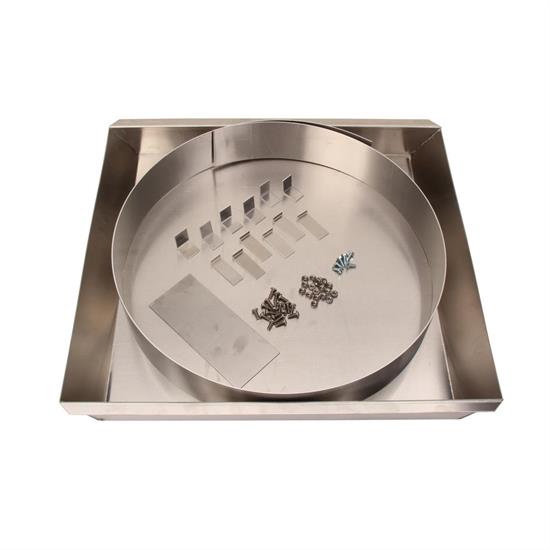

What's in the Box

Info

These universal fit aluminum fan shroud kits can be built to fit many applications with a belt-driven fan. The adjustable collar will accommodate 15"-20" fan diameters.

Measures 21-3/4" x 19-1/2" tall x 2-5/8" thick. Works well with Speedway 28" wide radiators

  • Made for exact fit of many Muscle Car and Hotrod radiators
  • Allows the installer the choice of off center, side-to-side and above the radiator fan positioning
  • For crossflow or downflow radiator mounting
  • Includes fully-formed shroud of .063" lightweight aircraft aluminum
  • 3" trimmable collar
  • Adjustable collar; adjusts for 15-20" fan diameters
  • Includes all the necessary hardware and mounting instructions
  • Shroud made of 14 gauge aluminum

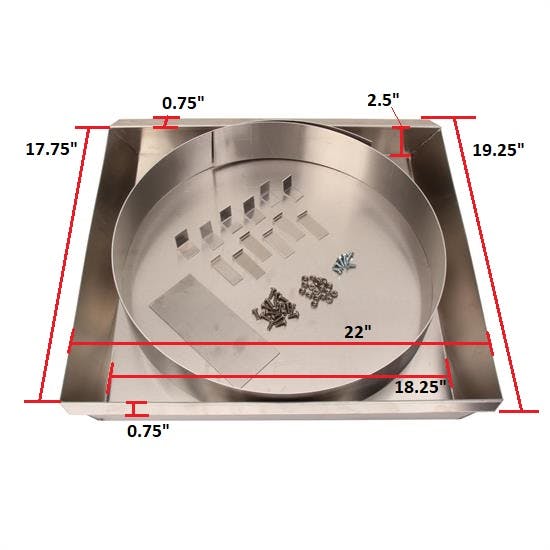

  • Measures 21-3/4" wide x 19-1/2" tall x 2-5/8" thick (approximate)
  • Fan Ring, 3” x 65”
  • Flat tab, 3” x 7”
  • Brackets, 90º (6)
  • Screws (6)

Fan Shroud Installation Instructions (PDF)

Learn more about the importance of using a fan and shroud with our radiators by reading our tech article. Radiator Cooling Performance.

Item Details

Style C, D & H Mechanical Fan Shroud Only

Application

Radiator/Shroud Style Guide

Note: Applications are for reference only and you need to measure your existing radiator for proper dimensions.

  • 1966-70 Bel Air/Caprice/Impala
  • 1966-67 Chevelle
  • 1967-69 Camaro/Firebird
  • 1966-80 Dodge/Plymouth/Chrysler
  • Application Guide

Specs


Customer Reviews

Rated 4.7 out of 5 by 15 reviewers.
RATING BREAKDOWN
15 reviews
5 Stars
10
4 Stars
5
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Rapidone
Verified Purchaser
Verified Reviewer
Tappahannock va.

Short

June 26, 2016
Had to center on rad. A inch to short on sides
Pros:
  • Construction Is Outstandi
Cons:
  • 2 Inch Short
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

cgmtruck
Verified Purchaser
cos

worked great

June 23, 2016
Just what I needed for my 50 Chevy pickup.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Big pun
Verified Purchaser
Verified Reviewer
Tomahawk,WI

Aluminum radiator shroud

May 31, 2016
Great easy installation
Pros:
  • Easy Installation
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Jim K.
Verified Purchaser
Verified Reviewer
Chicago Area

Great Shroud

January 06, 2016
This shroud was pretty simple to install. But you do need some fabrication skills. I wish it was a bit wider to go across the whole core area. I would recommend this to used.
Pros:
  • Looks Good Great Welds
Cons:
  • Could Be A Bit Wider
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Jp racing
Verified Purchaser
Verified Reviewer
Pittsburgh pa

I would recommend this to any of my racing friends

August 22, 2015
Works great for any racing application. Can be cut for any custom fit.
Pros:
  • Can Be Cut For Any Custom
Cons:
  • Lots Of Cutting
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Rusty Wrenches
Verified Purchaser
North dakota

Great quality for the cost

July 10, 2015
Fits the radiator well. Easy assembly. Wish the brackets that hold the ring to the pan were made of the same material. There lighter than I liked and broke easily. Could use some foam around the edges to seal it to the radiator.
Pros:
  • Easy assembly
Cons:
  • Need Stronger Brackets
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Chic's 52
Verified Purchaser
Verified Reviewer
Phoenix, AZ

Perfect

June 25, 2015
I used this shroud kit on my 52 Chevy truck. Even though I don't have a tig welder I was able to build just what I needed for this project. A tig welder would have made a really nice piece.
Pros:
  • Easy to work with
  • Thick aluminum
  • everything i needed
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

buckboard

good material

August 28, 2014
perfect fit, nice thick aluminum, easy to work with
Pros:
  • glad i bought it
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

dadman
Verified Purchaser
Hyndman, PA, USA

exactly what I wanted, good quality too

August 04, 2014
Great service! Polite and knowledgeable tech and rep ! Parts showed up on door step packaged well and was Quickly deliverd SPEEDWAY RULES!!!
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Kemper
Verified Purchaser

Easy to put together

May 05, 2014
Nice and durable looks great and fits great in the car
Pros:
  • Durable
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 2

Product Q&A

2 questions : 3 answers

2 answers

How would the shroud attach to your radiator part #917340? How does the collar attach to the shroud?

September 08, 2011

How would the shroud attach to your radiator part #917340? How does the collar attach to the shroud?

Answers

May 06, 2014
Kemper
I slid it into the lower hanger for the radiator and on the top I used my top mount to hold it in works great
September 09, 2011
Jason
THIS IS A "UNIVERSAL" FAN SHROUD KIT THAT WILL WORK WITH MOST ANY BELT-DRIVEN FAN. IT CONSISTS OF A "BOX" APPROXIMATELY 22" WIDE AND 19-1/2"TALL, APP. 2-1/2"THICK, AND A FAN "RING" APP. 3" WIDE THAT CAN BE RIVETED TO THE "BOX" WHEN ADDITIONAL DEPTH IS NEEDED. ALSO INCLUDED: ANGLE BRACKETS, SELF-TAPPING SCREWS, AND A 3"X7" PIECE OF ALUMINUM FOR FILL IF THE"RING" GOES OUTSIDE THE "BOX".
1 answers

How thick is the aluminum used in the shroud?

Michael
Austin, Tx
August 17, 2011

How thick is the aluminum used in the shroud?

Answers

August 19, 2011
QC
This is 14 gauge aluminum.
Page 1 of 1
