Aluminum Fan Shroud Kit for 26 Inch Radiator, Engine Driven Fan

Specs
Sold in Quantity:
Each
Notes
ALUMINUM FAN SHROUD 19-5/8" TALL X 20 1/2 " WIDE

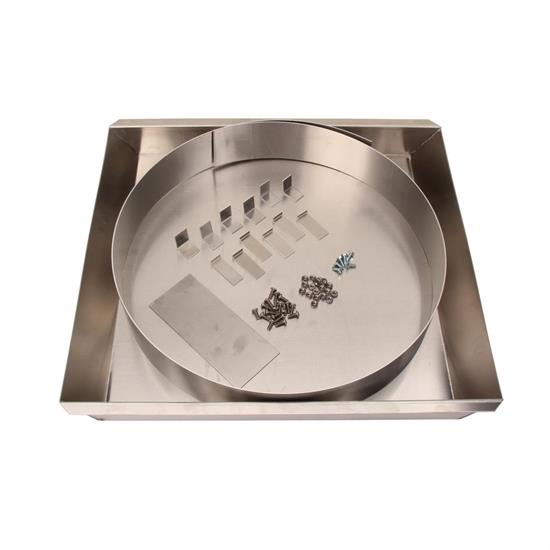

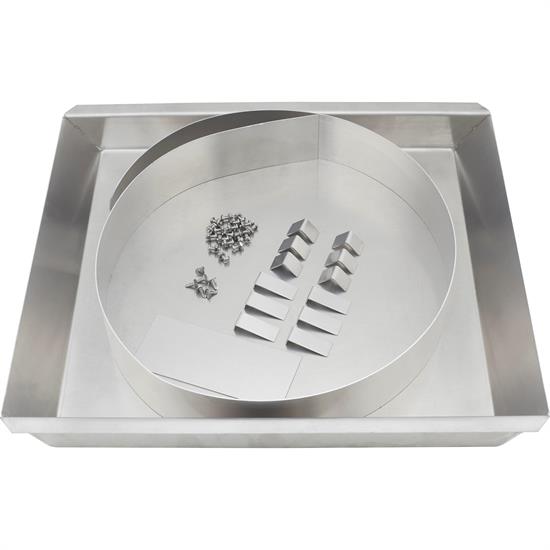

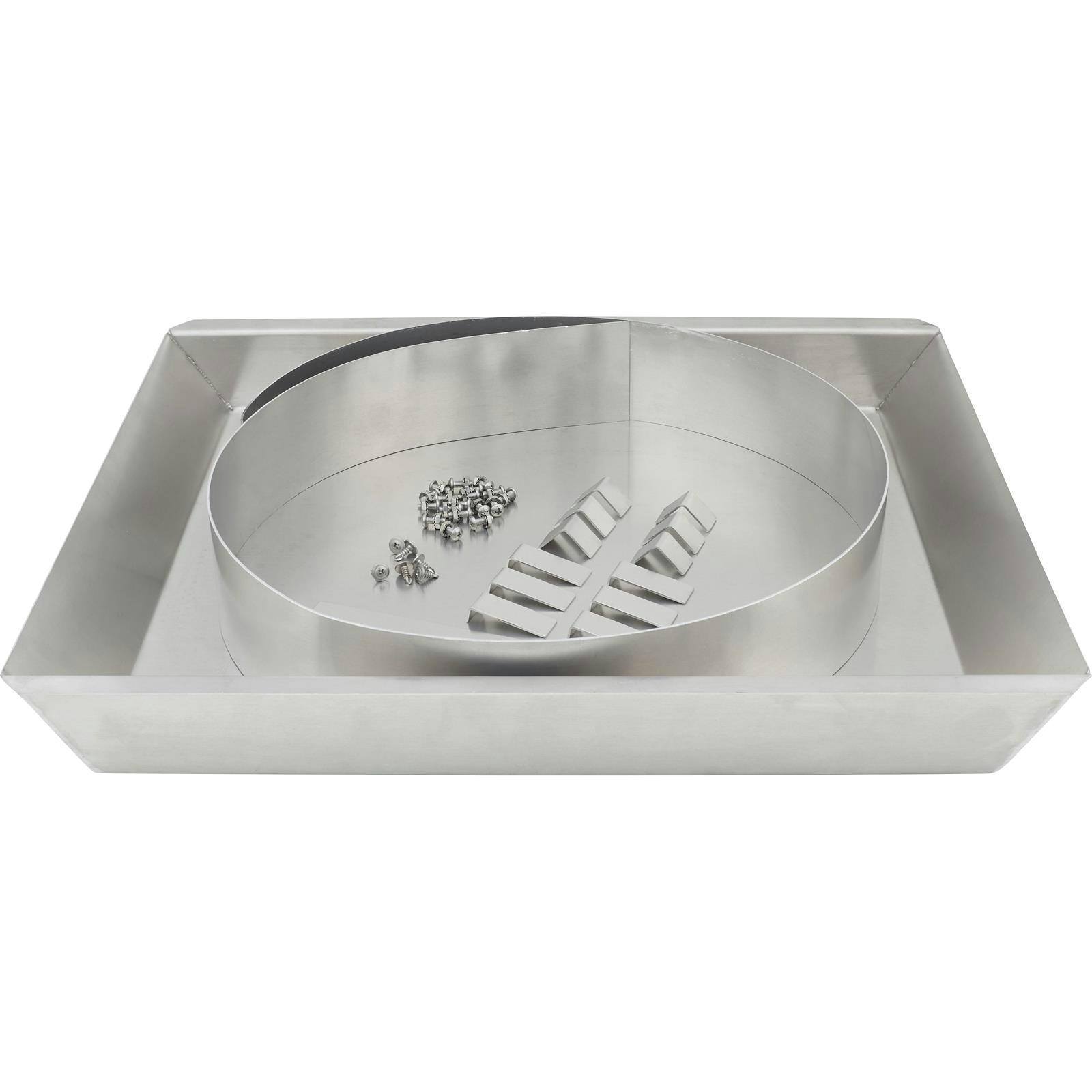

Aluminum Fan Shroud Kit for 26 Inch Radiator, Engine Driven Fan

Click image to enlarge

Details

Reviews (0)

Q & A (2)

What's in the Box

Info

These universal fit aluminum fan shroud kits can be built to fit many applications with a belt-driven fan. The adjustable collar will accommodate 15"-20" fan diameters.

Measures 19-5/8" tall x 20-1/2" wide x 2-5/8" deep. Works well with Speedway 26" wide radiators

  • Made for exact fit of many Muscle Car and Hotrod radiators
  • Allows the installer the choice of off center, side-to-side and above the radiator fan positioning
  • For crossflow or downflow radiator mounting
  • Includes fully-formed shroud of .063" lightweight aircraft aluminum
  • 3" trimmable collar
  • Adjustable collar; adjusts for 15-20" fan diameters
  • Includes all the necessary hardware and mounting instructions
  • Measures 19-5/8" tall x 20-1/2" wide x 2-5/8" deep

Learn more about the importance of using a fan and shroud with our radiators by reading our tech article. Radiator Cooling Performance.

 Fan Shroud Installation Instructions (PDF)

Customer Reviews

This product has no reviews.

Product Q&A

2 questions : 2 answers

1 answers

my radiator (core only) is 26"w x 19"h, how would this shroud work at 20.5"w that is 5.5" to short? says work well with 26" wide radiators. thanks, s

jpcjdad
California, USA
September 22, 2014

my radiator (core only) is 26"w x 19"h, how would this shroud work at 20.5"w that is 5.5" to short? says work well with 26" wide radiators. thanks, s

Answers

September 22, 2014
EricM
This shroud works well on 26" wide cross flow radiators which have tanks on each side. Your Jeep has a down flow radiator with tanks on top and bottom so you would be much better off with shroud 9174023 which is 25 3/4" wide and 19" tall.
1 answers

What size electric fan could be mounted to this to cool a 1965 Buick 401 Nailhead with a slightly larger than stock cam otherwise stock including stock Buick GS exhaust manifolds. It's in a 1965 Skylark with your 917348-26 radiator. Thanks Dan

Dan
August 01, 2016

What size electric fan could be mounted to this to cool a 1965 Buick 401 Nailhead with a slightly larger than stock cam otherwise stock including stock Buick GS exhaust manifolds. It's in a 1965 Skylark with your 917348-26 radiator. Thanks Dan

Answers

August 03, 2016
John
Expert
A 16" fan such as number 910153-16 can be mounted on this shroud for maximum cooling with 2070 cfm of air flow.
