Aluminum 5 on 5 Hub Adapter

SAME DAY SHIPPING! Order within the next 9 hours 51 minutes and receive same day shipping

Aluminum 5 on 5 Hub Adapter
Product Video
Aluminum 5 on 5 Hub Adapter

Click image to enlarge

Watch the video below to learn how to correctly measure your wheel bolt pattern.

Details

Reviews

Q & A

What's in the Box

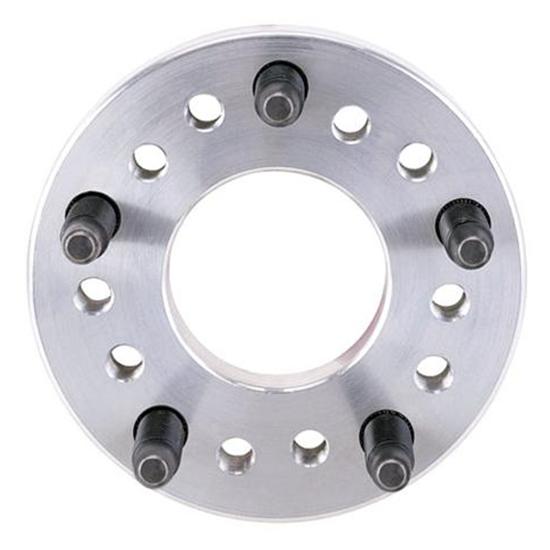

This 5 on 5 hub adapter adapts 5 on 4-1/2" or 5 on 4-3/4" hubs to use a 5 on 5" wheel. Aluminum adapter with 5/8" coarse studs, 1" thick.

Lug nuts NOT included. Sold each.

IMCA Approved



Customer Reviews

Rated 4 out of 5 by 2 reviewers.
RATING BREAKDOWN
2 reviews
5 Stars
0
4 Stars
2
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

j.biggs
aberdeen wa
Product Rating

nice quality

February 25, 2010
Nice quality
Pros:
  • nice quality
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Steve
Verified Purchaser
Tn
Product Rating

Does not include the scoket head bolts

July 02, 2011
Does not include the scoket head bolts that are needed other than that they seem to be fine.
Pros:
  • Lightweight
  • Versatile
  • Easy To Use
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1
91658254

Product Q&A

4 questions : 4 answers

1 answers

fittament can I drill this out to fit an axle that has already been drilled for 5/8ths studs

nikkih
March 09, 2015

fittament can I drill this out to fit an axle that has already been drilled for 5/8ths studs

Answers

March 09, 2015
EricM
Typically this will not work well if you have already drilled your axles for 5/8" studs. Most 5/8" studs require a 43/64" hole size to install them. That is even larger than 5/8" and your bolts will be sloppy if trying to use 5/8" bolts. You may be able to drill the axles even larger to a 11/16" or 3/4" bolt size but at that point you have no way to return to the original bolt pattern because the holes will be too large to accommodate studs.
1 answers

So how are you suppose to use stock brake drums with these

bullet84
January 22, 2014

So how are you suppose to use stock brake drums with these

Answers

January 23, 2014
EricM
You must drill your axles or hubs as well as brake drums to 1/2" hole size. Then you will put a bolt in from the back side of the axle or hub and thread it into this adapter.
1 answers

What else do I need to attach this to the hub?

Bean23
WA
April 16, 2013

What else do I need to attach this to the hub?

Answers

April 17, 2013
EricM
You will need five grade 8 bolts 1/2" fine thread (per wheel adapter) of the appropriate length for your application as well as some flat washers to complete the installation.
1 answers

Does using this adapter bring tires out past fender?And it come with nuts to hold adapter on?

Fairhaven Ma
September 25, 2011

Does using this adapter bring tires out past fender?And it come with nuts to hold adapter on?

Answers

September 27, 2011
Jason
There are no nuts included with this adaptor. Adaptor is 1" thick, depending on wheel offset will depend on where tire sits in relationship to fender.
Page 1 of 1
