Aircraft Style Fuel Filler Neck & Cap

SAME DAY SHIPPING!

Specs
Sold in Quantity:
Each
Overall Diameter:
4.875
Inside Diameter:
3.0
Thread Pitch:
1/4"-20
Bolt Hole Pattern:
4.375"
Gasket(s) Included:
Yes
Hardware Included:
Yes
Notes
Polyethylene cap is vented. Requires a 3-3/4" hole to sit flush.

Share by Email

From
To

Click image to enlarge

X

Details

Reviews

Q & A

What's in the Box

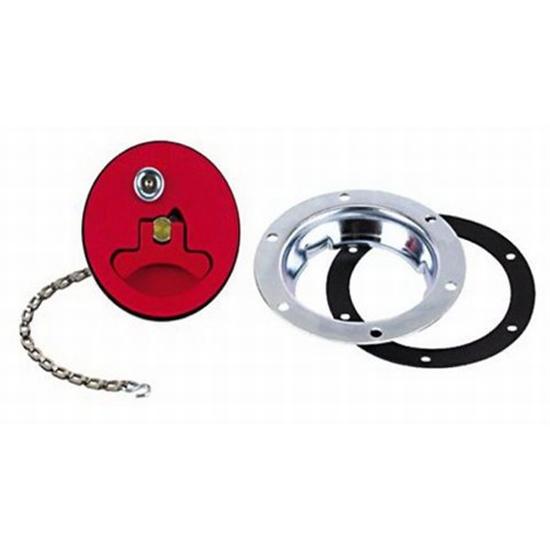

Flush-mount caps offer excellent aerodynamic performance, large fill opening and attractive appearance. Cap features a positive seal, flip-up 1/4-turn handle, and a chain to secure it to the gas filler neck. Includes cap, chain, fuel filler neck, gasket, and all hardware. Polyethylene cap is vented.

Hole in tank needs to be 3-3/4" for cap to sit flush.
