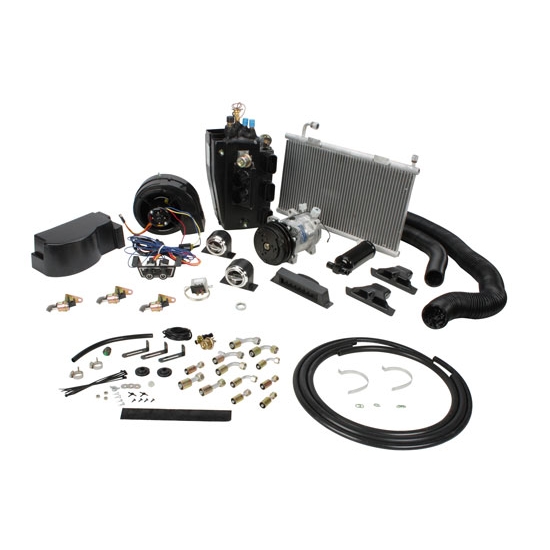

Air Conditioning Kit w/ Condenser

Air Conditioning Kit w/ Condenser
Air Conditioning Kit w/ Condenser
Air Conditioning Kit w/ Condenser

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a kit.

Details

Reviews

Q & A

What's in the Box

The days of riding around trying to look cool while sweating your butt off are gone! So is going to the junkyard and trying to find used parts to cobble up an a/c system. These kits have three dash vents and two defrost ducts and are engineered for 1930's coupes, pick-ups and smaller cars.

These are designed with both the a/c evaporator and heater core in one unit which helps keep size and installation time down. They fit under the dash just like a new car and allow disassembly without removing the unit from the car.

They include dash louvers, defrost louvers, switch panel, a/c hose kit, dryer with switch, Sanden 508 compressor  with V-belt pulley, and evaporator/heater assembly. They are available with or without condenser and standard finish or deluxe polished aluminum compressor.

Hoses will need to be crimped by your local shop. R134a Freon required, but not supplied. Compressor brackets and heater hoses sold separately.

Instructions (PDF)

Notes

V-Belt Compressor

  • Cast Aluminum Finish
  • V-belt Pulley
  • HFC-134a Refrigerant
Hoses & Fittings Included: (Beadlock Fittings)
  • (1) #6 45 degree fitting
  • (1) #8 45 degree fitting
  • (4) #6 90 degree fittings
  • (2) #10 90 degree fittings
  • (1) #8 90 degree fitting w/ svc. port
  • (1) #10 90 degree fitting w/ svc. port
  • (1) #6 90 degree bulkhead
  • (1) #10 90 degree bulkhead
  • 6 ft. #6 A/C hose
  • 4 ft. #8 A/C hose
  • 5 ft. #10 A/C hose

Specs

  • Evaporator measures 20" long, 8-1/4" wide, 8-3/4" tall
  • Compressor Measurements (GIF)
  • Compressor requires:
    • 30 amps
    • HFC-134a refrigerant
    • clockwise or counterclockwise rotation
    • SP-20 refrigerant oil (comes fully serviced with oil)
  • Drier measures 2-1/2” x 6-1/2”
  • Drier includes a Binary Safety Switch

Item Details

Plain Compressor

Customer Reviews

Rated 3 out of 5 by 2 reviewers.
RATING BREAKDOWN
2 reviews
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
1
RECOMMEND THIS PRODUCT:

mr64
Sherwood, AR, USA
Product Rating

This product has great features

September 30, 2013
this product it great because you can mix the parts with the original and still look and work grat
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Roger
Verified Purchaser
Kearney, NE, USA
Product Rating

Kit poorly constructed

March 13, 2013
Had to disassemble. Vacuum operated doors binding.
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

5 questions : 5 answers

How much freon charge do you use in this kit? Can't figure out how much to charge this system.

1 answers
Strap
Billings, MT, USA
October 22, 2014

How much freon charge do you use in this kit? Can't figure out how much to charge this system.

Answers

October 23, 2014
EricM
With 134 freon in a new system it should take 28.8 ounces or 1.8 pounds and if recharging only 1.5 pounds.

Could this unit work/fit w/ later model pick up truck (67 Chevy C-10)?

1 answers
RNLA
Agoura,
September 22, 2014

Could this unit work/fit w/ later model pick up truck (67 Chevy C-10)?

Answers

September 23, 2014
EricM
This A/C kit could be used in your '67 pickup with room permitting. You would likely need to remove the original heater box under the dash and out thru the firewall with the fan motor on the outside. Then there would be sufficient room. If not wanting to go that extreme and your existing heater is functional then you may consider an under the dash A/C unit such as number 91000535.

How the controls work There are no labels on the control. The fan is obvious. Which position is A/c, which is Heat?

1 answers
galderman
May 11, 2014

How the controls work There are no labels on the control. The fan is obvious. Which position is A/c, which is Heat?

Answers

May 12, 2014
EricM
The knob that shows the air outlet location also controls the A/C or heat selection. When the knob is positioned for the upper vents (symbol pointing to the head) the unit functions the A/C system. When the knob is positioned for the floor vents or defrost it is automatically in heat mode.

Would you substitute a serpentine belt type compressor instead of V belt for the same price? I have a SB Chevy engine both serpentine and V-belt drives on the pulley. It would be easier to route the serpentine belt to the compressor.

1 answers
Rigmaster
Madison
July 12, 2013

Would you substitute a serpentine belt type compressor instead of V belt for the same price? I have a SB Chevy engine both serpentine and V-belt drives on the pulley. It would be easier to route the serpentine belt to the compressor.

Answers

July 12, 2013
Jason
Sorry, at this time Speedway does not offer a compressor with a sepentine pulley.

What are the dimensions of the evaporator/heater assembly

1 answers
Charlie
Cheyenne WY.
September 11, 2011

What are the dimensions of the evaporator/heater assembly

Answers

September 12, 2011
Jason
This unit requires a space app.20" wide, 10" bottom-to-top, 8" back-to-front.
Page 1 of 1
