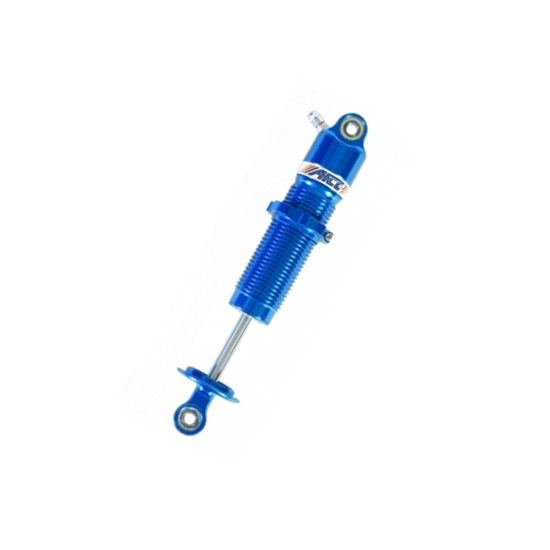

Afco 51 Series 4 Inch Quarter Midget Shock w/ Schrader Valve, 2.5 Inch
Afco 51 Series 4 Inch Quarter Midget Shock w/ Schrader Valve, 2.5 Inch

Afco 51 Series 4 Inch Quarter Midget Shock w/ Schrader Valve, 2.5 Inch

0 Reviews | 0 Answered Questions
In Stock
Ships FREE
Afco 51 Series 4 Inch Quarter Midget Shock w/ Schrader Valve, 2.5 Inch
Image Gallery
Afco 51 Series 4 Inch Quarter Midget Shock w/ Schrader Valve, 2.5 Inch
Afco 51 Series 4 Inch Quarter Midget Shock w/ Schrader Valve, 2.5 Inch
Zoomed In Image
Part # 1060514
$169.99
each
Quantity:
Rod End
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Articles

Details

Shock Type:
Twin Tube
Adjustability:
Non-Adjustable
Shock Body Material:
Aluminum
Shock Body Size:
Small Body
Shock Body Type:
Threaded
Shock Stroke:
4
Sold in Quantity:
Each

Info

Afco 51 Series Quarter Midget shocks feature a low drag seal system while utilizing a hardened chrome shaft. Engineered with deflective disk and shim stack technology as well as having the lowest rod pressure in the industry makes this shock stand above the rest. The shocks are owner rebuildable, serviceable and revalveable.
  • Chrome shaft
  • Low drag seal system
  • Lowest rod pressure in the industry
  • Deflective disk, shim stack technology
  • Owner rebuildable
  • Short spring cone
  • Stroke - 2.5"
  • Compressed Length - 7.70"
  • Extended Length - 10.20"
  • Progressive, linear, or custom valving available
  • Available with short or tall cone

Tuning Guide (PDF)

Application

  • Quarter Midget - Dirt
    • Recommended Shocks
      • Left Front/Rear or Right Front
        • Base, Slick Track Condition
  • Quarter Midget - Dirt
    • Recommended Shocks
      • Right Rear
        • Base Track Condition
  • Quarter Midget - Pavement
    • Recommended Shocks - 250-275 LB. Quarter Midget
      • Left Front/Rear or Right Front/Rear
        • Base Track Condition
Some parts are not legal for use in California or other states with similar laws/regulations
