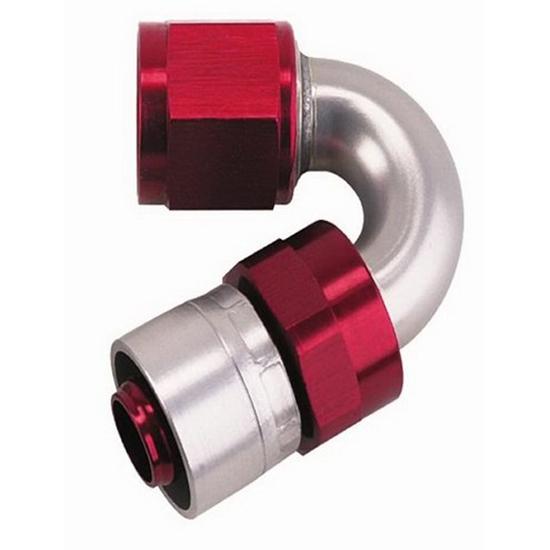

Aeroquip FBM4252 Starlite Crimp Fitting, 150 Degree, -6 AN

SAME DAY SHIPPING! Order within the next 1 hour 31 minutes and receive same day shipping

Specs
Material Type:
Aluminum
Color:
Red/Silver
Finish:
Anodized
Pressure Rating:
200 lbs
Thread Pitch:
9/16" - 18
Angle:
150 degree
Fitting End A:
-6 AN Female
Fitting End B:
-6 AN Hose
MFG. Part #:
FBM4252
Reusable:
No
Aeroquip FBM4252 Starlite Crimp Fitting, 150 Degree, -6 AN
Aeroquip FBM4252 Starlite Crimp Fitting, 150 Degree, -6 AN

Click image to enlarge

Speeday Motors Logo
X
Aeroquip FBM4252 Starlite Crimp Fitting, 150 Degree, -6 AN

Details

Reviews

Q & A

What's in the Box

Aeroquip's incredible Starlite racing hose and fittings are up to 45% lighter than stainless steel braided hose and reusable fittings. Can be used with fuel, lube and coolants. Working temperature is -45° to +300°F and have a 200 psi working pressure.

Starlite hose can be used with either crimp style or reusable hose fittings. Crimp style fitting must be used only with Starlite hose and installed by qualified personnel using an Aeroquip ProCrimp 1380 crimping machine.

There are only two ways to order these fittings and hose:

  1. Bring or mail us your old hose to match.
  2. We will send you the fittings and hose you think will work. You cut the hose to length and send it back to us for crimping.

Fitting Thread Application Chart (GIF)
