Fragola 109004 Hose End Coupler Fitting, 90 Degree, Blue/Red, -4 AN

SAME DAY SHIPPING! Order within the next 2 hours 45 minutes and receive same day shipping

Specs
Material Type:
Aluminum
Color:
Red/Blue
Sold in Quantity:
Each
Finish:
Anodized
Thread Pitch:
7/16" - 20
Angle:
90 degree
Fitting End A:
-4 AN Female
Fitting End B:
-4 AN Hose
Garage Sale:
No
Reusable:
Yes
Notes
Uses -4 AN fittings.

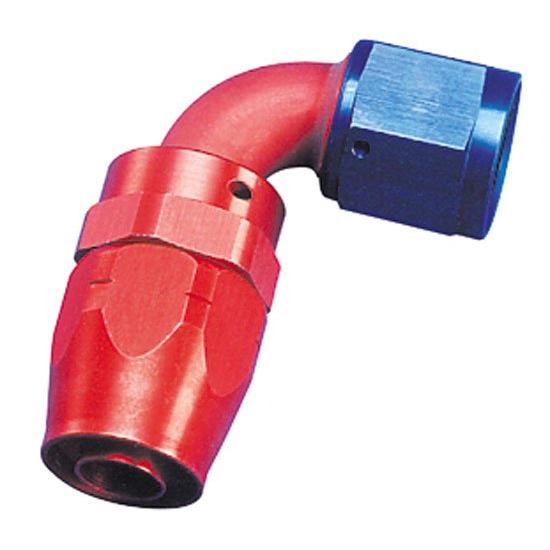

Fragola 109004 Hose End Coupler Fitting, 90 Degree, Blue/Red, -4 AN
Fragola 109004 Hose End Coupler Fitting, 90 Degree, Blue/Red, -4 AN

Click image to enlarge

Watch the video below to see exactly how the KOUL tool can make assembling hoses and fittings a snap.

Details

Reviews

Q & A

What's in the Box

This revolutionary one-piece fitting design offers motorsport enthusiasts uncompromised quality and assurance that they are using the highest performing components available. These compression-style fittings are easier to assemble and offer significantly better seal integrity than out-dated cutter-style fittings. Available in swivel with a blue/red anodized finish. For use with Fragola Premium Black Synthetic -4 AN Hose (part number 620504).

  • -4 AN
  • Lightweight aluminum hose ends are completely reusable, and interchangeable
  • Unique taper design ensures easy assembly
  • 37° angled sealing surface guarantees a positive anti-leak seal
  • Accepts a variety of lightweight aluminum AN style adapters & fittings
  • Available in Blue/Red corrosion resistant finish

90° Full Flow Ends come in sizes of AN4, AN6, AN8, AN10, AN12 and AN16.

Fitting Thread Application Chart (GIF)
