Aeromotive 12301 10 Micron Red High Flow Fuel Filter, ORB-10 Ports

Specs
Material Type:
Aluminum
Sold in Quantity:
Each
Finish:
Anodized
Fuel Type:
Gasoline
Filter Element Type:
Paper
Outlet Fitting:
-10 AN
MFG. Part #:
12301
Overall Length:
5.50
Overall Diameter:
2.00

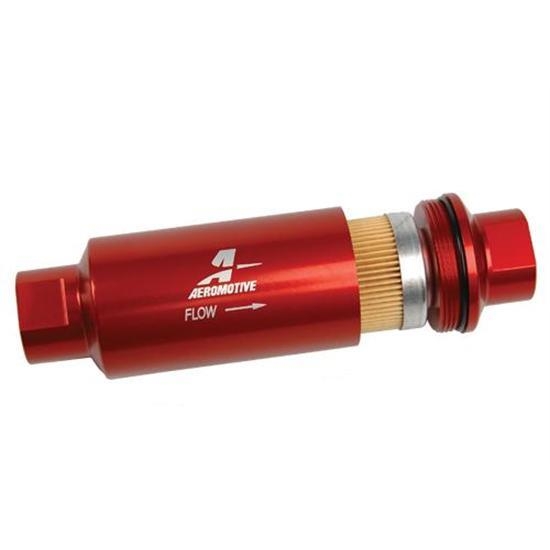

Aeromotive 12301 10 Micron Red High Flow Fuel Filter, ORB-10 Ports
Aeromotive 12301 10 Micron Red High Flow Fuel Filter, ORB-10 Ports
Aeromotive 12301 10 Micron Red High Flow Fuel Filter, ORB-10 Ports
Aeromotive 12301 10 Micron Red High Flow Fuel Filter, ORB-10 Ports

Click image to enlarge

Details

Reviews (1)

Q & A (1)

What's in the Box

Info

Engineered to support 200-3000 HP, these Aeromotive high flow fuel filters are an inexpensive insurance policy to protect your investment. Filters measure 5.5" long and 2" diameter. Contains -10 AN port fittings on the inlet and outlet. Machined from 6061-T6 aircraft aluminum and anodized for a corrosion resistant show car quality appearance. Ideal for carburetion or fuel injection up to 150psi.

  • High-flow, 10-micron fabric (fine) replaceable element
  • Flows 2,000 lb/hr with a pressure drop of less than 1 PSI
  • Compact size: 5.5” long x 2” diameter
  • All filter assemblies feature an O-ring for positive sealing in high pressure applications
  • CNC-machined from 6061-T6 aircraft aluminum
  • Bright dip red anodized finish for a corrosion resistant, show car quality appearance

Note: 10-micron filters may ONLY be used after the fuel pump to protect your injectors or carburetor. Fabric elements not suitable for use in E85 or alcohol applications.

Item Details

NOT compatible with E85 or alcohol.
Install after fuel pump.

Customer Reviews

Rated 5 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

toots
Verified Purchaser
Tulsa, OK, USA

Great filter

September 07, 2014
Worked well within the space I had and feel it will work for years to come
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

1 questions : 1 answers

1 answers

what is the psi rating on this filter?

sandrail
lancaster
April 06, 2015

what is the psi rating on this filter?

Answers

April 07, 2015
EricM
This filter can be used up to 150 psi.
