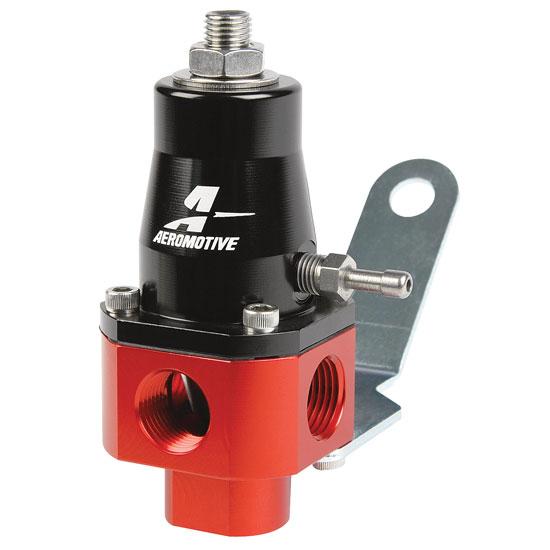

Aeromotive 13301 Bypass Fuel Pressure Regulator, 3-60 PSI

SAME DAY SHIPPING!

Specs
Overall Height:
3.88
Sold in Quantity:
Each
Thread Pitch:
3/8" NPT
Fuel Type:
Gasoline
MFG. Part #:
13301
Notes
Adjustable from 3 to 20 PSI or from 20-65 PSI with high pressure spring (included). Max pump flow is 250 GPH.

Share by Email

From
To

Click image to enlarge

X

Details

Reviews

Q & A

What's in the Box

A dual purpose, universal fuel pressure regulator for EFI or carbureted applications. Base fuel pressure is adjustable from 3 to 20 PSI with standard spring(installed), or from 20 to 60 PSI with high pressure spring (included). Also acts as a rising rate fuel pressue regulator which raises pressure on a 1:1 ratio with boost. All ports are 3/8" NPT, with one inlet and three outlets on the main body and one return port on the bottom. Bypass fuel pressure regualtor design provides the ultimate, dynamic fuel pressure control.

  • Gasoline compatible only
  • Can regulate any fuel pump between 100 and 250 GPH
  • Fuel pressure rises on a 1:1 ratio when referencing boost
  • All ports are 3/8” NPT, with one inlet and three outlets on the main body and one return port on the bottom
  • Bypass design provides the ultimate, dynamic fuel pressure control

910-12804 Instructions (PDF)

Note: Requires a return line to be installed from the bottom of the regulator to the top of the tank.
