Aeromotive 12304 100 Micron Stainless Steel Fuel Filter, ORB-10 Ports

Free Shipping Free Shipping
Specs
Material Type:
Aluminum
Sold in Quantity:
Each
Finish:
Anodized
Fuel Type:
Gasoline/Alcohol
Filter Element Type:
Stainless Steel Mesh
Outlet Fitting:
-10 AN
MFG. Part #:
12304
Overall Length:
5.50
Overall Diameter:
2.00
GTIN Code:
684980000245

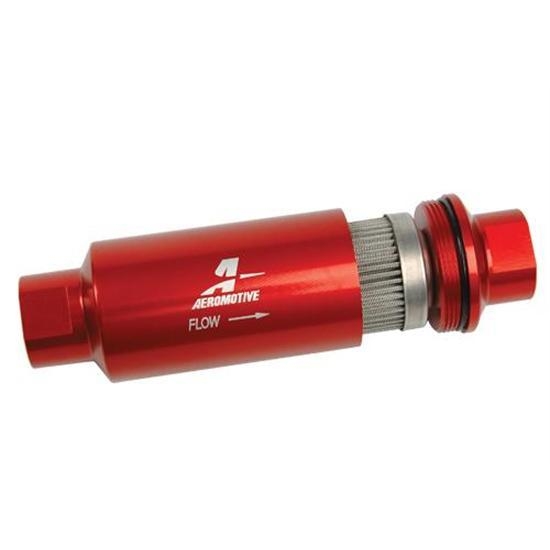

Aeromotive 12304 100 Micron Stainless Steel Fuel Filter, ORB-10 Ports

Click image to enlarge

Details

Reviews (0)

Q & A (0)

What's in the Box

Info

Engineered to support 200-3000 HP, these Aeromotive high flow fuel filters are an inexpensive insurance policy to protect your investment. Filters measure 5.5" long and 2" diameter. Contains -10 AN port fittings on the inlet and outlet. Machined from 6061-T6 aircraft aluminum and anodized for a corrosion resistant show car quality appearance. Ideal for carburetion or fuel injection up to 150psi.

  • High-flow, 100-micron stainless steel (coarse) cleanable element
  • Flows 2,000 lb/hr with a pressure drop of less than 1 PSI
  • Compact size: 5.5” long x 2” diameter
  • All filter assemblies feature an O-ring for positive sealing in high pressure applications
  • CNC-machined from 6061-T6 aircraft aluminum
  • Bright dip red anodized finish for a corrosion resistant, show car quality appearance

Note: 100-micron filters are designed for use between the fuel tank and the fuel pump to protect the pump.

Item Details

Alcohol and E-85 compatible.
Reuseable element.
Use between tank & pump.
