Aero Race Wheels 54-300002 Beadlock Mudcover Installation Kit

Specs
Material Type:
Steel
Sold in Quantity:
Each
Finish:
Zinc
MFG. Part #:
54-300002
Aero Race Wheels 54-300002 Beadlock Mudcover Installation Kit

Click image to enlarge

Please note the following about this product:

  • This item is sold as a kit.

Details

Reviews (0)

Q & A (0)

What's in the Box

Info

This kit is designed to be used to install mudcovers on AERO beadlock wheels.  Stepped quarter turn springs mount easily with pop rivets.  The step is approximately 0.250". Overall height of spring is 0.400" to 0.425".  Mounting hole distance from center to center of rivet holes is 1-3/8"

  • Steel zinc finish
  • Use to install mudcover on AERO beadlock wheels
  • Includes:
    • (3) zinc plated steel 1/4 turn springs
    • (6) 1/8" aluminum pop rivets

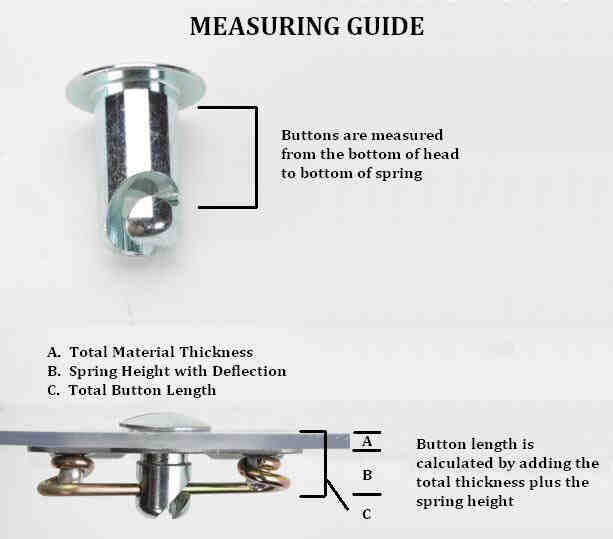

Measurement Guide (Link)
