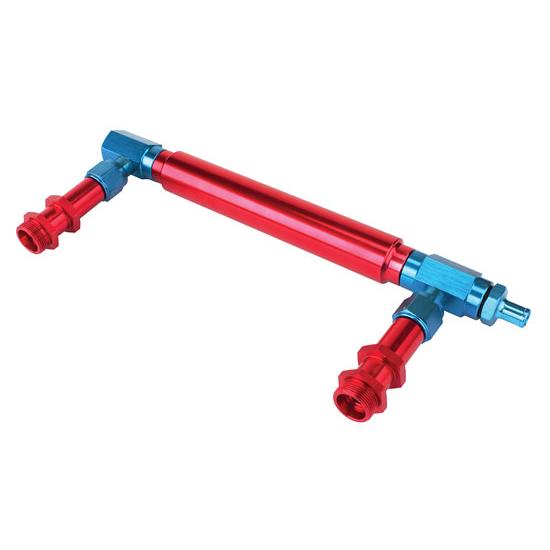

Adjustable Fuel Log for 4150 Holley Style Carbs

Notes
617-4018 is the aluminum replacement washer. 427-26102 for nylon.
Adjustable Fuel Log for 4150 Holley Style Carbs
Adjustable Fuel Log for 4150 Holley Style Carbs
Adjustable Fuel Log for 4150 Holley Style Carbs

Click image to enlarge

Details

Reviews (6)

Q & A (4)

What's in the Box

Info

These CNC aluminum fuel logs are adjustable which allows them to fit carbs easier. It is designed to permit removing/replacing either bowl (or both) without having to use a wrench on the fuel line. A double O-ring in the slide prevents leaks.

  • 3/8" hose barb inlet
  • 1/8" NPT female port w/ plug on inlet side
  • 9-1/4 Inch Centers

Specs

Distance between lower nut above the threads and the middle nut is 3/4".  From bottom of lower nut to bottom of second nut is 1" and this allows for the 1/4" thick nut.  Overall length bottom of threads to top of blue nut is 3 1/4".  Bottom of threads to underside of nut is 3/8".

Customer Reviews

Rated 4.3 out of 5 by 6 reviewers.
RATING BREAKDOWN
6 reviews
5 Stars
3
4 Stars
2
3 Stars
1
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

hank
Verified Purchaser
daytona beach fl

fits like a glove

July 21, 2016
Anybody can install it in minutes
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Richard
Verified Purchaser
Chouteau, Ok

Nice product

December 20, 2015
Well built,and hooked up great.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Bootleg
Verified Purchaser
Verified Reviewer
Central California

Fuel Log

October 28, 2015
This fuel log works well and adjusts nicely. I ordered it for the Holley ultra hp carb and it will not fit correctly. The fuel log hits on the secondary linkage requiring it to be ground down so you can tighten it up without contact.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Mike
Verified Purchaser
Verified Reviewer
New Hampshire

Adjustable Fuel Log for 4150 Holley Crab

August 03, 2015
This item was a direct fit with no issues,well made and designed
Pros:
  • Nice Fit And Finsh
Cons:
  • None
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

sbc350
LI,NY

Duel Feed fuel log

May 25, 2010
This fuel log is very good. Great color. Fits Great. Works like it should. The only problem is I had to grind down the second hex nut of the fuel bowl extension because it got caught on the fuel bowl screw and prohibited it from tightening down enough seal. After I ground the nut down it sealed perfect and works just like it should.
Pros:
  • Looks Great
  • Tight but perfect fit
  • No leaks
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

PROJNK
Prairie Grove AR.

Great product at the right price.

April 24, 2010
I use the log for rear inlet. Really good fit with low or high rise intake. Did not come with inlet fitting gaskets.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

4 questions : 4 answers

1 answers

what size of o-rings are used on the ends that go into the center section? I have one of these and it started leaking out one end. I have checked all around at the parts houses and cannot find a correct o-ring. I believe that it is a 1/2 id x 3/4 od. everything that I can find is 1/2 id x 11/16 od and it fits loose and leaks. thanks

taborkr
May 05, 2014

what size of o-rings are used on the ends that go into the center section? I have one of these and it started leaking out one end. I have checked all around at the parts houses and cannot find a correct o-ring. I believe that it is a 1/2 id x 3/4 od. everything that I can find is 1/2 id x 11/16 od and it fits loose and leaks. thanks

Answers

May 05, 2014
EricM
You may need to get O-rings from a large supply house such as McMaster Carr. They offer a much larger variety of sizes than a local parts store will. Sorry I do not offer the correct replacement O-rings.
1 answers

Does this have a plug for a return line on the outlet side?

racinrick
kentucky
March 11, 2013

Does this have a plug for a return line on the outlet side?

Answers

March 11, 2013
Jason
This aluminum fuel log does hot have provisions for a return line. It does have a 1/8" NPT port on lnlet side for a fuel pressure gauge. We do offer part #9104711 that has a 3/8" NPT port for a return line or part #91011595 that has a 3/4" NPT port
1 answers

What is the thread size on the inside of the hose barb inlet? AN or standard thread size?

May 12, 2011

What is the thread size on the inside of the hose barb inlet? AN or standard thread size?

Answers

May 13, 2011
Jason
This is a special thread pitch and fitting can not be changed.
1 answers

How far does this fuel log adjust?

Timj1966
April 28, 2015

How far does this fuel log adjust?

Answers

April 29, 2015
Eric
Expert
The fuel log has O-rings that seal the ends and it provides a limited amount of adjustment for different spacings from fuel bowl inlet to fuel bowl inlet.
Page 1 of 1
