Garage Sale - Pedal Car Parts, AMF 508/519 Front Axle Assembly

SAME DAY SHIPPING! Order within the next 4 hours 42 minutes and receive same day shipping

Specs
Material Type:
Steel
Sold in Quantity:
Each
Finish:
Powder Coated
Overall Height:
6.750
Overall Width:
17.500
Overall Length:
8.130
Shaft Diameter:
0.380
Centerline of Holes (Alternate):
5.840
Notes
Inside diameter for dowel hinge is .38"

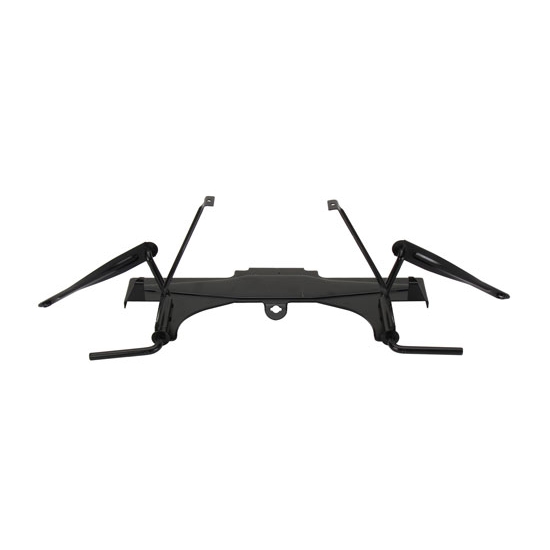

Garage Sale - Pedal Car Parts, AMF 508/519 Front Axle Assembly

Click image to enlarge

Details

Reviews (0)

Q & A (1)

What's in the Box

Info

AMF 508/519 Front Axle Assembly

Select the link below to view all parts for your pedal car.

Please refer to application tab to double check part fitment.

Parts shown in the exploded view but not listed are currently not available. Sorry!

Exploded Parts View for AMF 508-519 Firefighter (Link)



Clearance!



NO WARRANTY, NO RETURNS ON GARAGE SALE ITEMS


Application

Applicable to:

  • AMF 508-519 Firefighter

Specs


Customer Reviews

This product has no reviews.

Product Q&A

1 questions : 1 answers

1 answers

There are two part # for the lights. one is flat and the other pedestal. Is the pedestal light shown in the diagram and what does the flat one look like? just bought an original "Fire Department No. 1 Ladder Company" at an auction and only the light is bu

Ontario Canada
October 01, 2011

There are two part # for the lights. one is flat and the other pedestal. Is the pedestal light shown in the diagram and what does the flat one look like? just bought an original "Fire Department No. 1 Ladder Company" at an auction and only the light is bu

Answers

October 03, 2011
Ken
The isometric drawing (or, “exploded” view) of the 508/519 pedal car illustrates the flat mount fire light. On pedal cars that originally had the flat mount light, the mounting holes for the mounting screws were oriented side-by-side (about 1.75” apart). The cars with a pedestal mount light had the mounting holes oriented front-to-back and they were 2” apart. The FLAT-mount light can be used on either car, but the PEDestal mount light is only suitable for the cars with mounting holes one-behind-the-other. Thank you for choosing Blue Diamond Classics!
