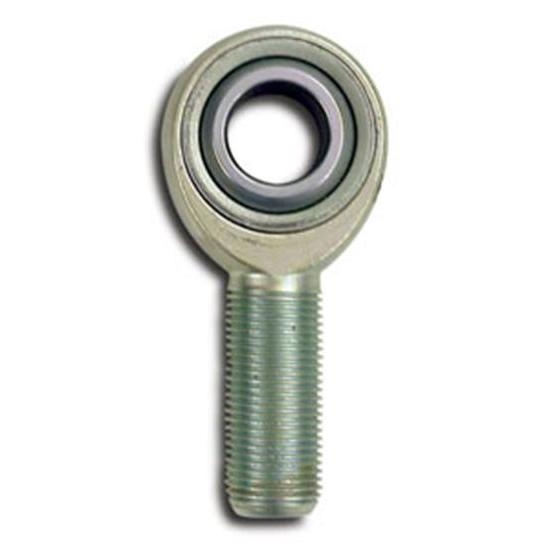

AFCO 10441 Standard Steel Heim Rod End, 1/2-20 LH Male

AFCO 10441 Standard Steel Heim Rod End, 1/2-20 LH Male
AFCO 10441 Standard Steel Heim Rod End, 1/2-20 LH Male

Click image to enlarge

Speeday Motors Logo
X
AFCO 10441 Standard Steel Heim Rod End, 1/2-20 LH Male

Details

Reviews

Q & A

What's in the Box

  • Excellent for use as a medium-duty suspension rod end
  • Ball - Case hardened steel hard chrome plated
  • Race - N/A
  • Body - Low carbon steel chromate treated

Item Details

Bore: 1/2"
Shank: 1/2"

You may also be interested in:

Aluminum Heim Joint Rod Ends, 1/2-20 LH Male


Aluminum rod ends have close tolerance, 3-piece, medium duty design. Hard anodized 7075-T6 aerospace quality aluminum body. Heat treated, 5210 precision ground ball with a Kevlar race. Self lubricating Teflon liner seals out dirt an debris

Applications: Designed for motorsports application where weight is critical. All of the strength & features of the Precision rod ends at half of the weight.

Assebly Tip:
  To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.

Aluminum Rod End Chart (GIF)

Pro-1 Chromoly Heim Joint Rod Ends, 1/2-20 LH Male


These Pro-1 rod ends are general purpose, 2-piece, heavy duty rod ends. They feature a chromoly steel body and are black oxide coated to resist corrosion. Heat treated, precision ground ball without a race (metal to metal contact). Pro-1 ends will withstand a greater static load than our "Standard" or "Precision" rod ends.

Applications: Steering & suspension components on moderate to high horsepower applications.

Assembly Tip: To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.

Pro-1 Rod End Chart (GIF)

Precision Carbon Steel LH Male Heim Joint Rod Ends, 1/2 Inch
                        Precision steel rod ends provide greater strength than our "standard" rod ends. They have close tolerance and have a 3 piece medium duty rod end. Carbon steel body, 5210 precision ground ball and feature a Teflon Kevlar race. Self lubrication teflon liner to seal out dirt and debris. Shank and hole are the same size.

Applications: Clutch, Brake, Steering & Suspension Components. Quieter, Smoother, & More Durable Than 2 Piece Rod Ends. Tight Tolerance of Kevlar Race Reduces "Slop" In Steering & Suspension.

ASSEMBLY TIP:
To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.

Precision Rod Ends Chart Application (GIF)

Speedway Steel 1/2 Inch LH Male Heim Joint Rod Ends with Stud
                        These rod ends make it easy to build carb or shift linkage, tie rod assemblies or anything else you can think of.  They are teflon lined.

AFCO 10440 Standard Steel Heim Rod End, 1/2-20 RH Male

  • Excellent for use as a medium-duty suspension rod end
  • Ball - Case hardened steel hard chrome plated
  • Race - N/A
  • Body - Low carbon steel chromate treated
AFCO 10443 Standard Steel Heim Rod End, 1/2-20 LH Female

  • Excellent for use as a medium-duty suspension rod end
  • Ball - Case hardened steel hard chrome plated
  • Race - N/A
  • Body - Low carbon steel chromate treated
AFCO 10445 Aircraft Quality Heim Rod End, 1/2-20 LH Male

  • Designed for high-stress usage
  • Ideal for panhard bar or drag components
  • Ball - 52100 steel, hard chrome plated
  • Race - Heat treated steel alloy, zinc plated
  • Body - Heat treated steel alloy, zinc plated
AFCO 10145 Steel Jam Nut, 1/2-20 LH


Steel fine thread jam nuts for use with rod ends, heim joints, and clevis.

Seals-It WS5001 Heim Joint Rod End Seals, 1/2 Inch Hole, Set/6


These rod end seals are a neoprene rubber seal bonded to an aircraft quality washer. Extends the life of your rod ends by keeping the dirt, debris and moisture out of the spherical ball. They fit on both sides of the ball end of the heim joint and are sized to match the hole in the spherical ball.

For use with standard and Pro 1 Series rod end only. Sold in sets of six, which will cover both sides of three rod ends.
