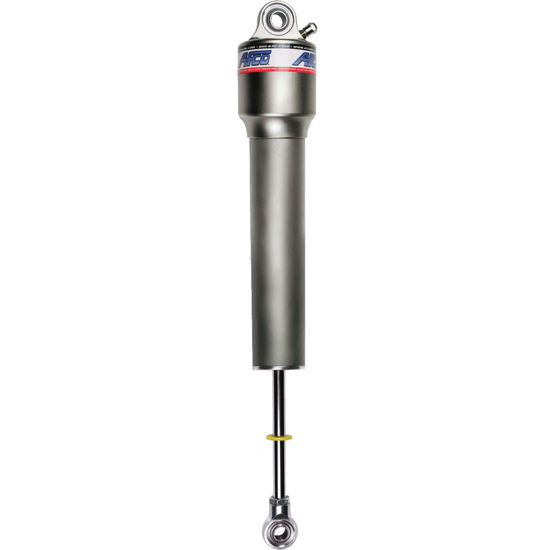

AFCO Silver 57 Series Gas Bulb Shocks w/ Schrader Valve
AFCO Silver 57 Series Gas Bulb Shocks w/ Schrader Valve

AFCO Silver 57 Series Gas Bulb Shocks w/ Schrader Valve

0 Reviews | 0 Answered Questions
In Stock
Ships FREE
AFCO Silver 57 Series Gas Bulb Shocks w/ Schrader Valve
Image Gallery
AFCO Silver 57 Series Gas Bulb Shocks w/ Schrader Valve AFCO Silver 57 Series Gas Bulb Shocks w/ Schrader Valve
AFCO Silver 57 Series Gas Bulb Shocks w/ Schrader Valve
Zoomed In Image
Part # 10657
Starting from
$249.99
each
Quantity:
Length
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Articles

Details

MFG. Part #:
Select Length/Compression/Rebound to see
Shock Type:
Mono Tube
Adjustability:
Non-Adjustable
Coil-Over Compatible:
Yes
Shock Body Material:
Steel
Shock Body Size:
Large Body
Shock Body Type:
Smooth
Gas Pressure Adjustable:
Yes
Shock Stroke:
Select Length/Compression/Rebound to see
Upper Shock Mount:
1/2 Inch Eyelet
Lower Shock Mount:
1/2 Inch Eyelet
Extended Length:
Select Length/Compression/Rebound to see
Compressed Length:
Select Length/Compression/Rebound to see
Body Diameter:
1.97"
Valve Positions:
Select Length/Compression/Rebound to see
Finish:
Powder Coated
Bushing Material:
Steel
Sold in Quantity:
Each
Notes:
IMCA Legal
Inside Diameter:
46 mm
Bulb Diameter:
2.75"
Shock Eyelet Width:
.625"
Bolt Hole Circle:
.500"
Hardware Included:
No

Info

AFCO Silver 57 Series Bulb Shocks feature a bulb design for reduced gas pressure gain and increased feel for worry-free racing.

  • Ultra-strong DURox chrome shaft
  • Owner serviceable
  • Easily tuned for any track condition
  • Without base valve w/ Schrader valve

Tuning Guide (PDF)

Application

  • Dirt Late Model/Crate Late Model
  • Recommended 4-Link Gas Shocks-Base Valve w/ Schrader Valve
    • Left Rear Shocks (w/Spring Behind)
      • 10657-9-7-2 - Base Track Condition
      • 10657-9-9-2 - Slick Track Condition
      • 10657-9-6-3 - Rough Track Condition
  • Recommended Swing Arm Gas Shocks-Base Valve w/ Schrader Valve
    • Left Rear Shocks
      • 10657-9-4-4 - Base Track Condition
      • 10657-9-6-3 - Slick Track Condition
      • 10657-9-4-6 - Rough Track Condition
Some parts are not legal for use in California or other states with similar laws/regulations

What's In The Kit

Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
Select a Length/Compression/Rebound above to see what items are in this kit.
