AFCO 80113N O-Ring Inlet Style Radiator, Right Side Filler Neck

SAME DAY SHIPPING! Order within the next 12 hours 48 minutes and receive same day shipping

Free Shipping Free Shipping
Specs
Material Type:
Aluminum
Tube Style:
Crossflow
Sold in Quantity:
Each
Row Quantity:
Dual
Inlet Location:
Upper Left
Outlet Location:
Lower Right
Finish:
Satin
Radiator Style:
Single Pass
Transmission Cooler:
No
Shroud:
No
Overall Height:
20.00
Overall Width:
27.50
Overall Thickness:
3.00
Inlet Size:
1.50
Core Height:
18.44
Core Width:
22.38
Core Thickness:
2.25
Tube Size:
1.00

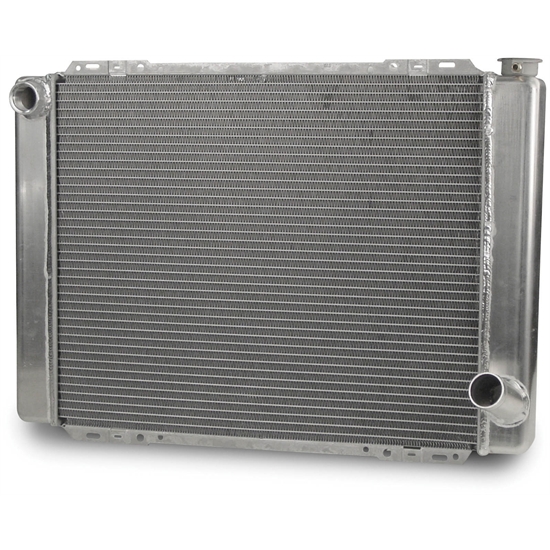

AFCO 80113N O-Ring Inlet Style Radiator, Right Side Filler Neck

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

These radiators feature a 16AN O-ring bung that allows the user to choose a -20AN, -16AN, -12AN, or -10AN inlet.  these radiators utilize the same port style fittings and O-rings as some oiling systems use for a high-pressure positive seal.  O-ring inlet style radiators allow the consumer to choose the correct inlet for their application.

  • Overall Height - 20"
  • Core Width - 22-1/2"
  • Tank Height - 18-1/2"
  • Tank Width Top - 27-1/2"
  • Tank Width Bottom - 27-1/2"
  • Tank Thickness - 3"
  • Outlet Size - 1-3/4"
  • Outlet Angle Up/In - 30°/10°

Instructions (PDF)

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.

Customer Reviews

This product has no reviews.

Product Q&A

1 questions : 1 answers

1 answers

what are the deminsions

scott
northridge
December 20, 2011

what are the deminsions

Answers

December 21, 2011
Jason
Overall Height - 20" Core Width - 221/2 " Tank Height - 181/2 " Tank Width Top - 271/2 " Tank Width Bottom - 271/2 " Tank Thickness - 3" Outlet Size - 13/4 " Outlet Angle Up/In - 30°/10°
