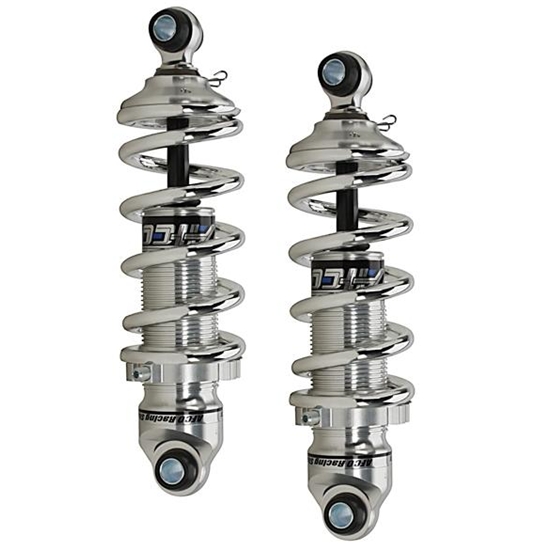

AFCO Non-Adjustable Alum. Coil-Over Shock Kit, 7 Inch Stroke, 13 Inch Comp.

Specs
Material Type:
Steel
Sold in Quantity:
Kit
Finish:
Chrome
Inside Diameter:
2.625
Extended Length:
-
Spring Rate:
-
Upper Shock Mount:
5/8 Bushing
Lower Shock Mount:
5/8 Bushing
Shock Body Material:
Aluminum
Garage Sale:
No
AFCO Non-Adjustable Alum. Coil-Over Shock Kit, 7 Inch Stroke, 13 Inch Comp.

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

AFCO has been building racing shocks for over 20 years and are now applying their technology to street rod shocks. These aluminum coilover shock kits have superior FIXED valving that will give you a better ride and improve handling.

  • Each shock is hand built and dyno tested
  • Supplied with two 5/8" I.D. polyurethane bushings
  • Includes AFCO Mirror Finish coilover springs in the rate of your choice
  • Kit includes (2) shocks, (2) springs, and (2) coil-over hardware kits

Warranties

Afcoil springs are manufactured using the finest spring material available. They are designed for extended life and consistent performance. They are guaranteed to do the job for which they are designed for as long as they are owned by the original purchaser.

AFCO will replace any Afcoil spring that ever exceeds the maximum allowable 2% loss of free height from original nominal specification. One way freight is included.

  1. Guarantee applies to original retail purchaser only.
  2. Damaged springs not covered by warranty.
  3. Spring must be returned to AFCO freight prepaid along with a copy of the original invoice.
  4. No other warranty, either expressed or implied, applies to Afcoil springs.
(Warranty not valid without invoice.)

Item Details

7 Inch Stroke
13 Inch Compression
20 Inch Extension

Customer Reviews

This product has no reviews.

Product Q&A

1 questions : 1 answers

just wondering why the spring rates on the longer springs are much lower ratings than the shorter units? I want these to hold up the back of a model-t coupe. rear of car is approx 1000 lbs. sprung weight. Shocks mounted at 20 degrees. Thanks, Mike Kidd

1 answers
November 22, 2011

just wondering why the spring rates on the longer springs are much lower ratings than the shorter units? I want these to hold up the back of a model-t coupe. rear of car is approx 1000 lbs. sprung weight. Shocks mounted at 20 degrees. Thanks, Mike Kidd

Answers

November 23, 2011
John
Part # 1061370 The longer the shock, stroke, and spring length the lighter the spring rate required to handle the same vehicle weight. Mount length is the most critical area of concern as 50-60% of the shock stroke needs to be available for compression during suspension travel. This mount length is for a completed rod ready to hop in and head down the road. With the 14” spring used on this shock a suggested rate would be 110 pound and mount length needs to be 16.5” to 17”. This would be for a vehicle with 1000-1100 pounds on the rear and total weight around 2000 pounds.
