AFCO IMCA Steel Brake Hat, 3 Inch Offset

Specs
Material Type:
Steel
Sold in Quantity:
Each
Finish:
Black Oxide
Rotor Hat Bolt Pattern:
8 x 7.00"
Bolt Pattern:
Multi: 5 on 5"/4.75"/4.50"
MFG. Part #:
9001-0010
Inside Diameter:
3.06
Outside Diameter:
6.38
Offset:
3.00
Weight:
1.75

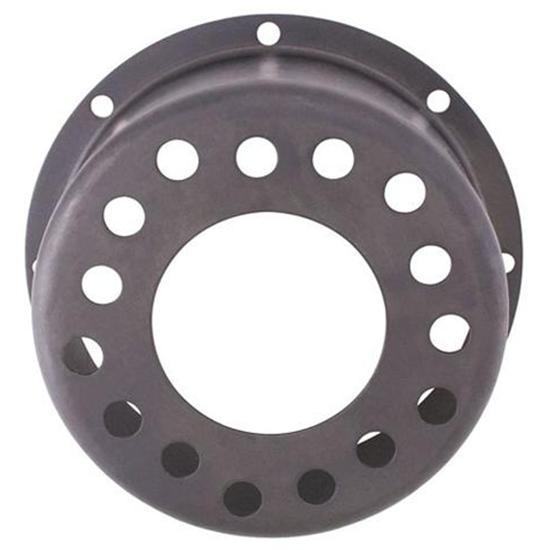

AFCO IMCA Steel Brake Hat, 3 Inch Offset

Click image to enlarge

Details

Reviews (0)

Q & A (1)

What's in the Box

Info

  • Spun steel hat with 5 on 4-1/2", 5 on 4-3/4" and 5 on 5" bolt circle patterns
  • Rotor: 7" bolt circle; eight holes
  • Hub with .50" diameter mounting holes
  • 3.00" offset
  • 3.06" diameter of center hole
  • Weighs just 2 lbs.
  • IMCA approved
  • 5.83" clearance I.D.

Note: Axle flanges may require machining for hats.

Item Details

Rotor Hat 4-1/2", 5-3/4", 5"
Offset: 3.00"
Rotor B.C.: 8 Bolt X 7"

Customer Reviews

This product has no reviews.

Product Q&A

1 questions : 1 answers

1 answers

how is offset measured on a brake hat

ppp123
March 05, 2014

how is offset measured on a brake hat

Answers

March 06, 2014
EricM
The offset is measured from the surface that sits against the axle or hub to the surface that the rotor bolts onto.
