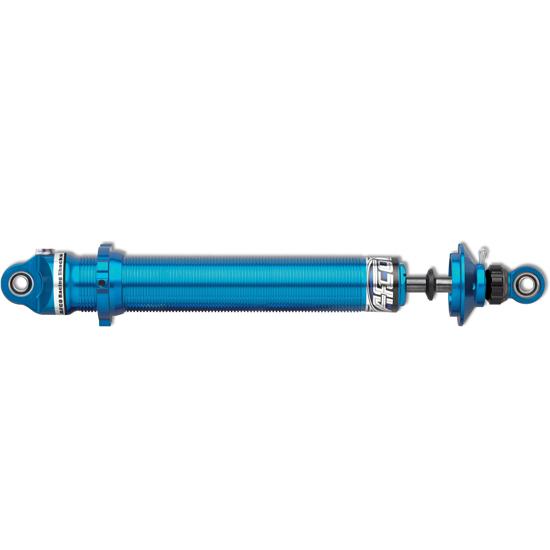

AFCO 3895M Eliminator Rear Shocks, Single Adj - Mopar

SAME DAY SHIPPING! Order within the next 12 hours 49 minutes and receive same day shipping

AFCO 3895M Eliminator Rear Shocks, Single Adj - Mopar
AFCO 3895M Eliminator Rear Shocks, Single Adj - Mopar

Click image to enlarge

Speeday Motors Logo
X
AFCO 3895M Eliminator Rear Shocks, Single Adj - Mopar

Details

Reviews

Q & A

What's in the Box

AFCO Eliminator Twin Tube Adjustable REAR shocks are built specifically for drag racing. Using advanced onboard diagnostics, AFCO developed the Eliminator Series to precisely control your race car at every point on the track. With the easy-to-use, repeatable "click" settings, this shock will give you unsurpassed traction.

Single (Rebound) Adjustable shocks are an economical alternative that gives you the ability to adjust rebound dampening control without affecting the compression dampening characteristics of the shock.

  • Lightweight aluminum construction easily dissipates heat
  • Rebound settings are adjusted via a shaft-mounted knob with 32 clicks
  • Smooth, Ultra Low Friction rod guide
  • Low resistance allows internals to function to their fullest potential
  • Almost no "stiction" to interfere with putting the power down
  • Coil-over Ready

See Applications tab for Chrysler/Dodge/Plymouth chassis fittment.

Application

Warning - The chart below is a general guide only. We highly recommend you measure your chassis for proper length and mount points before ordering.

How to Choose Shock Length

  • CHRYSLER
    • '74-'78 Fullsize
    • '57-'64 Fullsize
  • DODGE
    • '70-'74 Challenger
    • '65-'72 Charger/Coronet
    • '75-'76 Cordoba
    • '77-'79 Magnum
    • '64-'76 Dart
    • '62-'78 Monaco
    • '61-'62 Monaco
  • PLYMOUTH
    • '64-'74 Barracuda
    • '73-'74 Satellite/Belvedere
    • '65-'72 Satellite/Belvedere
    • '62-'70 Savoy/Fury/Belvedere
    • '67-'70 GTX
    • '68-'75 Roadrunner
    • '64-'76 Duster/Valiant

Notes

  1. The rebound adjustment is the most critical in tuning a drag racing set-up. This adjustment allows the tuner to dial in the "un-loading action" of the chassis and keep the tires planted during the critical first 60' down the track.
  2. Coil-over kit hardware is included. Coil spring NOT included.

Specs

  • Body Mount:  5/8" I.D. Bearing (1/2" wide)
  • Shaft Mount:  1/2" I.D. Bearing (5/8" wide)

Item Details

Single Adjustable
15.90" Comp, 24.90" Ext
