AFCO Economy Universal GM Aluminum Racing Radiator, 27-1/2 Inch

Specs
Material Type:
Aluminum
Overall Height:
19.68
Overall Width:
27.25
Transmission Cooler:
No
Tube Style:
Crossflow
Sold in Quantity:
Each
Overall Thickness:
3.00
Row Quantity:
Dual
Finish:
Natural
Inlet Location:
Upper Left
Inlet Size:
1.50
Outlet Location:
Lower Right
Core Height:
18.25
Core Width:
22.25
Core Thickness:
2.25
Filler Neck Height:
1.00
Radiator Style:
Single Pass
MFG. Part #:
80101A

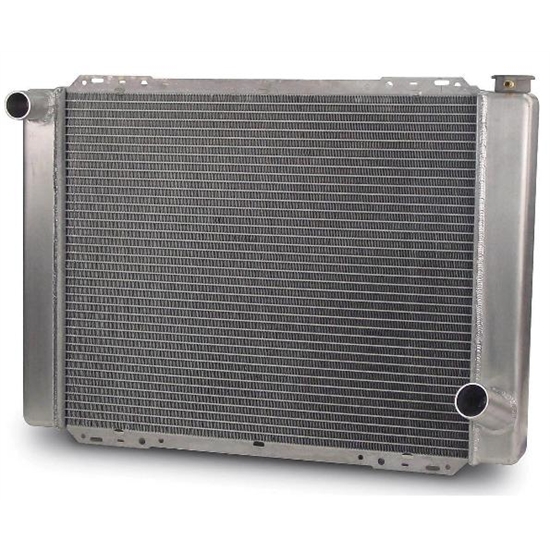

AFCO Economy Universal GM Aluminum Racing Radiator, 27-1/2 Inch
AFCO Economy Universal GM Aluminum Racing Radiator, 27-1/2 Inch

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

This universal racing radiator offers the same great quality and performance you've come to expect from AFCO, but at a more affordable price for the budget-minded racer. It is a Chevy-style universal radiator with the upper hose neck on the driver's side and the lower neck on the passenger side.

  • Overall Height = 20"
  • Core Width = 22.5"
  • Tank Height = 18.5"
  • Tank Width Top = 27.5"
  • Tank Width Bottom = 27.5"
  • Tank Thickness = 3"

Instructions (PDF)

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance
