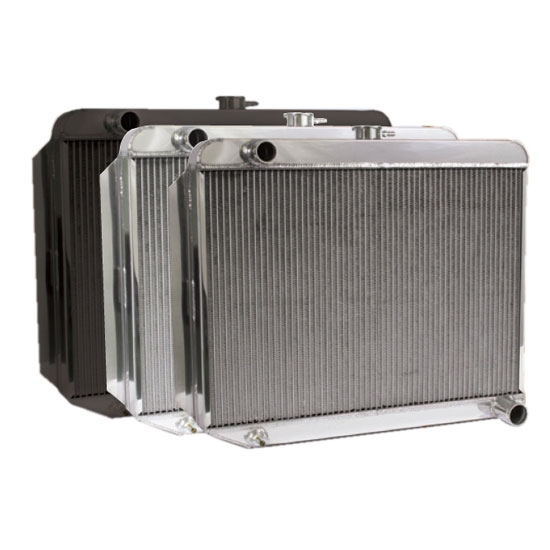

AFCO Direct Fit '60-'78 Mopar A, B, E-Body Rad, 26 x 22 Inch, Driver Side Inlet

Price: $371.99 - $1,234.99
Sale: $235.99 - $1,234.99
Up to $136.00 off
AFCO Direct Fit Radiators - 26" x 22"
Item #:
10683295
Item Details:
Driver Side Inlet
AFCO Direct Fit '60-'78 Mopar A, B, E-Body Rad, 26 x 22 Inch, Driver Side Inlet
Click image to enlarge Click image to enlarge
  • AFCO Direct Fit '60-'78 Mopar A, B, E-Body Rad, 26 x 22 Inch, Driver Side Inlet
  • AFCO Direct Fit '60-'78 Mopar A, B, E-Body Rad, 26 x 22 Inch, Driver Side Inlet
  • AFCO Direct Fit '60-'78 Mopar A, B, E-Body Rad, 26 x 22 Inch, Driver Side Inlet




AFCO's Direct Fit aluminum radiators will bolt directly into your Chrysler A, B, or E-Body with no hassles. AFCO ensures that the bolt holes will line up, cooling lines are in the proper locations, your choice of either a driver's side or passenger side lower hose application, and OEM fan shrouds and accessories bolt up with ease. Plus, with two rows of 1" cores perfectly matched to the application, this unit has the capacity to cool both Small Blocks and Big Blocks (even with a power adder!).

  • 100% aluminum construction (no epoxy)
  • Furnace brazed core - 2 rows of 1" tubes
  • Tanks are made of .080” aluminum for strength and durability
  • TIG welded by skilled craftsmen in the USA
  • Factory fan shroud provisions
  • Inlets and outlets are factory-style and in stock locations
  • Billet filler necks feature screw-in bleed – won't crack or leak with age
  • Factory pressure-tested

Instructions (PDF)

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.

  • 10683295-B-SP-N
    Overall Width
    26.380"
    Overall Height
    22.000"
    Overall Thickness
    3.000"
    Core Width
    26.380"
    Core Height
    17.500" (17 1/2")
    Core Thickness
    2.130"
    Inlet Location
    Upper Left
    Outlet Location
    Lower Right
    Inlet Size
    1.500" (1 1/2")
    Outlet Size
    1.750" (1 3/4")
    Tube Size
    1.000"
    Tube Style
    Downflow
    Radiator Style
    Single Pass
    Row Quantity
    Dual
    Shroud
    Yes
    Transmission Cooler
    No
    Cooling Fan
    Single
    Material Type
    Aluminum
    Finish
    Painted
    Color
    Black
    Sold in Quantity
    Each
  • 10683295-S-NA-Y
    Overall Width
    26.380"
    Overall Height
    22.000"
    Overall Thickness
    3.190"
    Core Width
    26.380"
    Core Height
    17.500" (17 1/2")
    Core Thickness
    2.130"
    Inlet Location
    Upper Left
    Outlet Location
    Lower Right
    Inlet Size
    1.500" (1 1/2")
    Outlet Size
    1.750" (1 3/4")
    Tube Size
    1.000"
    Tube Style
    Downflow
    Radiator Style
    Single Pass
    Row Quantity
    Dual
    Transmission Cooler
    Yes
    Shroud
    No
    Material Type
    Aluminum
    Finish
    Satin
    Sold in Quantity
    Each
  • 10683295-S-NA-N
    Overall Width
    26.380"
    Overall Height
    22.000"
    Overall Thickness
    3.190"
    Core Width
    26.380"
    Core Height
    17.500" (17 1/2")
    Core Thickness
    2.130"
    Inlet Location
    Upper Left
    Outlet Location
    Lower Right
    Inlet Size
    1.500" (1 1/2")
    Outlet Size
    1.750" (1 3/4")
    Tube Size
    1.000"
    Tube Style
    Downflow
    Radiator Style
    Single Pass
    Row Quantity
    Dual
    Transmission Cooler
    No
    Shroud
    No
    Material Type
    Aluminum
    Finish
    Satin
    Sold in Quantity
    Each
  • 10683295-P-DB-N
    Overall Width
    26.380"
    Overall Height
    22.000"
    Overall Thickness
    3.000"
    Core Width
    26.380"
    Core Height
    17.500" (17 1/2")
    Core Thickness
    2.130"
    Inlet Location
    Upper Left
    Outlet Location
    Lower Right
    Inlet Size
    1.500" (1 1/2")
    Outlet Size
    1.750" (1 3/4")
    Tube Size
    1.000"
    Tube Style
    Downflow
    Radiator Style
    Single Pass
    Row Quantity
    Dual
    Transmission Cooler
    No
    Shroud
    Yes
    Cooling Fan
    Double
    Material Type
    Aluminum
    Finish
    Polished
    Sold in Quantity
    Each
  • 10683295-B-SS-Y
    Overall Width
    26.380"
    Overall Height
    22.000"
    Overall Thickness
    3.000"
    Core Width
    26.380"
    Core Height
    17.500" (17 1/2")
    Core Thickness
    2.130"
    Inlet Location
    Upper Left
    Outlet Location
    Lower Right
    Inlet Size
    1.500" (1 1/2")
    Outlet Size
    1.750" (1 3/4")
    Tube Size
    1.000"
    Tube Style
    Downflow
    Radiator Style
    Single Pass
    Row Quantity
    Dual
    Shroud
    Yes
    Transmission Cooler
    Yes
    Cooling Fan
    Single
    Material Type
    Aluminum
    Finish
    Painted
    Color
    Black
    Sold in Quantity
    Each
  • 10683295-S-SS-Y
    Overall Width
    26.380"
    Overall Height
    22.000"
    Overall Thickness
    3.190"
    Core Width
    26.380"
    Core Height
    17.500" (17 1/2")
    Core Thickness
    2.130"
    Inlet Location
    Upper Left
    Outlet Location
    Lower Right
    Inlet Size
    1.500" (1 1/2")
    Outlet Size
    1.750" (1 3/4")
    Tube Size
    1.000"
    Tube Style
    Downflow
    Radiator Style
    Single Pass
    Row Quantity
    Dual
    Transmission Cooler
    Yes
    Shroud
    Yes
    Cooling Fan
    Single
    Material Type
    Aluminum
    Finish
    Satin
    Sold in Quantity
    Each
  • 10683295-P-SB-Y
    Overall Width
    26.380"
    Overall Height
    22.000"
    Overall Thickness
    3.000"
    Core Width
    26.380"
    Core Height
    17.500" (17 1/2")
    Core Thickness
    2.130"
    Inlet Location
    Upper Left
    Outlet Location
    Lower Right
    Inlet Size
    1.500" (1 1/2")
    Outlet Size
    1.750" (1 3/4")
    Tube Size
    1.000"
    Tube Style
    Downflow
    Radiator Style
    Single Pass
    Row Quantity
    Dual
    Transmission Cooler
    Yes
    Shroud
    Yes
    Cooling Fan
    Single
    Material Type
    Aluminum
    Finish
    Polished
    Sold in Quantity
    Each
  • 10683295-P-SB-N
    Overall Width
    26.380"
    Overall Height
    22.000"
    Overall Thickness
    3.000"
    Core Width
    26.380"
    Core Height
    17.500" (17 1/2")
    Core Thickness
    2.130"
    Inlet Location
    Upper Left
    Outlet Location
    Lower Right
    Inlet Size
    1.500" (1 1/2")
    Outlet Size
    1.750" (1 3/4")
    Tube Size
    1.000"
    Tube Style
    Downflow
    Radiator Style
    Single Pass
    Row Quantity
    Dual
    Transmission Cooler
    No
    Shroud
    Yes
    Cooling Fan
    Single
    Material Type
    Aluminum
    Finish
    Polished
    Sold in Quantity
    Each
  • 10683295-S-DP-Y
    Overall Width
    26.380"
    Overall Height
    22.000"
    Overall Thickness
    3.190"
    Core Width
    26.380"
    Core Height
    17.500" (17 1/2")
    Core Thickness
    2.130"
    Inlet Location
    Upper Left
    Outlet Location
    Lower Right
    Inlet Size
    1.500" (1 1/2")
    Outlet Size
    1.750" (1 3/4")
    Tube Size
    1.000"
    Tube Style
    Downflow
    Radiator Style
    Single Pass
    Row Quantity
    Dual
    Transmission Cooler
    Yes
    Shroud
    Yes
    Material Type
    Aluminum
    Finish
    Satin
    Sold in Quantity
    Each
  • 10683295-S-DS-Y
    Overall Width
    26.380"
    Overall Height
    22.000"
    Overall Thickness
    3.190"
    Core Width
    26.380"
    Core Height
    17.500" (17 1/2")
    Core Thickness
    2.130"
    Inlet Location
    Upper Left
    Outlet Location
    Lower Right
    Inlet Size
    1.500" (1 1/2")
    Outlet Size
    1.750" (1 3/4")
    Tube Size
    1.000"
    Tube Style
    Downflow
    Radiator Style
    Single Pass
    Row Quantity
    Dual
    Transmission Cooler
    Yes
    Shroud
    Yes
    Cooling Fan
    Double
    Material Type
    Aluminum
    Finish
    Satin
    Sold in Quantity
    Each
  • 10683295-B-SS-N
    Overall Width
    26.380"
    Overall Height
    22.000"
    Overall Thickness
    3.000"
    Core Width
    26.380"
    Core Height
    17.500" (17 1/2")
    Core Thickness
    2.130"
    Inlet Location
    Upper Left
    Outlet Location
    Lower Right
    Inlet Size
    1.500" (1 1/2")
    Outlet Size
    1.750" (1 3/4")
    Tube Size
    1.000"
    Tube Style
    Downflow
    Radiator Style
    Single Pass
    Row Quantity
    Dual
    Shroud
    Yes
    Transmission Cooler
    No
    Cooling Fan
    Single
    Material Type
    Aluminum
    Finish
    Painted
    Color
    Black
    Sold in Quantity
    Each
  • 10683295-B-NA-N
    Overall Width
    26.380"
    Overall Height
    22.000"
    Overall Thickness
    3.000"
    Core Width
    26.380"
    Core Height
    17.500" (17 1/2")
    Core Thickness
    2.130"
    Inlet Location
    Upper Left
    Outlet Location
    Lower Right
    Inlet Size
    1.500" (1 1/2")
    Outlet Size
    1.750" (1 3/4")
    Tube Size
    1.000"
    Tube Style
    Downflow
    Radiator Style
    Single Pass
    Row Quantity
    Dual
    Shroud
    No
    Transmission Cooler
    No
    Material Type
    Aluminum
    Finish
    Painted
    Color
    Black
    Sold in Quantity
    Each
  • 10683295-B-DS-N
    Overall Width
    26.380"
    Overall Height
    22.000"
    Overall Thickness
    3.000"
    Core Width
    26.380"
    Core Height
    17.500" (17 1/2")
    Core Thickness
    2.130"
    Inlet Location
    Upper Left
    Outlet Location
    Lower Right
    Inlet Size
    1.500" (1 1/2")
    Outlet Size
    1.750" (1 3/4")
    Tube Size
    1.000"
    Tube Style
    Downflow
    Radiator Style
    Single Pass
    Row Quantity
    Dual
    Shroud
    Yes
    Transmission Cooler
    No
    Cooling Fan
    Double
    Material Type
    Aluminum
    Finish
    Painted
    Color
    Black
    Sold in Quantity
    Each
  • 10683295-B-DB-N
    Overall Width
    26.380"
    Overall Height
    22.000"
    Overall Thickness
    3.000"
    Core Width
    26.380"
    Core Height
    17.500" (17 1/2")
    Core Thickness
    2.130"
    Inlet Location
    Upper Left
    Outlet Location
    Lower Right
    Inlet Size
    1.500" (1 1/2")
    Outlet Size
    1.750" (1 3/4")
    Tube Size
    1.000"
    Tube Style
    Downflow
    Radiator Style
    Single Pass
    Row Quantity
    Dual
    Shroud
    Yes
    Transmission Cooler
    No
    Cooling Fan
    Double
    Material Type
    Aluminum
    Finish
    Painted
    Color
    Black
    Sold in Quantity
    Each
  • 10683295-B-DB-Y
    Overall Width
    26.380"
    Overall Height
    22.000"
    Overall Thickness
    3.000"
    Core Width
    26.380"
    Core Height
    17.500" (17 1/2")
    Core Thickness
    2.130"
    Inlet Location
    Upper Left
    Outlet Location
    Lower Right
    Inlet Size
    1.500" (1 1/2")
    Outlet Size
    1.750" (1 3/4")
    Tube Size
    1.000"
    Tube Style
    Downflow
    Radiator Style
    Single Pass
    Row Quantity
    Dual
    Shroud
    Yes
    Transmission Cooler
    Yes
    Cooling Fan
    Double
    Material Type
    Aluminum
    Finish
    Painted
    Color
    Black
    Sold in Quantity
    Each
  • 10683295-B-DP-N
    Overall Width
    26.380"
    Overall Height
    22.000"
    Overall Thickness
    3.000"
    Core Width
    26.380"
    Core Height
    17.500" (17 1/2")
    Core Thickness
    2.130"
    Inlet Location
    Upper Left
    Outlet Location
    Lower Right
    Inlet Size
    1.500" (1 1/2")
    Outlet Size
    1.750" (1 3/4")
    Tube Size
    1.000"
    Tube Style
    Downflow
    Radiator Style
    Single Pass
    Row Quantity
    Dual
    Shroud
    Yes
    Transmission Cooler
    No
    Cooling Fan
    Double
    Material Type
    Aluminum
    Finish
    Painted
    Color
    Black
    Sold in Quantity
    Each
  • 10683295-B-DP-Y
    Overall Width
    26.380"
    Overall Height
    22.000"
    Overall Thickness
    3.000"
    Core Width
    26.380"
    Core Height
    17.500" (17 1/2")
    Core Thickness
    2.130"
    Inlet Location
    Upper Left
    Outlet Location
    Lower Right
    Inlet Size
    1.500" (1 1/2")
    Outlet Size
    1.750" (1 3/4")
    Tube Size
    1.000"
    Tube Style
    Downflow
    Radiator Style
    Single Pass
    Row Quantity
    Dual
    Shroud
    Yes
    Transmission Cooler
    Yes
    Cooling Fan
    Double
    Material Type
    Aluminum
    Finish
    Painted
    Color
    Black
    Sold in Quantity
    Each
  • 10683295-B-DS-Y
    Overall Width
    26.380"
    Overall Height
    22.000"
    Overall Thickness
    3.000"
    Core Width
    26.380"
    Core Height
    17.500" (17 1/2")
    Core Thickness
    2.130"
    Inlet Location
    Upper Left
    Outlet Location
    Lower Right
    Inlet Size
    1.500" (1 1/2")
    Outlet Size
    1.750" (1 3/4")
    Tube Size
    1.000"
    Tube Style
    Downflow
    Radiator Style
    Single Pass
    Row Quantity
    Dual
    Shroud
    Yes
    Transmission Cooler
    Yes
    Cooling Fan
    Double
    Material Type
    Aluminum
    Finish
    Painted
    Color
    Black
    Sold in Quantity
    Each
  • 10683295-B-NA-Y
    Overall Width
    26.380"
    Overall Height
    22.000"
    Overall Thickness
    3.000"
    Core Width
    26.380"
    Core Height
    17.500" (17 1/2")
    Core Thickness
    2.130"
    Inlet Location
    Upper Left
    Outlet Location
    Lower Right
    Inlet Size
    1.500" (1 1/2")
    Outlet Size
    1.750" (1 3/4")
    Tube Size
    1.000"
    Tube Style
    Downflow
    Radiator Style
    Single Pass
    Row Quantity
    Dual
    Shroud
    No
    Transmission Cooler
    Yes
    Material Type
    Aluminum
    Finish
    Painted
    Color
    Black
    Sold in Quantity
    Each
  • 10683295-B-SB-N
    Overall Width
    26.380"
    Overall Height
    22.000"
    Overall Thickness
    3.000"
    Core Width
    26.380"
    Core Height
    17.500" (17 1/2")
    Core Thickness
    2.130"
    Inlet Location
    Upper Left
    Outlet Location
    Lower Right
    Inlet Size
    1.500" (1 1/2")
    Outlet Size
    1.750" (1 3/4")
    Tube Size
    1.000"
    Tube Style
    Downflow
    Radiator Style
    Single Pass
    Row Quantity
    Dual
    Shroud
    Yes
    Transmission Cooler
    No
    Cooling Fan
    Single
    Material Type
    Aluminum
    Finish
    Painted
    Color
    Black
    Sold in Quantity
    Each
  • 10683295-B-SB-Y
    Overall Width
    26.380"
    Overall Height
    22.000"
    Overall Thickness
    3.000"
    Core Width
    26.380"
    Core Height
    17.500" (17 1/2")
    Core Thickness
    2.130"
    Inlet Location
    Upper Left
    Outlet Location
    Lower Right
    Inlet Size
    1.500" (1 1/2")
    Outlet Size
    1.750" (1 3/4")
    Tube Size
    1.000"
    Tube Style
    Downflow
    Radiator Style
    Single Pass
    Row Quantity
    Dual
    Shroud
    Yes
    Transmission Cooler
    Yes
    Cooling Fan
    Single
    Material Type
    Aluminum
    Finish
    Painted
    Color
    Black
    Sold in Quantity
    Each
  • 10683295-B-SP-Y
    Overall Width
    26.380"
    Overall Height
    22.000"
    Overall Thickness
    3.000"
    Core Width
    26.380"
    Core Height
    17.500" (17 1/2")
    Core Thickness
    2.130"
    Inlet Location
    Upper Left
    Outlet Location
    Lower Right
    Inlet Size
    1.500" (1 1/2")
    Outlet Size
    1.750" (1 3/4")
    Tube Size
    1.000"
    Tube Style
    Downflow
    Radiator Style
    Single Pass
    Row Quantity
    Dual
    Shroud
    Yes
    Transmission Cooler
    Yes
    Cooling Fan
    Single
    Material Type
    Aluminum
    Finish
    Painted
    Color
    Black
    Sold in Quantity
    Each
  • 10683295-P-DB-Y
    Overall Width
    26.380"
    Overall Height
    22.000"
    Overall Thickness
    3.000"
    Core Width
    26.380"
    Core Height
    17.500" (17 1/2")
    Core Thickness
    2.130"
    Inlet Location
    Upper Left
    Outlet Location
    Lower Right
    Inlet Size
    1.500" (1 1/2")
    Outlet Size
    1.750" (1 3/4")
    Tube Size
    1.000"
    Tube Style
    Downflow
    Radiator Style
    Single Pass
    Row Quantity
    Dual
    Transmission Cooler
    Yes
    Shroud
    Yes
    Cooling Fan
    Double
    Material Type
    Aluminum
    Finish
    Polished
    Sold in Quantity
    Each
  • 10683295-P-DP-N
    Overall Width
    26.380"
    Overall Height
    22.000"
    Overall Thickness
    3.000"
    Core Width
    26.380"
    Core Height
    17.500" (17 1/2")
    Core Thickness
    2.130"
    Inlet Location
    Upper Left
    Outlet Location
    Lower Right
    Inlet Size
    1.500" (1 1/2")
    Outlet Size
    1.750" (1 3/4")
    Tube Size
    1.000"
    Tube Style
    Downflow
    Radiator Style
    Single Pass
    Row Quantity
    Dual
    Transmission Cooler
    No
    Shroud
    Yes
    Cooling Fan
    Double
    Material Type
    Aluminum
    Finish
    Polished
    Sold in Quantity
    Each
  • 10683295-P-DP-Y
    Overall Width
    26.380"
    Overall Height
    22.000"
    Overall Thickness
    3.000"
    Core Width
    26.380"
    Core Height
    17.500" (17 1/2")
    Core Thickness
    2.130"
    Inlet Location
    Upper Left
    Outlet Location
    Lower Right
    Inlet Size
    1.500" (1 1/2")
    Outlet Size
    1.750" (1 3/4")
    Tube Size
    1.000"
    Tube Style
    Downflow
    Radiator Style
    Single Pass
    Row Quantity
    Dual
    Transmission Cooler
    Yes
    Shroud
    Yes
    Cooling Fan
    Double
    Material Type
    Aluminum
    Finish
    Polished
    Sold in Quantity
    Each
  • 10683295-P-DS-N
    Overall Width
    26.380"
    Overall Height
    22.000"
    Overall Thickness
    3.000"
    Core Width
    26.380"
    Core Height
    17.500" (17 1/2")
    Core Thickness
    2.130"
    Inlet Location
    Upper Left
    Outlet Location
    Lower Right
    Inlet Size
    1.500" (1 1/2")
    Outlet Size
    1.750" (1 3/4")
    Tube Size
    1.000"
    Tube Style
    Downflow
    Radiator Style
    Single Pass
    Row Quantity
    Dual
    Transmission Cooler
    No
    Shroud
    Yes
    Cooling Fan
    Double
    Material Type
    Aluminum
    Finish
    Polished
    Sold in Quantity
    Each
  • 10683295-P-DS-Y
    Overall Width
    26.380"
    Overall Height
    22.000"
    Overall Thickness
    3.000"
    Core Width
    26.380"
    Core Height
    17.500" (17 1/2")
    Core Thickness
    2.130"
    Inlet Location
    Upper Left
    Outlet Location
    Lower Right
    Inlet Size
    1.500" (1 1/2")
    Outlet Size
    1.750" (1 3/4")
    Tube Size
    1.000"
    Tube Style
    Downflow
    Radiator Style
    Single Pass
    Row Quantity
    Dual
    Transmission Cooler
    Yes
    Shroud
    Yes
    Cooling Fan
    Double
    Material Type
    Aluminum
    Finish
    Polished
    Sold in Quantity
    Each
  • 10683295-P-NA-N
    Overall Width
    26.380"
    Overall Height
    22.000"
    Overall Thickness
    3.000"
    Core Width
    26.380"
    Core Height
    17.500" (17 1/2")
    Core Thickness
    2.130"
    Inlet Location
    Upper Left
    Outlet Location
    Lower Right
    Inlet Size
    1.500" (1 1/2")
    Outlet Size
    1.750" (1 3/4")
    Tube Size
    1.000"
    Tube Style
    Downflow
    Radiator Style
    Single Pass
    Row Quantity
    Dual
    Transmission Cooler
    No
    Shroud
    No
    Material Type
    Aluminum
    Finish
    Polished
    Sold in Quantity
    Each
  • 10683295-P-NA-Y
    Overall Width
    26.380"
    Overall Height
    22.000"
    Overall Thickness
    3.000"
    Core Width
    26.380"
    Core Height
    17.500" (17 1/2")
    Core Thickness
    2.130"
    Inlet Location
    Upper Left
    Outlet Location
    Lower Right
    Inlet Size
    1.500" (1 1/2")
    Outlet Size
    1.750" (1 3/4")
    Tube Size
    1.000"
    Tube Style
    Downflow
    Radiator Style
    Single Pass
    Row Quantity
    Dual
    Transmission Cooler
    Yes
    Shroud
    No
    Material Type
    Aluminum
    Finish
    Polished
    Sold in Quantity
    Each
  • 10683295-P-SP-N
    Overall Width
    26.380"
    Overall Height
    22.000"
    Overall Thickness
    3.000"
    Core Width
    26.380"
    Core Height
    17.500" (17 1/2")
    Core Thickness
    2.130"
    Inlet Location
    Upper Left
    Outlet Location
    Lower Right
    Inlet Size
    1.500" (1 1/2")
    Outlet Size
    1.750" (1 3/4")
    Tube Size
    1.000"
    Tube Style
    Downflow
    Radiator Style
    Single Pass
    Row Quantity
    Dual
    Transmission Cooler
    No
    Shroud
    Yes
    Cooling Fan
    Single
    Material Type
    Aluminum
    Finish
    Polished
    Sold in Quantity
    Each
  • 10683295-P-SP-Y
    Overall Width
    26.380"
    Overall Height
    22.000"
    Overall Thickness
    3.000"
    Core Width
    26.380"
    Core Height
    17.500" (17 1/2")
    Core Thickness
    2.130"
    Inlet Location
    Upper Left
    Outlet Location
    Lower Right
    Inlet Size
    1.500" (1 1/2")
    Outlet Size
    1.750" (1 3/4")
    Tube Size
    1.000"
    Tube Style
    Downflow
    Radiator Style
    Single Pass
    Row Quantity
    Dual
    Transmission Cooler
    Yes
    Shroud
    Yes
    Cooling Fan
    Single
    Material Type
    Aluminum
    Finish
    Polished
    Sold in Quantity
    Each
  • 10683295-P-SS-N
    Overall Width
    26.380"
    Overall Height
    22.000"
    Overall Thickness
    3.000"
    Core Width
    26.380"
    Core Height
    17.500" (17 1/2")
    Core Thickness
    2.130"
    Inlet Location
    Upper Left
    Outlet Location
    Lower Right
    Inlet Size
    1.500" (1 1/2")
    Outlet Size
    1.750" (1 3/4")
    Tube Size
    1.000"
    Tube Style
    Downflow
    Radiator Style
    Single Pass
    Row Quantity
    Dual
    Transmission Cooler
    No
    Shroud
    Yes
    Cooling Fan
    Single
    Material Type
    Aluminum
    Finish
    Polished
    Sold in Quantity
    Each
  • 10683295-P-SS-Y
    Overall Width
    26.380"
    Overall Height
    22.000"
    Overall Thickness
    3.000"
    Core Width
    26.380"
    Core Height
    17.500" (17 1/2")
    Core Thickness
    2.130"
    Inlet Location
    Upper Left
    Outlet Location
    Lower Right
    Inlet Size
    1.500" (1 1/2")
    Outlet Size
    1.750" (1 3/4")
    Tube Size
    1.000"
    Tube Style
    Downflow
    Radiator Style
    Single Pass
    Row Quantity
    Dual
    Transmission Cooler
    Yes
    Shroud
    Yes
    Cooling Fan
    Single
    Material Type
    Aluminum
    Finish
    Polished
    Sold in Quantity
    Each
  • 10683295-S-DB-N
    Overall Width
    26.380"
    Overall Height
    22.000"
    Overall Thickness
    3.190"
    Core Width
    26.380"
    Core Height
    17.500" (17 1/2")
    Core Thickness
    2.130"
    Inlet Location
    Upper Left
    Outlet Location
    Lower Right
    Inlet Size
    1.500" (1 1/2")
    Outlet Size
    1.750" (1 3/4")
    Tube Size
    1.000"
    Tube Style
    Downflow
    Radiator Style
    Single Pass
    Row Quantity
    Dual
    Transmission Cooler
    No
    Shroud
    Yes
    Cooling Fan
    Double
    Material Type
    Aluminum
    Finish
    Satin
    Sold in Quantity
    Each
  • 10683295-S-DB-Y
    Overall Width
    26.380"
    Overall Height
    22.000"
    Overall Thickness
    3.190"
    Core Width
    26.380"
    Core Height
    17.500" (17 1/2")
    Core Thickness
    2.130"
    Inlet Location
    Upper Left
    Outlet Location
    Lower Right
    Inlet Size
    1.500" (1 1/2")
    Outlet Size
    1.750" (1 3/4")
    Tube Size
    1.000"
    Tube Style
    Downflow
    Radiator Style
    Single Pass
    Row Quantity
    Dual
    Transmission Cooler
    Yes
    Shroud
    Yes
    Cooling Fan
    Double
    Material Type
    Aluminum
    Finish
    Satin
    Sold in Quantity
    Each
  • 10683295-S-DP-N
    Overall Width
    26.380"
    Overall Height
    22.000"
    Overall Thickness
    3.190"
    Core Width
    26.380"
    Core Height
    17.500" (17 1/2")
    Core Thickness
    2.130"
    Inlet Location
    Upper Left
    Outlet Location
    Lower Right
    Inlet Size
    1.500" (1 1/2")
    Outlet Size
    1.750" (1 3/4")
    Tube Size
    1.000"
    Tube Style
    Downflow
    Radiator Style
    Single Pass
    Row Quantity
    Dual
    Transmission Cooler
    No
    Shroud
    Yes
    Cooling Fan
    Double
    Material Type
    Aluminum
    Finish
    Satin
    Sold in Quantity
    Each
  • 10683295-S-DS-N
    Overall Width
    26.380"
    Overall Height
    22.000"
    Overall Thickness
    3.190"
    Core Width
    26.380"
    Core Height
    17.500" (17 1/2")
    Core Thickness
    2.130"
    Inlet Location
    Upper Left
    Outlet Location
    Lower Right
    Inlet Size
    1.500" (1 1/2")
    Outlet Size
    1.750" (1 3/4")
    Tube Size
    1.000"
    Tube Style
    Downflow
    Radiator Style
    Single Pass
    Row Quantity
    Dual
    Transmission Cooler
    No
    Shroud
    Yes
    Cooling Fan
    Double
    Material Type
    Aluminum
    Finish
    Satin
    Sold in Quantity
    Each
  • 10683295-S-SB-N
    Overall Width
    26.380"
    Overall Height
    22.000"
    Overall Thickness
    3.190"
    Core Width
    26.380"
    Core Height
    17.500" (17 1/2")
    Core Thickness
    2.130"
    Inlet Location
    Upper Left
    Outlet Location
    Lower Right
    Inlet Size
    1.500" (1 1/2")
    Outlet Size
    1.750" (1 3/4")
    Tube Size
    1.000"
    Tube Style
    Downflow
    Radiator Style
    Single Pass
    Row Quantity
    Dual
    Transmission Cooler
    No
    Shroud
    Yes
    Cooling Fan
    Single
    Material Type
    Aluminum
    Finish
    Satin
    Sold in Quantity
    Each
  • 10683295-S-SB-Y
    Overall Width
    26.380"
    Overall Height
    22.000"
    Overall Thickness
    3.190"
    Core Width
    26.380"
    Core Height
    17.500" (17 1/2")
    Core Thickness
    2.130"
    Inlet Location
    Upper Left
    Outlet Location
    Lower Right
    Inlet Size
    1.500" (1 1/2")
    Outlet Size
    1.750" (1 3/4")
    Tube Size
    1.000"
    Tube Style
    Downflow
    Radiator Style
    Single Pass
    Row Quantity
    Dual
    Transmission Cooler
    Yes
    Shroud
    Yes
    Cooling Fan
    Single
    Material Type
    Aluminum
    Finish
    Satin
    Sold in Quantity
    Each
  • 10683295-S-SP-N
    Overall Width
    26.380"
    Overall Height
    22.000"
    Overall Thickness
    3.190"
    Core Width
    26.380"
    Core Height
    17.500" (17 1/2")
    Core Thickness
    2.130"
    Inlet Location
    Upper Left
    Outlet Location
    Lower Right
    Inlet Size
    1.500" (1 1/2")
    Outlet Size
    1.750" (1 3/4")
    Tube Size
    1.000"
    Tube Style
    Downflow
    Radiator Style
    Single Pass
    Row Quantity
    Dual
    Transmission Cooler
    No
    Shroud
    Yes
    Cooling Fan
    Single
    Material Type
    Aluminum
    Finish
    Satin
    Sold in Quantity
    Each
  • 10683295-S-SP-Y
    Overall Width
    26.380"
    Overall Height
    22.000"
    Overall Thickness
    3.190"
    Core Width
    26.380"
    Core Height
    17.500" (17 1/2")
    Core Thickness
    2.130"
    Inlet Location
    Upper Left
    Outlet Location
    Lower Right
    Inlet Size
    1.500" (1 1/2")
    Outlet Size
    1.750" (1 3/4")
    Tube Size
    1.000"
    Tube Style
    Downflow
    Radiator Style
    Single Pass
    Row Quantity
    Dual
    Transmission Cooler
    Yes
    Shroud
    Yes
    Cooling Fan
    Single
    Material Type
    Aluminum
    Finish
    Satin
    Sold in Quantity
    Each
  • 10683295-S-SS-N
    Overall Width
    26.380"
    Overall Height
    22.000"
    Overall Thickness
    3.190"
    Core Width
    26.380"
    Core Height
    17.500" (17 1/2")
    Core Thickness
    2.130"
    Inlet Location
    Upper Left
    Outlet Location
    Lower Right
    Inlet Size
    1.500" (1 1/2")
    Outlet Size
    1.750" (1 3/4")
    Tube Size
    1.000"
    Tube Style
    Downflow
    Radiator Style
    Single Pass
    Row Quantity
    Dual
    Transmission Cooler
    No
    Shroud
    Yes
    Cooling Fan
    Single
    Material Type
    Aluminum
    Finish
    Satin
    Sold in Quantity
    Each
  • 10683295-F-DB-N
    MFG. Part #
    83295-F-DB-N
    Overall Width
    26.380"
    Overall Height
    17.410"
    Overall Thickness
    3.250" (3 1/4")
    Depth
    0.750" (3/4")
    Cooling Fan
    Double
    Hole Diameter
    12.000"
    Material Thickness
    0.080"
    Material Type
    Aluminum
    Finish
    Painted Black
    Hardware Included
    Yes
    Sold in Quantity
    Each
    Notes
    Includes fans. For AFCO radiator w/o trans cooler.
  • 10683295-F-DB-Y
    MFG. Part #
    83295-F-DB-Y
    Overall Width
    26.380"
    Overall Height
    17.410"
    Overall Thickness
    3.250" (3 1/4")
    Depth
    0.750" (3/4")
    Cooling Fan
    Double
    Hole Diameter
    12.000"
    Material Thickness
    0.080"
    Material Type
    Aluminum
    Finish
    Painted Black
    Hardware Included
    Yes
    Sold in Quantity
    Each
    Notes
    Includes fans. For AFCO radiator with trans cooler.
  • 10683295-F-DP-N
    MFG. Part #
    83295-F-DP-N
    Overall Width
    26.380"
    Overall Height
    17.410"
    Overall Thickness
    3.250" (3 1/4")
    Depth
    0.750" (3/4")
    Cooling Fan
    Double
    Hole Diameter
    12.000"
    Material Thickness
    0.080"
    Material Type
    Aluminum
    Finish
    Polished
    Hardware Included
    Yes
    Sold in Quantity
    Each
    Notes
    Includes fans. For AFCO radiator w/o trans cooler.
  • 10683295-F-DP-Y
    MFG. Part #
    83295-F-DP-Y
    Overall Width
    26.380"
    Overall Height
    17.410"
    Overall Thickness
    3.250" (3 1/4")
    Depth
    0.750" (3/4")
    Cooling Fan
    Double
    Hole Diameter
    12.000"
    Material Thickness
    0.080"
    Material Type
    Aluminum
    Finish
    Polished
    Hardware Included
    Yes
    Sold in Quantity
    Each
    Notes
    Includes fans. For AFCO radiator with trans cooler.
  • 10683295-F-DS-N
    MFG. Part #
    83295-F-DS-N
    Overall Width
    26.380"
    Overall Height
    17.410"
    Overall Thickness
    3.250" (3 1/4")
    Depth
    0.750" (3/4")
    Cooling Fan
    Double
    Hole Diameter
    12.000"
    Material Thickness
    0.080"
    Material Type
    Aluminum
    Finish
    Satin
    Hardware Included
    Yes
    Sold in Quantity
    Each
    Notes
    Includes fans. For AFCO radiator w/o trans cooler.
  • 10683295-F-DS-Y
    MFG. Part #
    83295-F-DS-Y
    Overall Width
    26.380"
    Overall Height
    17.410"
    Overall Thickness
    3.250" (3 1/4")
    Depth
    0.750" (3/4")
    Cooling Fan
    Double
    Hole Diameter
    12.000"
    Material Thickness
    0.080"
    Material Type
    Aluminum
    Finish
    Satin
    Hardware Included
    Yes
    Sold in Quantity
    Each
    Notes
    Includes fans. For AFCO radiator with trans cooler.
  • 10683295-F-SB-N
    MFG. Part #
    83295-F-SB-N
    Overall Width
    26.380"
    Overall Height
    17.410"
    Overall Thickness
    4.000"
    Depth
    0.750" (3/4")
    Cooling Fan
    Single
    Hole Diameter
    16.000"
    Material Thickness
    0.080"
    Material Type
    Aluminum
    Finish
    Painted Black
    Hardware Included
    Yes
    Sold in Quantity
    Each
    Notes
    Includes fan. For AFCO radiator w/o trans cooler.
  • 10683295-F-SB-Y
    MFG. Part #
    83295-F-SB-Y
    Overall Width
    26.380"
    Overall Height
    17.410"
    Overall Thickness
    4.000"
    Depth
    0.750" (3/4")
    Cooling Fan
    Single
    Hole Diameter
    16.000"
    Material Thickness
    0.080"
    Material Type
    Aluminum
    Finish
    Painted Black
    Hardware Included
    Yes
    Sold in Quantity
    Each
    Notes
    Includes fan. For AFCO radiator with trans cooler.
  • 10683295-F-SP-N
    MFG. Part #
    83295-F-SP-N
    Overall Width
    26.380"
    Overall Height
    17.410"
    Overall Thickness
    4.000"
    Depth
    0.750" (3/4")
    Cooling Fan
    Single
    Hole Diameter
    16.000"
    Material Thickness
    0.080"
    Material Type
    Aluminum
    Finish
    Polished
    Hardware Included
    Yes
    Sold in Quantity
    Each
    Notes
    Includes fan. For AFCO radiator w/o trans cooler.
  • 10683295-F-SP-Y
    MFG. Part #
    83295-F-SP-Y
    Overall Width
    26.380"
    Overall Height
    17.410"
    Overall Thickness
    4.000"
    Depth
    0.750" (3/4")
    Cooling Fan
    Single
    Hole Diameter
    16.000"
    Material Thickness
    0.080"
    Material Type
    Aluminum
    Finish
    Polished
    Hardware Included
    Yes
    Sold in Quantity
    Each
    Notes
    Includes fan. For AFCO radiator with trans cooler.
  • 10683295-F-SS-N
    MFG. Part #
    83295-F-SS-N
    Overall Width
    26.380"
    Overall Height
    17.410"
    Overall Thickness
    4.000"
    Depth
    0.750" (3/4")
    Cooling Fan
    Single
    Hole Diameter
    16.000"
    Material Thickness
    0.080"
    Material Type
    Aluminum
    Finish
    Satin
    Hardware Included
    Yes
    Sold in Quantity
    Each
    Notes
    Includes fan. For AFCO radiator w/o trans cooler.
  • 10683295-F-SS-Y
    MFG. Part #
    83295-F-SS-Y
    Overall Width
    26.380"
    Overall Height
    17.410"
    Overall Thickness
    4.000"
    Depth
    0.750" (3/4")
    Cooling Fan
    Single
    Hole Diameter
    16.000"
    Material Thickness
    0.080"
    Material Type
    Aluminum
    Finish
    Satin
    Hardware Included
    Yes
    Sold in Quantity
    Each
    Notes
    Includes fan. For AFCO radiator with trans cooler.
  • '62 Dart
  • '62-'64 Polara, 330, 440
  • '65-'76 Coronet
  • '65-'74 Satellite, Belvedere
  • '62-'64 Fury, Sport Fury, Savoy Belvedere
  • '67-'72 GTX
  • '68-'75 Road Runner
  • '68-'71 Super Bee
  • '66-'78 Charger
  • '69 Daytona
  • '70 Superbird
  • '75-'78 Fury (Salon/'75 Road Runner)
  • '70-'74 Barracuda, Cuda
  • '70-'74 Challenger (R/T, T/A, Rallye)
  • '61-'62 Lancer
  • '60-'76 Valiant
  • '63-'76 Dart
  • '64-'69 Barracuda
  • '70-'76 Duster
  • '71-'72 Demon

When selecting Finish and Fan Shroud Finish, here are the abbreviations:

Finish

    S = Satin
    B = Black
    P = Polished
    F = Fan & shroud only

Fan Shroud Finish

    NA = No Fan and Shroud
    SS = Single Fan, Satin
    SP = Single Fan, Polished
    SB = Single Fan, Black
    DS = Dual Fan, Satin
    DP = Dual Fan, Polished
    DB = Dual Fan, Black

Email this page
Close [x]
You can send this product by email to a friend!
Enter the required information in the spaces provided below. They will receive an Email with the picture of this product and a link back to our site.
Your Name:
Your Email:
Friends Name:
Friends Email:
Print Page
You May Also Be Interested In...
  • AFCO 80127FNP Mopar E-Body Performance Aluminum Radiator 24.25 x 19 In
    AFCO 80127FNP Mopar E-Body Performance Aluminum Radiator 24.25 x 19 In
    (1 Rating)
    Price: $410.99
    More Info
    AFCO 80127FNP Mopar E-Body Performance Aluminum Radiator 24.25 x 19 In
    x



    With 2 rows of 1" cores, AFCO Performance Series Radiators are perfect for the street, the strip, or anything in between. These crossflow radiators feature 2" mounting flanges which can be easily adapted to many applications. They are 100% TIG welded, 100% pressure tested and use no epoxy or sealers.
    Roughly fits:
    • 1970-74 Dodge Challenger (Big Block ONLY)
    • 1970-74 Plymouth Barracuda (Big Block ONLY)
    NOT a direct fit - measure your application. May  require some modifications and/or fabricating for proper fit.
    Mopar Radiator Installation Instructions (PDF)
    Fan/Shroud Assembly sold separately.
    Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.
  • AFCO Direct Fit
    AFCO Direct Fit '60-'78 Mopar A, B, E-Body Radiator, 26 x 22 Inch, Pass. Side Inlet
    Price: $371.99 - $1,234.99
    Sale Price: $235.99 - $1,234.99
    Up to $136.00 off
    More Info
    AFCO Direct Fit '60-'78 Mopar A, B, E-Body Radiator, 26 x 22 Inch, Pass. Side Inlet
    x



    AFCO's Direct Fit aluminum radiators will bolt directly into your  Chrysler A, B, or E-Body with no hassles. AFCO ensures that the bolt  holes will line up, cooling lines are in the proper locations, your  choice of either a driver's side or passenger side lower hose  application, and OEM fan shrouds and accessories bolt up with ease.  Plus, with two rows of 1" cores perfectly matched to the application,  this unit has the capacity to cool both Small Blocks and Big Blocks  (even with a power adder!).
    • 100% aluminum construction (no epoxy)
    • Furnace brazed core - 2 rows of 1" tubes
    • Tanks are made of .080” aluminum for strength and durability
    • TIG welded by skilled craftsmen in the USA
    • Factory fan shroud provisions
    • Inlets and outlets are factory-style and in stock locations
    • Billet filler necks feature screw-in bleed – won't crack or leak with age
    • Factory pressure-tested
    Instructions (PDF)
    Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.
  • AFCO Direct Fit
    AFCO Direct Fit '60-'78 Mopar A, B, E-Body Rad, 22 x 22 Inch, Driver Side Inlet
    Price: $371.99 - $1,234.99
    Sale Price: $235.99 - $1,234.99
    Up to $136.00 off
    More Info
    AFCO Direct Fit '60-'78 Mopar A, B, E-Body Rad, 22 x 22 Inch, Driver Side Inlet
    x



    AFCO's Direct Fit aluminum radiators will bolt directly into your Chrysler A, B, or E-Body with no hassles. AFCO ensures that the bolt holes will line up, cooling lines are in the proper locations, your choice of either a driver's side or passenger side lower hose application, and OEM fan shrouds and accessories bolt up with ease. Plus, with two rows of 1" cores perfectly matched to the application, this unit has the capacity to cool both Small Blocks and Big Blocks (even with a power adder!).
    • 100% aluminum construction (no epoxy)
    • Furnace brazed core - 2 rows of 1" tubes
    • Tanks are made of .080” aluminum for strength and durability
    • TIG welded by skilled craftsmen in the USA
    • Factory fan shroud provisions
    • Inlets and outlets are factory-style and in stock locations
    • Billet filler necks feature screw-in bleed – won't crack or leak with age
    • Factory pressure-tested
    Instructions (PDF)
    Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.
