AFCO Direct Fit '60-'78 Mopar A, B, E-Body Rad, 22 x 22 Inch, Driver Side Inlet

Free Shipping Free Shipping
Specs
Material Type:
Aluminum
Tube Style:
Downflow
Sold in Quantity:
Each
Row Quantity:
Dual
Finish:
-
Inlet Location:
Upper Left
Outlet Location:
Lower Right
Radiator Style:
Single Pass
MFG. Part #:
-
Transmission Cooler:
-
Shroud:
-
Overall Height:
22.00
Overall Width:
22.13
Overall Thickness:
-
Inlet Size:
1.50
Core Height:
17.50
Core Width:
21.88
Core Thickness:
2.25
Tube Size:
1.00
Filler Neck Height:
1.00
Color:
Black
Cooling Fan:
-
Notes
1/4" NPT fitting for drain plug. 1.38" mounting flanges on both sides.

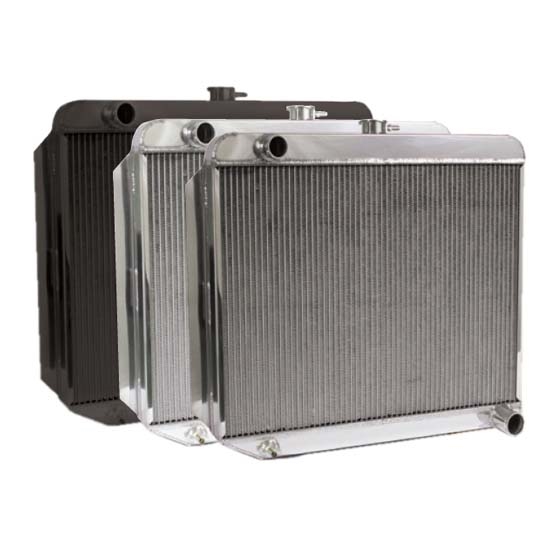

AFCO Direct Fit '60-'78 Mopar A, B, E-Body Rad, 22 x 22 Inch, Driver Side Inlet
AFCO Direct Fit '60-'78 Mopar A, B, E-Body Rad, 22 x 22 Inch, Driver Side Inlet
AFCO Direct Fit '60-'78 Mopar A, B, E-Body Rad, 22 x 22 Inch, Driver Side Inlet
VIDEO
AFCO Direct Fit '60-'78 Mopar A, B, E-Body Rad, 22 x 22 Inch, Driver Side Inlet

Click image to enlarge

Details

Reviews (0)

Q & A (1)

What's in the Box

Info

AFCOs Direct Fit aluminum radiators will bolt directly into your Chrysler A, B, or E-Body with no hassles. AFCO ensures that the bolt holes will line up, cooling lines are in the proper locations, your choice of either a drivers side or passenger side lower hose application, and OEM fan shrouds and accessories bolt up with ease. Plus, with two rows of 1" cores perfectly matched to the application, this unit has the capacity to cool both Small Blocks and Big Blocks (even with a power adder!).

  • 100% aluminum construction (no epoxy)
  • Furnace brazed core - 2 rows of 1" tubes
  • Tanks are made of .080” aluminum for strength and durability
  • TIG welded by skilled craftsmen in the USA
  • Factory fan shroud provisions
  • Inlets and outlets are factory-style and in stock locations
  • Billet filler necks feature screw-in bleed – wont crack or leak with age
  • Factory pressure-tested

Instructions (PDF)

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance



Item Details

Driver Side Inlet

Application

  • '62 Dart
  • '62-'64 Polara, 330, 440
  • '65-'76 Coronet
  • '65-'74 Satellite, Belvedere
  • '62-'64 Fury, Sport Fury, Savoy Belvedere
  • '67-'72 GTX
  • '68-'75 Road Runner
  • '68-'71 Super Bee
  • '66-'78 Charger
  • '69 Daytona
  • '70 Superbird
  • '75-'78 Fury (Salon/'75 Road Runner)
  • '70-'74 Barracuda, Cuda
  • '70-'74 Challenger (R/T, T/A, Rallye)
  • '61-'62 Lancer
  • '60-'76 Valiant
  • '63-'76 Dart
  • '64-'69 Barracuda
  • '70-'76 Duster
  • '71-'72 Demon

Notes

When selecting Finish and Fan Shroud Finish, here are the abbreviations:

Finish

    S = Satin
    B = Black
    P = Polished

Fan Shroud Finish

    NA = No Fan and Shroud
    SS = Single Fan, Satin
    SP = Single Fan, Polished
    SB = Single Fan, Black
    DS = Dual Fan, Satin
    DP = Dual Fan, Polished
    DB = Dual Fan, Black

Customer Reviews

This product has no reviews.

Product Q&A

1 questions : 1 answers

1 answers

What are the specs of the dual electric fan that is offered with the 10683296 radiator? What are the overall dimensions of the assembly?

Reid
New Prague, MN
March 03, 2012

What are the specs of the dual electric fan that is offered with the 10683296 radiator? What are the overall dimensions of the assembly?

Answers

March 07, 2012
John
Part number 9174007 * Total Height: 17-1/4" * Total Length: 22-1/8" * Total Depth: 2-5/8" * Total CFM: 1594 * Total Amp Draw: 16
