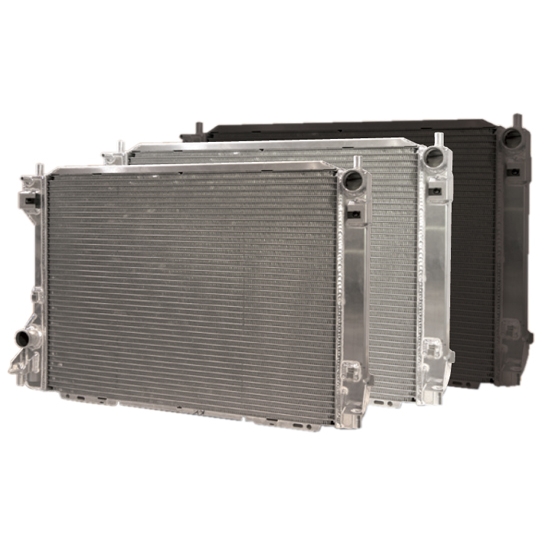

AFCO Direct Fit 2005-'10 Mustang Radiators
AFCO Direct Fit 2005-'10 Mustang Radiators

AFCO Direct Fit 2005-'10 Mustang Radiators

0 Reviews | 0 Answered Questions
Out of Stock
More Like This
AFCO Direct Fit 2005-'10 Mustang Radiators
Image Gallery
AFCO Direct Fit 2005-'10 Mustang Radiators AFCO Direct Fit 2005-'10 Mustang Radiators AFCO Direct Fit 2005-'10 Mustang Radiators
AFCO Direct Fit 2005-'10 Mustang Radiators
Zoomed In Image
Part # 10681281
Starting from
$517.99
each
Quantity:
Trans Cooler
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • This product is discontinued.
  • This item ships directly from the manufacturer. It may take an additional 30 business days for AFCO to ship this item.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Radiator Style:
Single Pass
Material Type:
Aluminum
Inlet Location:
Upper Right
Outlet Location:
Lower Left
Shroud:
Select Trans Cooler/Finish/Fan/shroud Finish to see
Finish:
Select Trans Cooler/Finish/Fan/shroud Finish to see
Overall Width:
28.94"
Overall Height:
19.69"
Overall Thickness:
3.19"
Core Height:
18.50"
Core Width:
24.44"
Core Thickness:
2.25"
Inlet Size:
1.50"
Tube Size:
1.00"
Tube Style:
Crossflow
Row Quantity:
Dual
Transmission Cooler:
No
Shroud finish:
Select Trans Cooler/Finish/Fan/shroud Finish to see
Cooling Fan:
Select Trans Cooler/Finish/Fan/shroud Finish to see
Color:
Black
Sold in Quantity:
Each

Info

If your 4.6L is supercharged or turbocharged, this is your radiator! AFCO's Direct Fit Aluminum radiators will bolt directly into your GT with no hassles. AFCO ensures that the bolt holes will line up, cooling lines are in the proper locations, and OEM fan shrouds and accessories bolt up with ease. Plus, with two rows of 1" cores perfectly matched to the application, this unit has the capacity to cool any high performance engine.

For 2005-'10 V8 Ford Mustangs

  • 100% Aluminum construction (no epoxy)
  • Furnace Brazed Core - 2 rows of 1" tubes
  • Tanks are made of .080” 3003 aluminum for strength and durability
  • TIG welded by skilled craftsmen in the USA
  • Factory fan shroud provisions
  • Inlets and outlets are factory-style and in stock locations
  • Factory pressure-tested
  • Billet filler necks feature screw-in bleed – won't crack or leak with age

Instructions (PDF)

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.





Notes

When selecting Finish, Fan/Shroud Finish, and Trans Cooler, here are the abbreviations:

Finish:

  • S = Satin Std
  • B = Black
  • P = Polished

Fan Shroud Finish

  • NA = No Fan and Shroud Std.
  • SS = Single Fan, Satin
  • SP = Single Fan, Polished
  • SB = Single Fan, Black
  • DS = Dual Fan, Satin
  • DP = Dual Fan, Polished
  • DB = Dual Fan, Black

Trans Cooler

  • N = No
  • Y = Yes
