AFCO Direct Fit 1979-93 Mustang Radiators

Free Shipping Free Shipping
AFCO Direct Fit 1979-93 Mustang Radiators
AFCO Direct Fit 1979-93 Mustang Radiators
AFCO Direct Fit 1979-93 Mustang Radiators
VIDEO
AFCO Direct Fit 1979-93 Mustang Radiators

Click image to enlarge

Details

Reviews (0)

Q & A (1)

What's in the Box

Info

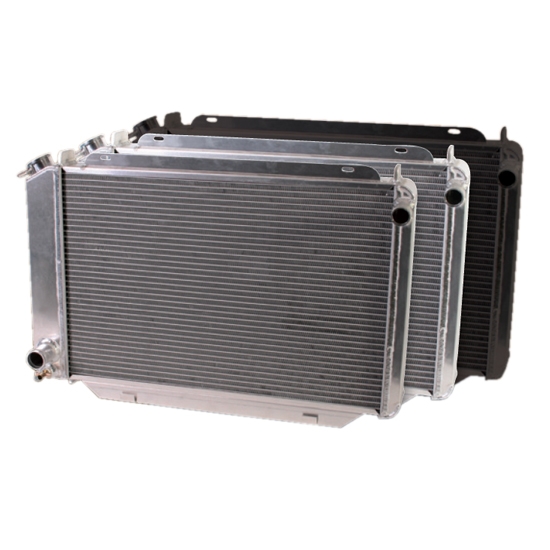

AFCO's Direct Fit Aluminum radiators will bolt directly into your Fox Body Mustang with no hassles. AFCO ensures that the bolt holes will line up, cooling lines are in the proper locations, and OEM fan shrouds and accessories bolt up with ease. Plus, with two rows of 1" cores perfectly matched to the application, this unit has the capacity to cool anything from a stock 5.0L to a stroked-out Small Block Windsor (even with a power adder!).

  • 100% Aluminum construction (no epoxy)
  • Furnace Brazed Core - 2 rows of 1" tubes
  • Tanks are made of .080” 3003 aluminum for strength and durability
  • TIG welded by skilled craftsmen in the USA
  • Factory fan shroud provisions
  • Inlets and outlets are factory-style and in stock locations
  • Billet filler necks feature screw-in bleed – won't crack or leak with age

For 1979-1993 Ford Mustang V-8.

Instructions (PDF)

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance

Notes

When selecting Finish, Fan/Shroud Finish, and Trans Cooler, here are the abbreviations:

Finish:

  • S = Satin Std
  • B = Black
  • P = Polished

Fan Shroud Finish

  • NA = No Fan and Shroud Std.
  • SS = Single Fan, Satin
  • SP = Single Fan, Polished
  • SB = Single Fan, Black
  • DS = Dual Fan, Satin
  • DP = Dual Fan, Polished
  • DB = Dual Fan, Black

Trans Cooler

  • N = No
  • Y = Yes

Specs

  • 28-3/4 x 16-7/8 Inches
  • Core Thickness:  2-1/4"
  • Inlet Diameter:  1-1/4" O.D.
  • Outlet Diameter:  1-1/2" O.D.
  • Brass Drain Cock Fitting:  1/4" NPT (included)
  • Transmission Cooler Ports:  1/4" NPT
  • Filler Neck Hose Barb:  1/8" Straight (included)

Customer Reviews

This product has no reviews.

Product Q&A

1 questions : 1 answers

1 answers

Does this assembly come with the fans as shown in the photo? What about applicable mounting hardware for fan to shroud and shroud to radiator? I sure hope for the $1200 price tag? If so does it come pre assembled? Thanks Ryan

86 Fox Coyote Swap
Charlotte, NC
April 10, 2016

Does this assembly come with the fans as shown in the photo? What about applicable mounting hardware for fan to shroud and shroud to radiator? I sure hope for the $1200 price tag? If so does it come pre assembled? Thanks Ryan

Answers

April 11, 2016
Eric
Expert
If you order the fan and shroud option then it will come with the electric fan and fan shroud installed. These are a direct fit radiator that bolts to the existing radiator mounts.
